Product Details
Place of Origin: China
Brand Name: WEYO
Model Number: HAP
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Based on oroiect reauirements
Packaging Details: Customized packaging to protect products
Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders
Payment Terms: L/C, T/T
Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts
|
Nominal Diameter:
|
3/4″, 20～300mm
|
Nominal Pressure:
|
PN1.6MPa (6.4MPa For 3/4″)
|
Connection Type:
|
Flanged Type In Accordance With JB/T79.1 PN1.6MPa; JB/T79.2 With Male And Female Faces
|
Material:
|
ZG1Cr18Ni9, ZG0Cr17Ni12Mo2
|
Upper Valve Bonnet:
|
Low-temperature Type -1, -2: -100～-60℃ -3, -4: -200～-100℃ -5, -6: -250～-200℃
|
Packing:
|
V-type Polytetrafluoroethylene Packing
|
|
Nominal Diameter:
|
3/4″, 20～300mm
|
|
Nominal Pressure:
|
PN1.6MPa (6.4MPa For 3/4″)
|
|
Connection Type:
|
Flanged Type In Accordance With JB/T79.1 PN1.6MPa; JB/T79.2 With Male And Female Faces
|
|
Material:
|
ZG1Cr18Ni9, ZG0Cr17Ni12Mo2
|
|
Upper Valve Bonnet:
|
Low-temperature Type -1, -2: -100～-60℃ -3, -4: -200～-100℃ -5, -6: -250～-200℃
|
|
Packing:
|
V-type Polytetrafluoroethylene Packing
|
HAP Pneumatic Diaphragm Low-Temperature Single-Seat Control Valve
HAP pneumatic diaphragm single-seat control valves are widely used in industrial sectors such as air separation equipment, oxygen generators, petroleum, chemical industry, metallurgy, and power stations. They control the flow of low-temperature media and are suitable for occasions with strict requirements on leakage.
| Flow coefficient is shown in Tables 1 and 2 Table 1 | |||||||||||||||||
| Nominal diameter (mm) |
20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||||
| seat diameter (mm) |
10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| flow coefficient Kv |
single seat | 1.2 | 2 | 3.2 | 5 | 8 | 12 | 20 | 32 | 50 | 80 | 120 | 200 | 280 | 450 | 700 | 1100 |
| Table 2 | ||||||
| Nominal diameter | 3/4″ | |||||
| seat diameter(mm) | 3 | 4 | 5 | 6 | 7 | 8 |
| flow coefficient Kv | 0.08 | 0.12 | 0.2 | 0.32 | 0.5 | 0.8 |
| Allowable pressure difference is shown in Table 3 (flow-opening state, P2=0 when closed) Table 3 | ||||||||||||||||||
| Supply pressure MPa |
spring range MPa |
allowable pressure difference(MPa) | ||||||||||||||||
| 20 | nominal diameter or seat diameter(mm) | |||||||||||||||||
| 3/4 | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
| 0.14 | 0.02～0.10 | 6.4 | 8.2 | 5.7 | 3.7 | 2 | 0.88 | 0.61 | 0.39 | 0.23 | 0.26 | 0.17 | 0.1 | 0.11 | 0.08 | 0.05 | 0.041 | 0.028 |
| 0.28 | 0.08～0.24 | 11.5 | 8.7 | 4.8 | 2.1 | 1.42 | 0.9 | 0.54 | 0.61 | 0.41 | 0.24 | 0.27 | 0.18 | 0.11 | 0.096 | 0.066 | ||
| actuator | ZM1 | HA2 | HA3 | HA4 | VA5 | |||||||||||||
| effective diaphragm area (cm2) |
200 | 310 | 550 | 950 | 1300 | |||||||||||||
| stroke(mm) | 10 | 16 | 25 | 40 | 60 | 100 | ||||||||||||

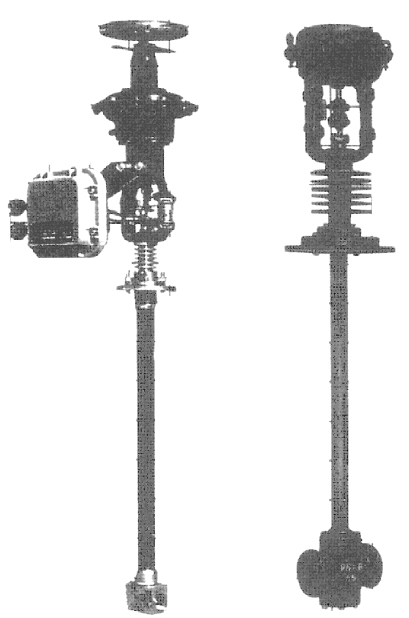

Low-temperature single-seat control valve (DN20～300mm) low-temperature single-seat control valve (DN3/4″)
Overall dimensions are shown in Tables 4, 5 and the figure.
| Table 4 Unit: mm | ||||||
| Nominal diameter | 3/4″ | |||||
| seat diameter | 3 | 4 | 5 | 6 | 7 | 8 |
| overall dimensions | H2 | H | ||||
| -100℃ | -200℃ | -250℃ | -100℃ | -200℃ | -250℃ | |
| 600 | 700 | 800 | 799 | 899 | 999 | |
| Low-temperature single-seat control valve (DN20～300mm) Table 5 Unit: mm | |||||||||||||||||
| Nominal diameter | A | H1 | H2 | H | φ | C | actuator | ||||||||||
| -100℃ | -200℃ | -250℃ | -100℃ | -200℃ | -250℃ | ||||||||||||
| -1 | -2 | -3 | -4 | -5 | -6 | -1 | -2 | -3 | -4 | -5 | -6 | ||||||
| 20 | 180 | 91 | 500 | 600 | 700 | 800 | 900 | 1000 | 1063 | 1163 | 1263 | 1363 | 1463 | 1563 | 280 | 281 | HA2 |
| 25 | 185 | 112 | |||||||||||||||
| 32 | 200 | 118 | |||||||||||||||
| 40 | 220 | 134 | 320 | ||||||||||||||
| 50 | 250 | 154 | |||||||||||||||
| 65 | 275 | 178 | 600 | 700 | 800 | 900 | 1248 | 1348 | 1448 | 1548 | 1648 | 1748 | 380 | 363 | |||
| 80 | 300 | 191 | |||||||||||||||
| 100 | 350 | 195 | 470 | ||||||||||||||
| 125 | 410 | 243 | 700 | 800 | 900 | 1000 | 1611 | 1711 | 1811 | 1911 | 2011 | 2111 | 540 | 520 | HA4 | ||
| 150 | 450 | 251 | 580 | ||||||||||||||
| 200 | 550 | 290 | 680 | ||||||||||||||
| 250 | 670 | 380 | 800 | 900 | 1000 | 1300 | 2535 (2665) |
2635 (2765) |
2735 (2865) |
2835 (2965) |
840 | VA5 | |||||
| 300 | 770 | 435 | 950 | ||||||||||||||
| Note: The values in parentheses in the table are the data for the reverse-acting actuator. | |||||||||||||||||
| Ordering Instructions |
