HAA General Purpose Angle Valve

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: HAA

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Based on oroiect reauirements

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: L/C, T/T

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    200mm angle valve, 6.4mpa angle valve, 200mm angle control valve


Type:	Single-seat Cast Spherical Angle Valve	Nominal Diameter:	40～200mm
Nominal Pressure:	ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa	Connection Type:	Flanged: FF, RF, RJ, LG Standards: ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2 (male-female Face)
Materials:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti	Upper Bonnet:	Normal Temperature Type (P): -17～+230℃ Extended Type Ⅰ (E1): -45～-17℃, +230～+566℃ Extended Type Ⅱ (E2): Integral Type (E2I): -100～-45℃ Welded Type (E2W): -196～-100℃ Bellows Seal (B): Welded Type (BD): -50～+350℃ Formed Type (BF): -30～+300℃
Gland Type:	Bolt Compression Type	Packing:	V-type PTFE Packing, Impregnated PTFE Asbestos Packing, Asbestos Braided Packing

Type:	Single-seat Cast Spherical Angle Valve
Nominal Diameter:	40～200mm
Nominal Pressure:	ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
Connection Type:	Flanged: FF, RF, RJ, LG Standards: ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2 (male-female Face)
Materials:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti
Upper Bonnet:	Normal Temperature Type (P): -17～+230℃ Extended Type Ⅰ (E1): -45～-17℃, +230～+566℃ Extended Type Ⅱ (E2): Integral Type (E2I): -100～-45℃ Welded Type (E2W): -196～-100℃ Bellows Seal (B): Welded Type (BD): -50～+350℃ Formed Type (BF): -30～+300℃
Gland Type:	Bolt Compression Type
Packing:	V-type PTFE Packing, Impregnated PTFE Asbestos Packing, Asbestos Braided Packing

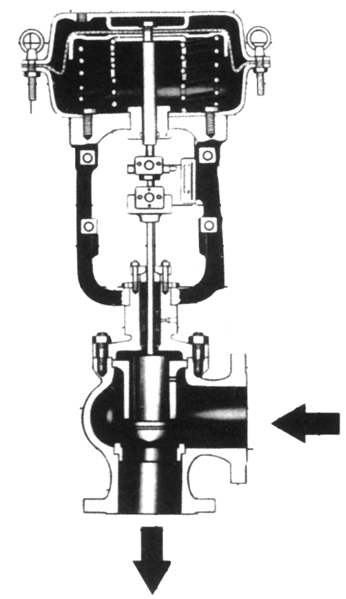

HAA General Purpose Angle Valve

The HAA general purpose angle valve is a top-guided control valve. It features a compact valve body structure, low pressure drop loss, large flow rate, a wide adjustable range, and high precision of flow characteristic curves.

The valve core has a large guiding area and excellent vibration resistance. The control valve is paired with a multi-spring diaphragm actuator, which has a compact structure and large output force.

Cv value and stroke: see Table 1 Table 1
Nominal diameter (mm)		40			50			65			80			100			150			200
Valve seat diameter (mm)		25	32	40	32	40	50	40	50	65	50	65	80	65	80	100	100	125	150	125	150	200
Rated Cv value	High-precision valve core	10	17	24	17	24	44	24	44	68	44	68	99	68	99	175	175	275	360	275	360	640
	High-capacity valve core			30			50			85			125			200			420			700
	Quick-opening valve core			35			55			95			135			220			460			720
Rated stroke (mm)	Other valve cores	25						38									50			75
Rated stroke (mm)	Quick-opening valve core	10			13			19						25			30			50
Note: The flow characteristic of the high-precision valve core conforms to IEC534-2.

Allowable pressure difference
Ⅰ. Metal seat, plunger valve core (see Tables 2-4)

A. Equipped with HA or VA actuator Air-to-close valve (Table 2)
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve differential diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2D	0.14	0.02～0.10	With or With out	0.63 3.16 4 9.4	0.38 1.93 4 5.7	0.27 1.37 4 4.1	0.16 0.78 2.17	0.1	0.07	0.05	-	-	-
	0.16	0.02～0.10	With					0.51	0.35	0.2	-	-	-
	0.4	0.08～0.24	With					1.49	1.05	0.59	-	-	-
HA3D	0.14	0.02～0.10	With or With out	1.12	0.68	0.48	0.28	0.17 0.88 2.65	0.12 0.62 1.87	0.07 0.35 1.05	0.04 0.22 0.67	0.03 0.14 0.41	-
	0.16	0.02～0.10	With	4 5.6	3.42	2.42	1.4						-
	0.4	0.08～0.24	With	4 10	4 10	4 7.2	4 4.2						-
HA4D	0.14	0.02～0.10	With or With out	-	-	0.83	0.48	0.3	0.22	0.12	0.07	0.05	0.03
	0.16	0.02～0.10	With	-	-	4	2.42	1.52	1.07	0.61	0.39	0.24	0.15
	0.4	0.08～0.24	With	-	-	4 10	4 7.2	4 4.5	3.22	1.82	1.16	0.71	0.45
VA5D	0.14	0.02～0.10	With or With out	-	-	-	-	0.42	0.29	0.16	0.11	0.06	0.04
VA5D	0.16	0.02～0.10	With	-	-	-	-	2.08	1.47	0.83	0.53	0.32	0.21

Air-to-open valve (Table 3)
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve differential diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2R	0.14	0.02～0.10	With or With out	0.63	0.38	0.27	0.16	0.1	0.07	0.05	-	-	-
HA2R	0.28	0.08～0.24	With	4 4.4	2.7	1.41	1.11	0.69	0.49	0.28	-	-	-
HA3R	0.14	0.02～0.10	With or With out	1.12	0.68	0.48	0.28	0.17	0.12	0.07	0.04	0.03	-
HA3R	0.28	0.08～0.24	With	4 7.8	4 4.7	3.4	1.96	1.23	0.87	0.49	0.31	0.19	-
HA4R	0.14	0.02～0.10	With or With out	-	-	0.84	0.48	0.3	0.22	0.12	0.07	0.05	0.03
HA4R	0.28	0.08～0.24	With	-	-	4 5.8	3.15	2.13	1.5	0.85	0.54	0.33	0.21
VA5R	0.14	0.02～0.10	With or With out	-	-	-	-	0.42	0.29	0.17	0.11	0.06	0.04
VA5R	0.28	0.08～0.24	With	-	-	-	-	2.92	2.06	1.16	0.74	0.45	0.29
VA6R	0.40(*1)	0.19～0.35	With	-	-	-	-	4 6.1	4 4.3	2.42	-	-	-
VA6R	0.50(*2)	0.19～0.40	With	-	-	-	-	-	-	2.42	1.55	0.95	-
Notes: The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201. In the same cell, the number above represents the allowable pressure difference when the valve is fully open, and the number below represents the allowable pressure difference when the valve is closed. 1 Applicable to valves with DN65, 80, and 100mm. 2 Applicable to valves with DN150mm.

B. Valves equipped with VP actuators (see Table 4, Table 4)
Actuator	Supply pressure (MPa)	Positioner (MPa)	Allowable pressure difference (MPa)
			Valve seat diameter (mm)
			65	80	100	125	150	200
VP5	0.3	With	4 5.2	3.68	2.07	1.32	0.8	-
	0.4	With	4 7	4.0 4.9	2.78	1.78	1.08	-
	0.5	With	4 8.8	4 6.2	3.49	2.24	1.36	-
VP6	0.3	With	4 9.3	4 6.5	3.69	2.36	1.44	0.92
	0.4	With	4 10	4 8.8	4 4.9	3.18	1.93	1.24
	0.5	With	4 10	4 10	4 6.2	4	2.43	1.56
VP7	0.3	With	-	-	-	3.55	2.16	1.38
	0.4	With	-	-	-	4 4.7	2.9	1.86
	0.5	With	-	-	-	4 6	3.64	2.34
Notes: If the actuator is equipped with an auxiliary air supply, the smaller one of the two supply pressures shall be selected as the basis for calculating the allowable pressure difference. The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201 standards. In the same cell, the number above represents the allowable pressure difference when the valve is fully open, and the number below represents the allowable pressure difference when the valve is closed.

Ⅱ. Soft Seat Plunger Valve Core

A. Valves equipped with HA or VA actuators (see Tables 5 and 6)

Air-to-close valve (Table 5)
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference(MPa)
				Valve seat diameter(mm)
				25	32	40	50	65	80	100	125	150	200
HA2D	0.14	0.02～0.10	With or With out	0.44	0.27	0.19	0.11	0.07	0.05	0.03	-	-	-
	0.16	0.02～0.10	With	2.2	1.35	0.96	0.55	0.36	0.25	0.14	-	-	-
	0.4	0.08～0.24	With	3	3	2.8	1.5	1.04	0.74	0.41	-	-	-
HA3D	0.14	0.02～0.10	With or With out	0.78	0.48	0.34	0.2	0.12	0.08	0.05	0.03	0.02	-
	0.16	0.02～0.10	With	3	2.4	1.7	0.98	0.62	0.43	0.25	0.15	0.09	-
	0.4	0.08～0.24	With	3	3	3	2.8	1.8	1.3	0.74	0.47	0.29	-
HA4D	0.14	0.02～0.10	With or With out	-	-	0.58	0.34	0.21	0.15	0.08	0.05	0.03	0.02
	0.16	0.02～0.10	With	-	-	2.8	1.7	1.06	0.75	0.43	0.27	0.17	0.1
	0.4	0.08～0.24	With	-	-	3	3	3	2.2	1.27	0.81	0.5	0.31
VA5D	0.14	0.02～0.10	With or With out	-	-	-	-	0.29	0.2	0.11	0.08	0.04	0.03
VA5D	0.16	0.02～0.10	With	-	-	-	-	1.46	1.03	0.58	0.37	0.22	0.15

Air-to-open valve (Table 6)
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve seat diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2R	0.14	0.02～0.10	With or With out	0.44	0.27	0.19	0.11	0.07	0.05	0.03	-	-	-
HA2R	0.28	0.08～0.24	With	3	1.9	0.99	0.78	0.48	0.34	0.2	-	-	-
HA3R	0.14	0.02～0.10	With or With out	0.78	0.48	0.34	0.2	0.12	0.08	0.05	0.03	0.02	-
HA3R	0.28	0.08～0.24	With	3	3	2.38	1.37	0.86	0.61	0.34	0.21	0.13	-
HA4R	0.14	0.02～0.10	With or With out	-	-	0.58	0.34	0.21	0.15	0.08	0.05	0.03	0.02
HA4R	0.28	0.08～0.24	With	-	-	3	2.2	1.49	1.05	0.59	0.37	0.23	0.14
VA5R	0.14	0.02～0.10	With or With out	-	-	-	-	0.29	0.2	0.11	0.08	0.04	0.03
VA5R	0.28	0.08～0.24	With	-	-	-	-	2.04	1.44	0.81	0.51	0.31	0.2
VA6R	0.40(*1)	0.19～0.35	With	-	-	-	-	3	3	1.69	-	-	-
VA6R	0.50(*2)	0.19～0.40	With	-	-	-	-	-	-	1.69	1.08	0.67	-
