HSC sleeve single-seat control valve

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: HSC

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Based on oroiect reauirements

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Chat now
Highlight:

Control Valves

,

single seated control valve

,

single seated valve

HSC sleeve single-seat control valve

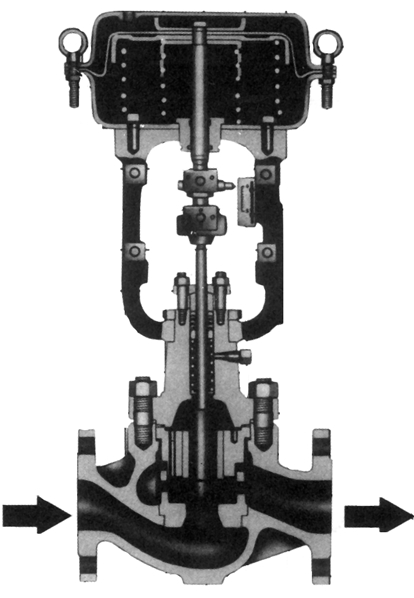

The HSC sleeve single-seat control valve is a high-performance single-seat control valve, suitable for occasions where high pressure difference causes flashing and cavitation. The robust sleeve protects the valve body from damage caused by flashing and cavitation. The fluid channel of the valve body is in an S streamlined shape, featuring small pressure drop loss, large flow rate and a wide adjustable range. The valve core has a large guiding area and good vibration resistance. The control valve is equipped with a multi-spring diaphragm actuator, which has a compact structure and large output force.



Cv value and stroke are shown in Table 1. Table 1
Nominal diameter(mm) 40 50 65 80 100 150 200
Valve seat diameter(mm)     25   25 32 25 32 40 32 40 50 40 50 65 65 80 100 80 100 125
Rated Cv value 4.0 6.3 12 6.3 12 21 12 21 30 21 30 50 30 50 85 85 125 200 125 200 310
Rated stroke(mm) 25 38 50 75





Flow characteristic curve

HSC sleeve single-seat control valve 0

Equal percentage characteristic (% metal seat)                               Linear characteristic (L metal seat)



Allowable pressure difference is shown in Tables 2~4

A. Valves equipped with HA or VA actuators are shown in Tables 2 and 3

Air-to-close valves are shown in Table 2

Actuator Supply pressure
(MPa)
Spring range
(MPa)
Positioner Allowable pressure difference (MPa) Nominal diameter × Valve seat diameter or Cv value
40 50 65 80 100 150 200
Cv
4.0
Cv
6.3
25 Cy
6.3
25 32 25 32 40 32 40 50 40 50 65 65 80 100 80 100 125
HA2D 0.14 0.02~0.10 With or without 2 1 0.63 I 0.63 0.38 0.63 0.38 0.27 0.38 0.27 0.16 0.27 0.16 0.10
0.16 0.02~0.10 With 4
10
4
5.4
3.16 4
5.4
3.16 1.93 3.16 1.93 1.37 1.93 1.37 0.78 1.37 0.78 0.51
0.40 0.08-0.24 With 4
10
4
10
4
9.4
4
10
4
9.4
4
5.7
4
9.4
4
5.7
4
4.1
4
5.7
4
4.1
2.17 4
4.1
2.17 1.49
HA3D 0.14 0.02-0.10 With or without 3.5 1.9 112 1.9 1.12 0.68 1.12 0.68 0.48 0.68 0.48( 0.28 0.48 0.28 0.17 0.17 0.12 0.07
0.16 0.02~0.10 With 4
10
4
9.7
4
5.6
4
9.7
4
5.6
3.42 4
5.6
3.42 2.42 342 2.42 1.4 2.42 1.4 0.88 0.88 0.62 0.35
0.40 0.08-0.24 With 4
10
4
10
4
10
4
10
4
10
4
7.2
4
10
4
7.2
4
4.2
4
7.2
4
4.2
2.65 2.65 1.87 1.05
HA4D 0.14 0.02-0.10 With or without   1.9 1.1 0.83 1.1 0.83 0.48 0.83 0.48 0.30 0.30 0.22 0.12 0.22 0.12 0.07
0.16 0.02~0.10 With 4
9.6
4
5.9
4 4
5.9
4 2.42 4 2.42 1.52 .52 1.07 0.61 1.07 0.61 0.39
0.40 0.08-0.24 With 4
10
4
10
4
10
4
10
4
10
4
7.2
4
10
4
7.2
4
4.5
4
4.5
3.22 1.82 3.22 1.82 1.16
VA5D 0.14 0.02-0.10 With or without   2.6 1.6 1.1 1.6 1.1 0.66 1.1 0.66 0.42 0.42 0.29 0.16 0.29 0.16 0.11
0.16 0.02-0.10 With 4
10
48 4
5.7
48 4
5.7
3.3 4
5.7
0.33 2.08 2.08 1.47 0.83 1.47 0.83 0.53





Air-to-open valve Table 3
Actuator Supply pressure
(MPa)
Spring range
(MPa)
Positioner Allowable pressure difference (MPa) Nominal diameter × Valve seat diameter or Cv value
40 50 65 80 100 150 200
Cv
4.0
Cv
6.3
25 Cv
6.3
25 32 25 32 40 32 40 50 40 50 65 65 80 100 80 100 125
HA2R 0.14 0.02~0.10 With or without 2 1 0.63 1 0.63 0.38 0.63 0.38 0.27 0.38 0.27 0.16 0.27 0.16 0.10
0.28 0.08~0.24 With 4
10
4
7.6
4
4.4
4
7.6
4
4.4
2.7 4
4.4
2.7 1.41 2.7 141 1.11 1.41 1.11 0.69
HA3R 0.14 0.02-0.10 With or without 3.5 1.9 112 1.9 1.12 0.68 1.12 0.68 0.48 0.68 0.48 0.28 0.48 0.28 0.17 0.17 0.12 0.07
0.28 0.08~0.24 With 4
10
4
10
4
7.8
4
10
4
7..8
4
4.7
4
7.8
4
4.7
3.4 4
4.7
3.4 1.96 3.4 1.96 1.23 1.23 0.87 0.49
HA4R 0.14 0.02-0.10 With or without   1.9 1.1 0.84 1.1 0.84 0.48 0.84 0.48 0.30 0.30 0.22 0.12 0.22 0.12 0.07
0.28 0.08~0.24 With 4
10
4
8.2
4
5.8
4
8.2
4
5.8
3.15 4
5.8
3.15 2.13 2.13 1.5 0.85 1.5 0.85 0.54
VA5R 0.14 0.02-0.10 With or without 2.6 1.6 1.1 1.6 1.1 0.66 1.1 0.66 0.42 0.42 0.29 0.17 0.29 0.17 0.11
0.28 0.08-0.24 With 4
10
4
10
48 4
10
48 4
4.6
48 4
4.6
2.92 2.92 2.06 1.16 2.06 1.16 0.74
VA6R 0.40 0.19-0.35 With 4
10
4
10
4
10
4
10
4
10
4
10
4
10
4
10
4
6.1

0.50 0.19-0.40 With                   4
6.1
4
4.3
2.42
Notes:



  1. The numbers in the dark boxes indicate the standard-specification actuators matched with the valves.
  2. The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201 standards.
  3. In the same cell, the number above represents the full allowable pressure difference of the valve, and the number below represents the allowable pressure difference when the valve is closed.



B. Equipped with VP actuators Table 4
Actuator Supply pressure
(MPa)
Positioner Allowable pressure difference (MPa) Nominal diameter × Valve seat diameter (mm)
65 80 100 150 200
25 32 40 32 40 50 40 50 65 65 80 100 80 100 125
VP5 0.2 With 4
10
4
10
4
10
4
10
4
10
4
8.6
4
10
4
8.6
4
5.2
4
5.2
3.68 2.07 3.68 2.07 1.32
0.4 With 4
10
4
10
4
10
4
10
4
10
4
10
4
10
4
10
47 47 4
4.9
2.78 4
4.9
2.78 1.78
0.5 With 4
10
4
10
4
10
4
10
4
10
4
10
4
10
4
10
4
8.8
4
8.8
4
6.2
3.49 4
6.2
3.49 2.24
VP6 0.3 With             4
10
4
10
4
9.3
4
9.3
4
6.5
3.69 4
6.5
3.69 2.36
0.4 With             4
10
4
10
4
10
4
10
4
8.8
4
4.9
4
8.8
4
4.9
3.18
0.5 With             4
10
4
10
4
10
4
10
4
10
4
6.2
4
10
4
6.2
4
VP7 0.3 With                   4
10
4
9.9
4
5.6
4
9.9
4
5.6
3.55
0.4 With                   4
10
4
10
4
7.3
4
10
4
7.3
4
4.7
0.5 With                   4
10
4
10
4
9.2
4
10
4
9.2
46
Notes:



  1. If the actuator is equipped with an auxiliary air supply, the smaller one of the two supply pressures shall be selected as the basis for calculating the allowable pressure difference.
  2. The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201.
  3. In the same cell, the number above represents the allowable pressure difference when the valve is normally open, and the number below represents the allowable pressure difference when the valve is closed.





Flange distance See Table 5 Table 5
Nominal diameter

(mm)

ANSI125FF

150RF JIS

10K FF RF

PN1.6

(MPa)
JIS

16K

RF


ANSI300

JIS20K

30K RF


PN4.0

(MPa)


ANSI600

JIS40K

RF

PN6.4

(MPa)
JIS

16K

LG
JIS

20K

LG
JIS

30K

LG
JIS

40K

LG

ANSI

150

RJ

ANSI

300

RJ

ANSI

600

RJ

ANSI

300

LG

ANSI

600

LG

ANSI

150

SW,BW
ANSI

300,

600

SW,BW
40 222 231 235 251 235 236 248 251 235 248 251 244 248 251
50 254 263 267 286 265 267 276 286 267 283 289 276 283 286
65 276 288 292 311 290 292 303 311 289 308 314 302 308 311
80 298 313 317 337 310 317 326 337 311 333 340 327 333 337
100 352 364 368 394 360 368 379 394 365 384 397 378 391 394
150 451 465 473 508 475 473 486 508 464 489 511 483 505 473 508
200 543 560 568 610 570 568 580 610 556 584 613 578 606 568 610
