Electric Diaphragm Control Valve Corrosion Resistance Fireproof

Name: Electric Diaphragm Control Valve Corrosion Resistance Fireproof
Brand: WEYO AUTO TECH
SKU: ZDLT
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: ZDLT

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Based on oroiect reauirements

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: L/C, T/T

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                    Electric diaphragm control valve, Corrosion Resistance diaphragm control valve, Fireproof diaphragm operated valve


Electric Diaphragm Control Valve Corrosion Resistance Fireproof

ZDLT Electric Diaphragm Control Valve

The ZDLT type electric diaphragm control valve consists of an electronic actuator and a diaphragm control valve. It is powered by a 220V AC power supply and receives a standard 4-20mA DC electrical signal to realize flow regulation and control of corrosive media such as strong acids and alkalis, as well as high-viscosity and harmful media in process pipelines. It is applied in corrosion-resistant systems such as petroleum, chemical industry, and metallurgy.

Product features: The valve has small flow resistance and large flow capacity, no stuffing box, no external leakage, and features corrosion resistance, fire resistance, poison resistance, safety and reliability. Good corrosion resistance can be obtained according to different linings and diaphragms.

Main Technical Parameters
Nominal diameter DN(mm)			15	20	25	32	40	50	65	80	100	125	150	200	250
rated flow coefficient Kv			8	12	16	38	60	68	90	150	300	500	600	1200	2000
nominal pressure MPa			1
actuator	Type Ⅱ		381LSA-20			381LSB-30			381LSB-50			381LSC-65		381LSC-99
	output shaft thrust (N)		2000			3000			5000			6500		10000
	working stroke mm		10			16			25			40		60
allowable pressure difference MPa		P1=△P	1			0.89	1	1	1	1	1	0.6	0.38	0.15	0.057
		P1=P2	1			0.44	1	1	0.75	0.9	0.55	0.3	0.19	0.075	0.028
flange standard			JB/T79.1-94
flow characteristic			approximately quick opening (regulating type)
power supply voltage			220V50Hz
factory state			Electrically open; if electrically closed is required, it should be specified in the purchase contract.

Performance Indicators
Item	Index values
Basic error (%)	≤±3.5
Hysteresis (%)	≤2.5
Dead band (%)	≤3
Deviation of start and end points (%)	±2.5
Rated stroke deviation (%)	2.5
Pure lag	≤1S
Allowable leakage (L/h)	0 for rubber diaphragms, 0.5% for polytetrafluoroethylene diaphragms, and the rated capacity of the valve (water under allowable pressure difference)
Insulation resistance	Not less than 20 MΩ
Damping characteristic	not more than three and a half cycles

Valve body material	lining material	diaphragm material	operating temperature	applicable occasions
HT200	无	chloroprene rubber	0～65℃	non-corrosive occasions, abrasives, mud
HT200	F46	fluororubber	-20～+180℃	Strong acids, strong alkalis, strong oxidants, and general organic solvents
ZG1Cr18Ni9Ti	F46	F46	-20～+200℃	It has better corrosion resistance than the above.
Valve body material	无	fluororubber	-20～+180℃	Media such as general acids, alkalis, and organic solvents
Note: The valve body can be made of other corrosion-resistant materials. In this case, the diaphragm is made of F46, and the operating temperature ranges from -20℃ to +200℃.

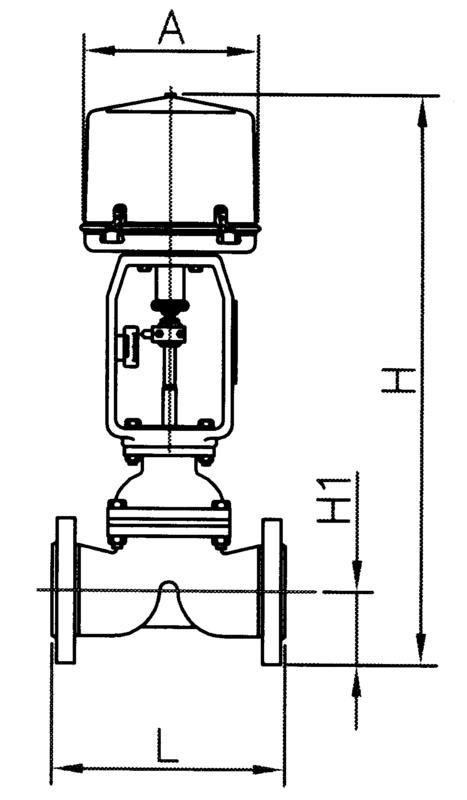

Overall dimensions Unit: mm

Nominal diameter DN(mm)	ZDLT type
Nominal diameter DN(mm)	A	H	H1	L
15	180	562	48	140
20		568	53	145
25		578	58	155
32		593	68	165
40		600	73	190
50		610	80	210
65		630	90	240
80	225	688	98	270
100	225	703	108	335
125	415	810	123	375
150		835	140	410
200		896	168	540
250		993	200	650

Codes for valve body material, lining and diaphragm

Base and lining	HT200			ZG1Cr18Ni9Ti	diaphragm
Base and lining	none	lined with F46	lined with F3	ZG1Cr18Ni9Ti	chloroprene rubber	chlorinated rubber	F46
code	1	3	2	4	1	3	2
