ZDLM Electronic Miniature Sleeve Control Valve

Name: ZDLM Electronic Miniature Sleeve Control Valve
Brand: WEYO AUTO TECH
SKU: ZDLM
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: ZDLM

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Based on oroiect reauirements

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: L/C, T/T

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                    Control Valves, sleeve control valve, control valve

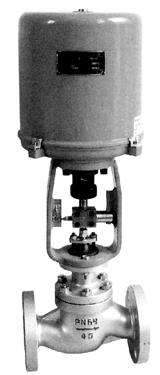

ZDLM Electronic Miniature Sleeve Control Valve

The ZDLM type electronic miniature sleeve control valve is composed of a 381L electronic actuator and a miniature sleeve control valve. It is smaller in volume and weight than ordinary control valves. The valve core adopts a balanced structure, featuring good stability, low noise, and a large allowable pressure difference. It adopts a low-resistance flow design, resulting in a large flow capacity. It is easy to assemble and disassemble, and its performance indicators are better than those of similar products.

The electronic miniature sleeve valve can directly accept the 4-20mA·DC (2-10V·DC) standard signal output by industrial control instruments or computers to drive the valve, so as to regulate industrial parameters such as pressure, flow rate, and temperature of the regulated medium. It is widely used in industrial process automatic control where low noise and large pressure difference are required.

This electronic sleeve control valve is equipped with a servo amplifier, a position transmitter, and a manual operation mechanism. It can realize segmented range adjustment, positive/negative action conversion, selection of valve position (open or closed) upon signal interruption, and has valve position signal feedback. The feedback signals available for selection include 4-20mA (standard), 0-10V, and 1-5V. It can also realize remote manual operation.

Basic technical parameters
Nominal diameterDN(mm)		25	40		50	65	80	100	150		200
Rated flow coefficient Kv	Linear	11	17.6	27.6	44	69	110	176	275	440	690
	Equal percentage	10	16	25	40	63	100	160	250	400	630
Nominal pressure (MPa)		1.64.06.4
Actuator	Model	381LSA-20	381LSB-30			381LSB-50			381LSC-65
	Output shaft thrust N	2000	3000			5000			6500
	Stroke mm	16	25			40			60
	Input signal	4～20mA·DC
Full stroke time (S)		33	52			84			126
Flow characteristic		Linear, Equal percentage
Allowable leakage		10⁻³ × valve rated capacity
Turndown ratio (R)		50∶1
Valve cover type		Standard type, Hot plate type
Operating temperature (℃)		-40～—+250,-40～—+450
Flange standard		JB/T79
Allowable pressure difference (MPa)		≤ Nominal pressure									4.8

Performance Indicators
Item	Technical indicators
Basic error %	≤±2.5
Hysteresis %	≤±2.5
Dead band %	≤±1
Pure lag	≤1S
Deviation at start and end points %	≤±2.5
Rated stroke deviation %	≤+2.5

Material of main components and applicable temperature range
Valve body and bonnet	ZG230-450	-40～+450℃
Valve body and bonnet	ZG1Cr18Ni9TiZG0Cr18Ni12MoTi	-250～+550℃
Valve stem	1Cr18Ni9Ti	-250～+550℃
Valve plug	ZG1Cr18Ni9ZG0Cr18Ni12MoTi	-250～+550℃
Sleeve	ZG1Cr18Ni9ZG0Cr18Ni12MoTi	-250～+550℃
Packing	Polytetrafluoroethylene (PTFE)	-40～+200℃
Packing	Flexible graphite	-200～+600℃

Nominal diameter DN	φA	L			H		H1
Nominal diameter DN	φA	PN1.6	PN4.0	PN6.4	Standard type	Hot plate type	PN1.6	PN4.0	PN6.4
20	225	181	194	206	636	723	53	53	65
25	225	184	197	210	655	738	58	58	68
40	255	222	235	251	676	769	73	733	83
50	255	254	267	286	689	782	80	80	88
65	255	276	292	311	706	816	90	90	100
80		298	317	337	766	876	98	98	105
100		352	368	394	776	894	108	115	125
150	270	451	473	508	896	1106	140	150	170
200	270	600	600	650	936	1196	168	188	203

Ordering Information

Product model
Nominal diameter
Nominal pressure
Operating temperature
Flow characteristic
Action mode
Input signal
Material of valve body and trim
Actuator requirements
