Pneumatic Single Seat Bellows Sealed Control Valves 1MPa 2MPa 3.5MPa

Name: Pneumatic Single Seat Bellows Sealed Control Valves 1MPa 2MPa 3.5MPa
Brand: WEYO AUTO TECH
SKU: HTSW
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: HTSW

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Based on oroiect reauirements

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: L/C, T/T

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Sealed control valves, 1MPa control valves, 2MPa control valve types


Type:	Straight-through Single-seat Cast Ball Valve	Nominal Diameter:	40～200mm
Nominal Pressure:	ANSI 150, 300, 600 JIS 10, 20, 30, 40K PN 1.6, 4.0, 6.4MPa	Allowable Operating Pressure:	1MPa, 2MPa, 3.5MPa
Connection Type:	Flanged: RF And RJ Standards: JIS B2201, ANSI B16.5, JB/T79.1 (PN 1.6MPa RF), JB/T79.2 (male And Female Face) Welded: Socket Weld (SW) (40～50mm) Butt Weld (BW) (65～200mm)	Materials:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, Or SCPH21, SCPH61, Ti
Upper Valve Bonnet:	Normal Temperature Type (P): -17～+230℃ Extended Type Ⅰ (E1): +230～+350℃, -45～-17℃ Note: The Operating Temperature Shall Not Exceed The Allowable Range Of Various Materials.	Gland Type:	Bolt Compression Type
Packing:	V-type PTFE Packing, PTFE-impregnated Asbestos Packing, Asbestos Braided Packing.

Type:	Straight-through Single-seat Cast Ball Valve
Nominal Diameter:	40～200mm
Nominal Pressure:	ANSI 150, 300, 600 JIS 10, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
Allowable Operating Pressure:	1MPa, 2MPa, 3.5MPa
Connection Type:	Flanged: RF And RJ Standards: JIS B2201, ANSI B16.5, JB/T79.1 (PN 1.6MPa RF), JB/T79.2 (male And Female Face) Welded: Socket Weld (SW) (40～50mm) Butt Weld (BW) (65～200mm)
Materials:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, Or SCPH21, SCPH61, Ti
Upper Valve Bonnet:	Normal Temperature Type (P): -17～+230℃ Extended Type Ⅰ (E1): +230～+350℃, -45～-17℃ Note: The Operating Temperature Shall Not Exceed The Allowable Range Of Various Materials.
Gland Type:	Bolt Compression Type
Packing:	V-type PTFE Packing, PTFE-impregnated Asbestos Packing, Asbestos Braided Packing.

Pneumatic Single Seat Bellows Sealed Control Valves 1MPa 2MPa 3.5MPa

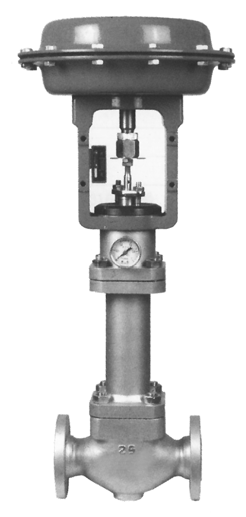

HTSW Pneumatic Single-Seat Bellows Sealed Control Valve

HTSW bellows sealed single-seat control valve is a top-guided control valve. It features a compact valve body structure with an S-shaped streamlined fluid channel, which results in small pressure drop loss, large flow rate, and a wide adjustable range. The upper valve bonnet adopts a bellows sealing structure, which can completely eliminate the possibility of process medium leaking out from the valve stem movement gap—this is one of the significant characteristics of bellows sealed valves. Due to the deformability and excellent anti-aging property of the bellows element itself, this type of control valve completely overcomes the common weaknesses of packing-sealed valves, such as packing aging and sensitivity to temperature differences. Secondly, the adoption of a bellows-packing double sealing structure ensures better safety and reliability. Therefore, it is widely used in automatic control systems for rare and special media such as highly toxic, strongly corrosive, and radioactive substances.

The valve core has a large guiding area and excellent vibration resistance. It is equipped with a multi-spring diaphragm actuator, which has a compact structure and large output force.

Cv value and stroke are shown in Table 1. Table 1
Nominal diameter (mm)		40			50			65			80			100			150			200
Valve seat diameter (mm)		25	32	40	32	40	50	40	50	65	50	65	80	65	80	100	100	125	150	125	150	200
Rated Cv value	High-precision valve core	10	17	24	17	24	44	24	44	68	44	68	99	68	99	175	175	275	360	275	360	640
	High-capacity valve core			30			50			85			125			200			420			700
	Quick-opening valve core			35			55			95			135			220			460			720
Rated stroke	Other valve cores	25						38									50			75
(mm)	Quick-opening valve core	10			13			19						25			30			50
Remark: The flow characteristics of high-precision equal percentage valve cores comply with IEC534-2.

Allowable pressure difference: See Tables 2 to 7

Ⅰ. Plunger valve core, metal valve seat Air-closed valve: Table 2
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve seat diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2D	0.14	0.02-0.10	With or without	0.31	0.19	0.13	0.08	0.05	0.03	0.02
	0.16	0.02-0.10	With	1.58	0.96	0.68	0.39	0.25	0.17	0.1
	0.4	0.08-0.24	With	2.0 4.7	2.0 2.8	2	1.08	0.74	0.52	0.29
HA3D	0.14	0.02-0.10	With or without	0.56	0.34	0.24	0.14	0.08	0.06	0.03	0.02	0.01
	0.16	0.02-0.10	With	2.0 2.8	1.71	1.21	0.07	0.44	0.31	0.17	0.11	0.07
	0.4	0.08-0.24	With	2.0 5.0	2.0 5.0	2.0 3.6	2.0 2.1	1.32	0.98	0.52	0.33	0.2
HA4D	0.14	0.02-0.10	With or without			0.41	0.24	0.15	0.11	0.06	0.03	0.02	0.01
	0.16	0.02-0.10	With			2	1.21	0.76	0.53	0.3	0.19	0.12	0.07
	0.4	0.08-0.24	With			2.0 5.0	2.0 3.6	2.0 2.25	1.61	0.91	0.58	0.35	0.22

Air-to-open valve Table 3
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve seat diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2R	0.14	0.02-0.10	With or without	0.31	0.19	0.13	0.08	0.05	0.03	0.02
HA2R	0.28	0.08-0.24	With	2.0 2.2	1.35	0.7	0.55	0.34	0.24	0.14
HA3R	0.14	0.02-0.10	With or without	0.56	0.34	0.24	0.14	0.08	0.06	0.03	0.02	0.01
HA3R	0.28	0.08-0.24	With	2.0 3.9	2.0 2.3	1.7	0.98	0.61	0.43	0.24	0.15	0.09
HA4R	0.14	0.02-0.10	With or without			0.42	0.24	0.15	0.11	0.06	0.03	0.02	0.01
HA4R	0.28	0.08-0.24	With			2.0 2.9	1.57	1.01	0.75	0.42	0.27	0.16	0.1

Ⅱ. Plunger valve core, soft valve seat

Air-closed valve Table 4
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve seat diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2D	0.14	0.02-0.10	With or without	0.22	0.13	0.09	0.05	0.03	0.02	0.01
	0.16	0.02-0.10	With	1.1	0.67	0.49	0.27	0.18	0.12	0.07
	0.4	0.08-0.24	With	1.5	1.5	1.4	0.75	0.52	0.37	0.2
HA3D	0.14	0.02-0.10	With or without	0.39	0.24	0.17	0.1	0.06	0.04	0.02	0.01	0.01
	0.16	0.02-0.10	With	1.5	1.2	0.85	0.49	0.31	0.21	0.12	0.07	0.04
	0.4	0.08-0.24	With	1.5	1.5	1.5	1.4	0.9	0.65	0.37	0.23	0.14
HA4D	0.14	0.02-0.10	With or without			0.29	0.17	0.1	0.07	0.04	0.02	0.01	0.01
	0.16	0.02-0.10	With			1.4	0.85	0.53	0.37	0.21	0.13	0.08	0.05
	0.4	0.08-0.24	With			1.5	1.5	1.5	1.1	0.63	0.4	0.25	0.15

Air-to-open valve Table 5
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference (MPa)
				Valve seat diameter (mm)
				25	32	40	50	65	80	100	125	150	200
HA2R	0.14	0.02-0.10	With or without	0.22	0.13	0.09	0.05	0.03	0.02	0.01
HA2R	0.28	0.08-0.24	With	1.5	0.95	0.49	0.39	0.24	0.17	0.1
HA3R	0.14	0.02-0.10	With or without	0.39	0.24	0.17	0.1	0.06	0.04	0.02	0.01	0.01
HA3R	0.28	0.08-0.24	With	1.5	1.5	1.19	0.68	0.43	0.3	0.17	0.1	0.06
HA4R	0.14	0.02-0.10	With or without			0.29	0.17	0.1	0.07	0.04	0.02	0.01	0.01
HA4R	0.28	0.08-0.24	With			1.5	1.1	0.74	0.52	0.29	0.18	0.11	0.07
Remarks: The numbers in the dark-colored boxes indicate the standard actuators matched with the valves. The maximum allowable pressure difference shall not exceed the maximum value specified in the ANSI B16.34 or JIS B2201 standards.

Ⅲ. Quick-opening valve core, Stellite overlay welded valve seat QS

Air-closed valve Table 6
Actuator	Supply pressure (MPa)	Allowable pressure difference (MPa)
		Valve seat diameter (mm)
		40	50	65	80	100	150	200
HA2D	0.14	0.55	0.3	0.2	0.15	0.07
HA2D	0.3	1.56	0.98	0.62	0.46	0.25
HA3D	0.14	0.98	0.54	0.37	0.27	0.13	0.06
	0.3	2	1.73	1.1	0.82	0.44	0.2
	0.3	2.75	1.73	1.1	0.82	0.44	0.2
HA4D	0.14			0.63	0.47	0.23	0.1	0.07
HA4D	0.3			1.91	1.42	0.77	0.34	0.23
Spring range		0.02-0.052	0.02-0.062	0.02-0.06	0.02-0.06	0.02-0.073	0.02-0.068	0.02-0.073

Air-to-open valve Table 7
Actuator	Supply pressure (MPa)	Spring initial compression amount	Allowable pressure difference (MPa)
			Valve seat diameter (mm)
			40	50	65	80	100	150	200
HA2R	0.14	0.02	0.12	0.08	0.05	0.04	0.02
HA2R	0.28	0.08	0.5	0.32	0.2	0.15	0.09
HA3R	0.14	0.02	0.22	0.15	0.09	0.07	0.04	0.01
HA3R	0.28	0.08	0.89	0.59	0.37	0.27	0.15	0.07
HA4R	0.14	0.02			0.16	0.12	0.07	0.03	0.02 0.08
HA4R	0.28	0.08			0.63	0.47	0.27	0.12	0.02 0.08

Flange distance: See Table 8 Table 8 Unit: mm
Nominal diameter	A
Nominal diameter	ANSI150 JIS10K PN1.6MPa	ANSI300 JIS2030 RF PN4.0MPa	JIS20K LG	JIS30K LG	ANSI 150 RJ	ANSI 300 RJ	ANSI 300 LG	ANSI 150 SW,BW	ANSI 300 SW,BW
40	222	235	236	248	235	248	244	251	251
50	254	267	267	276	267	283	276	286	286
65	276	292	292	303	289	308	302	311	311
80	298	317	317	326	311	333	327	337	337
100	352	368	368	379	365	384	378	394	394
150	451	473	473	486	464	489	483	473	508
200	543	568	568	580	556	584	578	568	610

Overall dimensions Table 9 Unit: mm
Nominal diameter	Actuator		H		C	φB	E
Nominal diameter	Actuator		Normal temperature type	Extended type	C	φB	E
40	HA2D,	R	660	825	281	267	70
40	HA3D,	R	750	920	363	350	70
50	HA2D,	R	660	830	281	267	80
50	HA3D,	R	750	920	363	350	80
65	HA2D,	R	795	975	281	267	90
	HA3D,	R	850	1035	363	350
	HA4D,	R			520	470
80	HA2D,	R	800	985	281	267	100
	HA3D,	R	855	1040	363	350
	HA4D,	R			520	470
100	HA2D,	R	830	1040	281	267	115
	HA3D,	R	880	1090	363	350
	HA4D,	R			520	470
150	HA3D,	R	1075	1325	363	350	170
150	HA4D,	R	1245	1505	520	470	170
200	HA4D,	R	1340	1600	520	470	220
Remark: 1. The dimension in column H of the table is the value when the valve is not equipped with a handwheel mechanism. If a top-mounted handwheel mechanism is installed, the dimension of the handwheel mechanism shall be added accordingly.

Ordering Information

Model
Nominal diameter × Valve seat diameter
Nominal pressure and flange connection type
Materials of valve body and internal valve components, requirements for surface hardening treatment
Type of upper valve bonnet
Flow characteristics
Actuator model, supply pressure
Valve action type
Accessories (positioner, handwheel, pressure reducing valve, etc.)
Special requirements, such as oil-free, copper-free, etc.
Name of medium
Normal flow rate and required maximum flow rate
Medium pressure, inlet pressure and outlet pressure at maximum and minimum flow rates
Medium temperature and specific gravity
Medium viscosity and whether it contains suspension
