Product Details
Place of Origin: China
Brand Name: WEYO
Model Number: HAC
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Based on oroiect reauirements
Packaging Details: Customized packaging to protect products
Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders
Payment Terms: L/C, T/T
Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts
|
Type:
|
Double-seat Cast Spherical Angle Valve
|
Nominal Diameter:
|
40～200mm
|
Nominal Pressure:
|
ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
|
Connection Type:
|
Flanged: FF, RF, RJ, LG Standards: ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2 (male-female Face)
|
Materials:
|
ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti
|
Upper Bonnet:
|
Normal Temperature Type (P): -17～+230℃ Extended Type Ⅰ (E1): -45～-17℃, +230～+566℃ Extended Type Ⅱ (E2): Integral Type (E2I): -100～-45℃ Welded Type (E2W): -196～-100℃ Bellows Seal (B): Welded Type (BD): -50～+350℃ Formed Type (BF): -30～+300℃
|
Remark:
|
The Operating Temperature Shall Not Exceed The Allowable Range Of Various Materials.
|
Gland Type:
|
Bolt Compression Type
|
Packing:
|
V-type PTFE Packing, Impregnated PTFE Asbestos Packing, Asbestos Braided Packing
|
|
Type:
|
Double-seat Cast Spherical Angle Valve
|
|
Nominal Diameter:
|
40～200mm
|
|
Nominal Pressure:
|
ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
|
|
Connection Type:
|
Flanged: FF, RF, RJ, LG Standards: ANSI B16.5, JIS B2201, JB/T79.1 PN1.6MPa, JB/T79.2 (male-female Face)
|
|
Materials:
|
ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti
|
|
Upper Bonnet:
|
Normal Temperature Type (P): -17～+230℃ Extended Type Ⅰ (E1): -45～-17℃, +230～+566℃ Extended Type Ⅱ (E2): Integral Type (E2I): -100～-45℃ Welded Type (E2W): -196～-100℃ Bellows Seal (B): Welded Type (BD): -50～+350℃ Formed Type (BF): -30～+300℃
|
|
Remark:
|
The Operating Temperature Shall Not Exceed The Allowable Range Of Various Materials.
|
|
Gland Type:
|
Bolt Compression Type
|
|
Packing:
|
V-type PTFE Packing, Impregnated PTFE Asbestos Packing, Asbestos Braided Packing
|

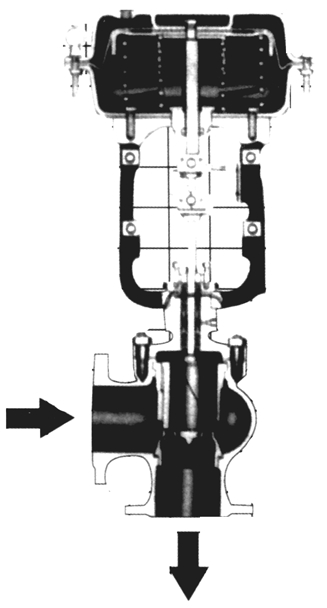

The HAC cage-type angle valve is a pressure-balanced control valve. Its valve body has a compact structure and is equipped with guide vanes that improve the smooth flow of fluid around the sleeve. It boasts advantages such as low pressure drop loss, small flow rate, a wide adjustable range, and high precision of flow characteristic curves. The angle valve can be selected according to the requirements of pipeline steering layout.
| Cv value and stroke: see Table 1 Table 1 | |||||||||||||||||||||||
| Nominal Diameter(mm) | 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||||||||||||||
| Valve Seat Diameter(mm) | 25 | 32 | 40 | 32 | 40 | 50 | 40 | 50 | 65 | 50 | 65 | 80 | 65 | 80 | 100 | 100 | 125 | 150 | 125 | 150 | 200 | ||
| Rated Cv Value | High-Capacity Sleeve | Equal Percentage | 36 | 60 | 100 | 140 | 220 | 420 | 820 | ||||||||||||||
| Linear | 40 | 75 | 110 | 150 | 240 | 435 | 850 | ||||||||||||||||
| High-Precision Sleeve | 11 | 17 | 24 | 17 | 24 | 44 | 24 | 44 | 68 | 44 | 68 | 99 | 68 | 99 | 175 | 175 | 275 | 360 | 275 | 360 | 650 | ||
| Rated Stroke mm | 25 | 38 | 50 | 75 | |||||||||||||||||||
| Remarks: The flow characteristics of the high-precision metal valve seat comply with the IEC534-2 standard. | |||||||||||||||||||||||
|
Allowable Pressure Difference
I. Metal Valve Seat
A. Air-Closed Valve: see Table 2 Table 2
|
||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference(MPa) | ||||||
| Nominal diameter(mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2D | 0.14 | 0.02~0.10 | With or With out | 0.99 | 0.77 | 0.66 | 0.54 | 0.42 | - | - |
| 0.16 | With | 4 4.92 |
3.8 | 3.29 | 2.74 | 2.08 | - | - | ||
| 0.4 | 0.08~0.24 | With | 4 10 |
4 10 |
4 9.87 |
4 8.23 |
4 6.28 |
- | - | |
| HA3D | 0.14 | 0.02~0.10 | With or With out | 1.75 | 1.37 | 1.17 | 0.97 | 0.74 | 0.52 | - |
| 0.16 | With | 4 8.7 |
4 6.7 |
4 5.8 |
4 4.87 |
3.7 | 2.61 | - | ||
| 0.4 | 0.08~0.24 | With | 4 10 |
4 10 |
4 10 |
4 10 |
4 10 |
4 7.86 |
- | |
| HA4D | 0.14 | 0.02~0.10 | With or With out | - | - | 2.02 | 1.67 | 1.28 | 0.9 | 0.74 |
| 0.16 | With | - | - | 4 10 |
4 8.39 |
4 6.36 |
4 4.5 |
3.7 | ||
| 0.4 | 0.08~0.24 | With | - | - | 4 10 |
4 10 |
4 10 |
4 10 |
4 10 |
|
| B. Air-open valve: see Table 3 Table 3 | ||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference(MPa) | ||||||
| Nominal diameter(mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2R | 0.14 | 0.02~0.10 | With or With out | 0.99 | 0.77 | 0.66 | 0.54 | 0.42 | - | - |
| 0.28 | 0.08~0.24 | With | 4 6.81 |
4 5.39 |
4 4.6 |
3.84 | 2.93 | - | - | |
| HA3R | 0.14 | 0.02~0.10 | With or With out | 1.75 | 1.37 | 1.17 | 0.97 | 0.74 | 0.52 | - |
| 0.28 | 0.08~0.24 | With | 4 10 |
4 9.57 |
4 8.17 |
4 6.8 |
4 5.18 |
3.67 | - | |
| HA4R | 0.14 | 0.02~0.10 | With or With out | - | - | 2.02 | 1.67 | 1.28 | 0.9 | 0.74 |
| 0.28 | 0.08~0.24 | With | - | - | 4 10 |
4 10 |
4 8.97 |
4 6.3 |
4 5.1 |
|
| VA5R | 0.14 | 0.02~0.10 | With or With out | - | - | - | - | 1.75 | 1.23 | 1.02 |
| 0.14 | 0.04~0.12 | With or With out | - | - | - | - | 4 5.2 |
3.7 | 3.07 | |
| 0.28 | 0.08~0.24 | With | - | - | - | - | 4 10 |
4 8 |
4 7 |
|
| VA6R | 0.4 | 0.19~0.35 | With | - | - | - | - | 4 10 |
- | - |
| 0.5 | 0.19~0.35 | With | - | - | - | - | - | 4 10 |
- | |
|
1.The numbers in the dark boxes indicate the actuators specified in the standards that are matched with the valve. 2.The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201. 3.In the same cell, the upper number represents the allowable pressure difference when the valve is fully open, and the lower number represents the allowable pressure difference when the valve is closed. |
||||||||||
II. Soft Valve Seat: see Tables 4 and 5
| A. Air-closed Valve: Table 4 | ||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference (MPa) | ||||||
| Nominal diameter (mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2D | 0.14 | 0.02~0.10 | With or With out | 0.69 | 0.54 | 0.46 | 0.38 | 0.29 | - | - |
| 0.16 | With | 3 | 2.66 | 2.3 | 1.92 | 1.46 | - | - | ||
| 0.4 | 0.08~0.24 | With | 3 | 3 | 3 | 3 | 3 | - | - | |
| HA3D | 0.14 | 0.02~0.10 | With or With out | 1.23 | 0.96 | 0.82 | 0.68 | 0.52 | 0.36 | - |
| 0.16 | With | 3 | 3 | 3 | 3 | 2.59 | 1.83 | - | ||
| 0.4 | 0.08~0.24 | With | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| HA4D | 0.14 | 0.02~0.10 | With or With out | - | - | 1.41 | 1.17 | 0.9 | 0.63 | 0.52 |
| 0.16 | With | - | - | 3 | 3 | 3 | 3 | 2.59 | ||
| 0.4 | 0.08~0.24 | With | - | - | 3 | 3 | 3 | 3 | 3 | |
| B. Air-open valve: Table 5 | ||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference (MPa) | ||||||
| Nominal diameter (mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2R | 0.14 | 0.02~0.10 | With or With out | 0.69 | 0.54 | 0.46 | 0.38 | 0.29 | - | - |
| 0.28 | 0.08~0.24 | With | 3 | 3 | 3 | 2.69 | 2.05 | - | - | |
| HA3R | 0.14 | 0.02~0.10 | With or With out | 1.23 | 0.96 | 0.82 | 0.68 | 0.52 | 0.36 | - |
| 0.28 | 0.08~0.24 | With | 3 | 3 | 3 | 3 | 3 | 2.57 | - | |
| HA4R | 0.14 | 0.02~0.10 | With or With out | - | - | 1.41 | 1.17 | 0.9 | 0.63 | 0.52 |
| 0.28 | 0.08~0.24 | With | - | - | 3 | 3 | 3 | 3 | 3 | |
| Flange distance: see Table 6 Table 6 Unit: mm | |||||||||
| Nominal diameter | A | ||||||||
| ANSI125FF ANSI150RF JIS10KFFRF PN1.6(MPa) |
JIS16K RF |
ANSI300 JIS2030KRF PN4.0(MPa) |
ANSI600 JIS40KRF PN6.4(MPa) |
ANSI 150 RJ |
ANSI 300 RJ |
ANSI 600 RJ |
ANSI 300 LG |
ANSI 600 LG |
|
| 40 | 111 | 117 | 117 | 125 | 117 | 124 | 125 | 124 | 125 |
| 50 | 127 | 133 | 133 | 143 | 133 | 141 | 144 | 141 | 144 |
| 65 | 138 | 146 | 146 | 156 | 144 | 154 | 157 | 154 | 157 |
| 80 | 149 | 159 | 159 | 168 | 156 | 167 | 170 | 167 | 170 |
| 100 | 176 | 184 | 184 | 197 | 183 | 192 | 198 | 192 | 198 |
| 150 | 225 | 237 | 237 | 254 | 232 | 244 | 256 | 244 | 256 |
| 200 | 271 | 280 | 284 | 305 | 278 | 292 | 306 | 284 | 305 |
Equipped with HA,VA5,VA6 actuator
