HMT HDT Three-way Control Valve

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: HMT

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Based on oroiect reauirements

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: L/C, T/T

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    150mm control valves, 6.4mpa control valves, 150mm pressure reducing valve


Type:	Three-way Cast Ball Valve	Nominal Diameter:	Confluence Valve: 25～150mm Divergence Valve: 80～150mm
Nominal Pressure:	ANSI 150 And 300 JIS 10 And 20K PN 1.6, 4.0, 6.4MPa	Connection Type:	Flanged: RF And RJ Standards: ANSI B16.5, JIS B2201
Materials:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, Or SCPH21, SCPH61	Upper Valve Bonnet:	Normal Temperature Type: 0～+200℃ High Temperature Type: +200～+425℃
Gland Type:	Bolt-compressed Type	Packing:	V-type PTFE Packing, Impregnated PTFE Asbestos Packing, And Asbestos Braided Packing.

Type:	Three-way Cast Ball Valve
Nominal Diameter:	Confluence Valve: 25～150mm Divergence Valve: 80～150mm
Nominal Pressure:	ANSI 150 And 300 JIS 10 And 20K PN 1.6, 4.0, 6.4MPa
Connection Type:	Flanged: RF And RJ Standards: ANSI B16.5, JIS B2201
Materials:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, Or SCPH21, SCPH61
Upper Valve Bonnet:	Normal Temperature Type: 0～+200℃ High Temperature Type: +200～+425℃
Gland Type:	Bolt-compressed Type
Packing:	V-type PTFE Packing, Impregnated PTFE Asbestos Packing, And Asbestos Braided Packing.

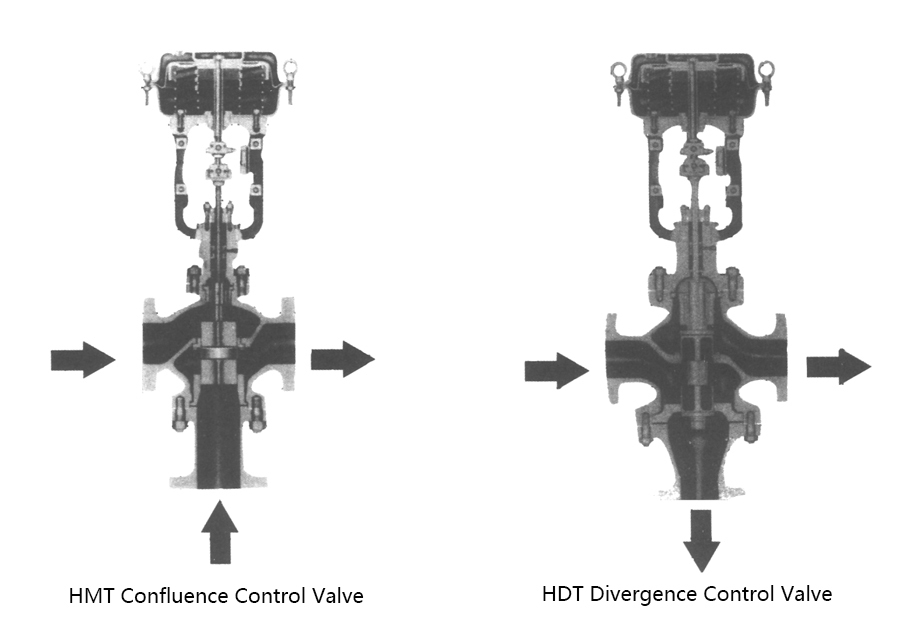

HMT HDT Three-way Control Valve

Three-way control valves are used in scenarios where three interconnected pipes need to be regulated, and there are two types: confluence (HMT) and divergence (HDT).
When the nominal diameter and pressure difference are small, confluence valves can be used in divergence applications. However, for divergence scenarios where the nominal diameter is larger than 80mm and the pressure difference is large, only divergence valves can be used.

Cv value and stroke see Table 1. Table 1
Nominal Diameter(mm)		25		40	50	65	80	100	125	150
Nominal Diameter(mm)		20	25	40	50	65	80	100	125	150
Rated Cv Value	Confluence Valve	6.3	10	23	40	63	90	160	250	360
Rated Cv Value	Divergence Valve	-	-	-	-	-	70	130	200	270
Rated Stroke(mm)		14.3		25		37.5			50

Allowable pressure difference: see Tables 2 and 3

Confluence valve: Table 2
Actuator	Supply pressure (MPa)	Spring range(MPa)	Positioner	Allowable pressure difference(MPa)
				Valve seat diameter(mm)
				20	25	40	50	65	80	100	125	150
HA2	0.14	0.02-0.10	With	0.79	0.49	0.33	0.2	0.12	0.09	0.05	-	-
HA2	0.35	0.08-0.24		0.04 (1.6)	3.5 (0.99)	2.3 (0.67)	1.4 (0.39)	0.86 (0.24)	0.62 (0.18)	0.34 (0.10)	-	-
HA3	0.14	0.02-0.10		-	-	0.59	0.35	0.22	0.16	0.09	0.05	0.04
HA3	0.35	0.08-0.24		-	-	4.0 (1.2)	2.5 (0.71)	1.53 (0.43)	1.1 (0.31)	0.02 (0.18)	0.30 (0.10)	0.27 (0.08)
HA4	0.14	0.02-0.10		-	-	-	-	0.37	0.26	0.15	0.1	0.06
HA4	0.35	0.08-0.24		-	-	-	-	2.7 (0.76)	1.9 (0.54)	1.07 (0.30)	0.69 (0.20)	0.47 (0.13)
Remarks: 1.The numbers in the dark boxes indicate the standard specification actuators matched with the valve. 2.The numbers in parentheses refer to the pressure difference in divergence scenarios, and the rest are the same for both confluence and divergence scenarios.

Divergence valve: Table 3
Actuator	Supply pressure (MPa)	Spring range(MPa)	Positioner	Allowable pressure difference(MPa)
				Valve seat diameter(mm)
				20	25	40	50	65	80	100	125	150
HA2	0.14	0.02-0.10	With	0.79	0.49	0.33	0.2	0.12	0.09	0.05	-	-
HA2	0.35	0.08-0.24		0.04 (1.6)	3.5 (0.99)	2.3 (0.67)	1.4 (0.39)	0.86 (0.24)	0.62 (0.18)	0.34 (0.10)	-	-
HA3	0.14	0.02-0.10		-	-	0.59	0.35	0.22	0.16	0.09	0.05	0.04
HA3	0.35	0.08-0.24		-	-	4.0 (1.2)	2.5 (0.71)	1.53 (0.43)	1.1 (0.31)	0.02 (0.18)	0.30 (0.10)	0.27 (0.08)
HA4	0.14	0.02-0.10		-	-	-	-	0.37	0.26	0.15	0.1	0.06
HA4	0.35	0.08-0.24		-	-	-	-	2.7 (0.76)	1.9 (0.54)	1.07 (0.30)	0.69 (0.20)	0.47 (0.13)

HMT HDT Three-way Control Valve 0

Nominal diameter	Actuator	A				E		H		φB	C
		JIS10K ANSI150 RF		JIS20K ANSI300 RF		JIS10K20K ANSI150300 RF		Normal temperature	High temperature
		Confluence valve	Divergence valve	Confluence valve	Divergence valve	Confluence valve	Divergence valve
25	HA2	184		197		145		475	625	267	281
40	HA2	222		235		205		495	645	267	281
	HA3							590	740	350	363
50	HA2	254		267		230		510	660	267	281
	HA3							605	755	350	363
65	HA2	276		292		260		545	695	267	281
	HA3							670	820	350	363
	HA4							875	1025	470	520
80	HA2	298	370	318	420	280	300	585	735	267	281
	HA3							705	886	350	363
	HA4							910	1060	470	520
100	HA2	352	400	368	460	330	330	625	775	267	281
	HA3							745	893	350	363
	HA4							950	1060	470	520
125	HA3	403	460	425	500	370		740	890	350	363
	HA4								1120	470	520
150	HA4	451	530	473	570				890	350	363
									1120	470	520

Ordering Information

Model number
Nominal diameter × valve seat diameter or required Cv value
Nominal pressure and flange connection type
Material of valve body and valve trim, requirements for surface hardening treatment
Type of upper bonnet
Actuator model and supply pressure
Fluid flow direction (confluence, divergence)
Accessories
Special requirements for oil prohibition
Fluid name, temperature and specific gravity
Normal flow rate and maximum flow rate
Fluid pressure, inlet pressure and outlet pressure at minimum and maximum conditions
Fluid viscosity, whether the fluid contains solid impurities
