Product Details
Place of Origin: China
Brand Name: WEYO
Model Number: HCBE
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Based on oroiect reauirements
Packaging Details: Customized packaging to protect products
Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders
Payment Terms: L/C, T/T
Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts
|
Type:
|
Straight-through Cast Globe Valve
|
Nominal Diameter:
|
100~300mm
|
Nominal Pressure:
|
ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
|
Connection Type:
|
Flanged Connection: FF, RF, RJ And LG Flange Standards: JIS B220 Or ANSI B16.5; JB/T79.1 For PN 1.6MPa; JB/T79.2 (male-female Face) Welded Connection: Butt Weld (BW)
|
Materials:
|
ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, Or SCPH21, SCPH61, Ti
|
Upper Valve Bonnet:
|
Normal Temperature Type (P): -17~+230℃ Extended Type I (E1): -45~-17℃, +230~+566℃ Extended Type II (E2): Integral Type (E2I) -100~-45℃; Welded Type (E2W) -196~-100℃
|
Gland Type:
|
Bolt-clamped Type
|
Packing:
|
V-type PTFE Packing, PTFE-impregnated Asbestos Packing, Asbestos Braided Packing
|
|
Type:
|
Straight-through Cast Globe Valve
|
|
Nominal Diameter:
|
100~300mm
|
|
Nominal Pressure:
|
ANSI 125, 150, 300, 600 JIS 10, 16, 20, 30, 40K PN 1.6, 4.0, 6.4MPa
|
|
Connection Type:
|
Flanged Connection: FF, RF, RJ And LG Flange Standards: JIS B220 Or ANSI B16.5; JB/T79.1 For PN 1.6MPa; JB/T79.2 (male-female Face) Welded Connection: Butt Weld (BW)
|
|
Materials:
|
ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, Or SCPH21, SCPH61, Ti
|
|
Upper Valve Bonnet:
|
Normal Temperature Type (P): -17~+230℃ Extended Type I (E1): -45~-17℃, +230~+566℃ Extended Type II (E2): Integral Type (E2I) -100~-45℃; Welded Type (E2W) -196~-100℃
|
|
Gland Type:
|
Bolt-clamped Type
|
|
Packing:
|
V-type PTFE Packing, PTFE-impregnated Asbestos Packing, Asbestos Braided Packing
|

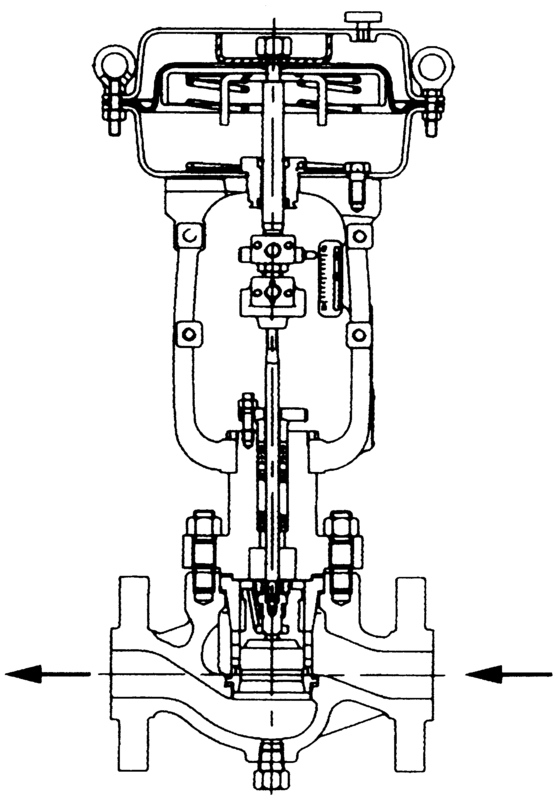

The HCBE cage-type control valve is a pressure-balanced control valve. Its internal components adopt a sleeve-guided pilot valve core, which mainly utilizes fluid pressure to realize the rapid action of the valve core with small operating force. In addition, the sealing type adopts single-seat sealing, and the flow characteristic curve has high accuracy, complying with the IEC534-1 standard.
