V500-ZZY Series Self-Operated Pressure Control Valves

Name: V500-ZZY Series Self-Operated Pressure Control Valves
Brand: WEYO AUTO TECH
SKU: V500-ZZY
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: V500-ZZY

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            pn16 control valves, unbalanced control valves, pn16 pressure reducing valve


Body Type:	Globe	Valve Size:	DN20,25,32,40,50,65,80,100,125,150,200,250,300 (¾”,1”,1¼”,1½”,2”,2½”,3”,4”,5”,6”,8”,10”,12”)
Pressure Rating:	PN16,25,40,63,100 (ANSI Class 150,300,600)	End Connection:	Flanged :RF,FM,RJ
Flanged Standard:	GB/T 9113,JB/T 79,HG/T 20592,HG/T 20615,SH 3406,ANSI B16.5	Body & Bonnet Materials:	A216 WCB/A105 A351 CF8/A182 F304,A351 CF8M/A182 F316 A351 CF3/A182 F304L,A351 CF3M/A182 F316L Other Special Materials Are Available
Trim Materials:	A182 F304, A182 F316, A182 F304L, A182 F316L ，PTFE Sealing Surface Or Full Stellite Alloy Overlay Welding, PTFE Embedded Are Available，Other Special Materials Are Available	Packing:	PTFE:-196~150℃ ，Graphite:150~620℃
Bonnet Type:	Plain Type:-60~350℃，Extension Type (wide Pressure Setting Range):-60~350℃，Fin-extension Type:350~550℃	Plug Type:	Flat Bottom, Unbalanced
Seat Leakage Standard:	GB/T 4213,ANSI B16.104	Leakage:	Class IV, Class VI(Soft Sealing)
Flow Characteristic:	Quick Open	Regulation Accuracy:	±5%~10%
Regulation Type:	Outlet Regulation (B), Inlet Regulation (K)	(kPa) Pressure Setting Range:	15~50,40~80,60~100,80~140,120~180,160~220,200~260,240~300, 280~350, 330~400,380~450,430~500,480~560,540~620,600~700,680~800,7 80~900, 880~1000,900~1200,1000~1500,1200~1600,1300~1800,1500~2100
Rangeability (P1/P2):	1.25~10	Diaphragm Type:	Acting Type: Direct Acting，Size(mm):176,194,230,280,308，Nitrile-Butadiene Rubber (NBR)，Fluoroelastomer (Viton)，Oil Resistance Rubber
Diaphragm Cover:	Q235,Q235,PTFE Applied	Metallic Diaphragm:	A182 F304 Optional
Piston Cylinder:	Optional

Body Type:	Globe
Valve Size:	DN20,25,32,40,50,65,80,100,125,150,200,250,300 (¾”,1”,1¼”,1½”,2”,2½”,3”,4”,5”,6”,8”,10”,12”)
Pressure Rating:	PN16,25,40,63,100 (ANSI Class 150,300,600)
End Connection:	Flanged :RF,FM,RJ
Flanged Standard:	GB/T 9113,JB/T 79,HG/T 20592,HG/T 20615,SH 3406,ANSI B16.5
Body & Bonnet Materials:	A216 WCB/A105 A351 CF8/A182 F304,A351 CF8M/A182 F316 A351 CF3/A182 F304L,A351 CF3M/A182 F316L Other Special Materials Are Available
Trim Materials:	A182 F304, A182 F316, A182 F304L, A182 F316L ，PTFE Sealing Surface Or Full Stellite Alloy Overlay Welding, PTFE Embedded Are Available，Other Special Materials Are Available
Packing:	PTFE:-196~150℃ ，Graphite:150~620℃
Bonnet Type:	Plain Type:-60~350℃，Extension Type (wide Pressure Setting Range):-60~350℃，Fin-extension Type:350~550℃
Plug Type:	Flat Bottom, Unbalanced
Seat Leakage Standard:	GB/T 4213,ANSI B16.104
Leakage:	Class IV, Class VI(Soft Sealing)
Flow Characteristic:	Quick Open
Regulation Accuracy:	±5%~10%
Regulation Type:	Outlet Regulation (B), Inlet Regulation (K)
(kPa) Pressure Setting Range:	15~50,40~80,60~100,80~140,120~180,160~220,200~260,240~300, 280~350, 330~400,380~450,430~500,480~560,540~620,600~700,680~800,7 80~900, 880~1000,900~1200,1000~1500,1200~1600,1300~1800,1500~2100
Rangeability (P1/P2):	1.25~10
Diaphragm Type:	Acting Type: Direct Acting，Size(mm):176,194,230,280,308，Nitrile-Butadiene Rubber (NBR)，Fluoroelastomer (Viton)，Oil Resistance Rubber
Diaphragm Cover:	Q235,Q235,PTFE Applied
Metallic Diaphragm:	A182 F304 Optional
Piston Cylinder:	Optional

V500-ZZY Series Self-Operated Pressure Control Valves

Self-Operated Pressure Control Valve needs no external energy; the medium’s own energy is used as the power source. The product is suitable for no electricity and no gas occasions, it not only saves energy, but also saves wiring, piping and equipment costs. The pressure setting can be adjusted at any time during the adjustable range. The valve features quick open flow characteristic, quick action, excellent seal, high precision adjustment, small size and easy regulation, therefore it is widely suitable for decompression and pressure relief (outlet

regulation) or vent and relief (inlet regulation) of gas, liquid or steam in petrochemical, chemical, metallurgy, food, light industry, machinery manufacturing and building control systems, etc.

There are three kinds of trim types: ZZYP single seated control valve, ZZYM cage guided control valve and ZZYN double seated control valve, which can be determined by different kinds of occasions (differential pressure, temperature and fluid status).

There are three kinds of bonnet types: plain, extension (wide pressure setting range) and finextension.

There are three kinds of actuator types: diaphragm (ordinary diaphragm and enhanced diaphragm), piston cylinder and metallic.

Rated Cv and Stroke

Valve size mm(inch)	Port size (mm)	Rated Kv	Rated Cv	Stroke (mm)	Valve size mm(inch)	Port size (mm)	Rated Kv	Rated Cv	Stroke (mm)
20 (¾)	2	0.02	0.023	8	25 (1)	8	0.8	0.93	8
	3	0.08	0.093			9	1.2	1.4
	4	0.12	0.14			10	1.8	2.1
	5	0.2	0.23			12	2.8	3.2
	6	0.32	0.37			15	4	4.6
	7	0.5	0.58			20	5	5.8
	8	0.8	0.93			25	8	9.3
	9	1.2	1.4		32 (1¼)	32	12.5	14.5	10
	10	1.8	2.1		40 (1½)	40	20	23	10
	12	2.8	3.2		50 (2)	50	32	37	12
	15	4	4.6		65 (2½)	65	50	58	15
	20	5	5.8		80 (3)	80	80	93	18
25 (1)	2	0.02	0.023	8	100 (4)	100	125	146	20
	3	0.08	0.093		125 (5)	125	160	187	30
	4	0.12	0.14		150 (6)	150	320	373	40
	5	0.2	0.23		200 (8)	200	450	525	45
	6	0.32	0.37		250 (10)	250	630	735	60
	7	0.5	0.58		300 (12)	300	900	1050	65

Flow Characterstics

V500-ZZY Series Self-Operated Pressure Control Valves 0

Quick open

Table 1 Body Materials Temperature - Pressure Range

Standard Class

Working Pressure MPa

ANSI Class 600					ANSI Class 300					ANSI Class 150					(℃) Temp.
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	(℃) Temp.
9.93	9.93	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.15	1.90	1.90	1.98	1.98	1.96	-2938
9.62	9.56	10.34	10.34	10.02	4.81	4.78	5.17	5.17	5.01	1.84	1.83	1.95	1.95	1.92	50
8.44	8.17	10.30	10.30	9.32	4.22	4.09	5.15	5.15	4.66	1.62	1.57	1.77	1.77	1.77	100
7.70	7.40	10.03	9.95	9.02	3.85	3.70	5.03	4.97	4.51	1.48	1.42	1.58	1.58	1.58	150
7.13	6.90	9.72	9.59	8.76	3.57	3.45	4.86	4.80	4.38	1.37	1.32	1.38	1.38	1.38	200
6.68	6.50	9.27	9.27	8.39	3.34	3.25	4.63	4.63	4.19	1.21	1.21	1.21	1.21	1.21	250
6.32	6.18	8.57	8.57	7.96	3.16	3.09	4.29	4.29	3.98	1.02	1.02	1.02	1.02	1.02	300
6.18	6.04	8.26	8.26	7.74	3.09	3.02	4.14	4.14	3.87	0.93	0.93	0.93	0.93	0.93	325
6.07	5.93	8.04	8.04	7.51	3.03	2.96	4.03	4.03	3.76	0.84	0.84	0.84	0.84	0.84	350
5.98	5.81	7.76	7.76	7.27	2.99	2.90	3.89	3.89	3.64	0.74	0.74	0.74	0.74	0.74	375
5.89	5.69	7.33	7.33	6.94	2.94	2.84	3.65	3.65	3.47	0.65	0.65	0.65	0.65	0.65	400
5.83	5.60	7.00	7.00	5.75	2.91	2.80	3.52	3.52	2.88	0.55	0.55	0.55	0.55	0.55	425
5.77	5.48	6.77	6.77		2.88	2.74	3.37	3.37		0.46	0.46	0.46	0.46		450
5.73	5.39	6.34	6.34		2.87	2.69	3.17	3.17		0.37	0.37	0.37	0.37		475
5.65	5.30	5.65	5.15		2.82	2.65	2.82	2.57		0.28	0.28	0.28	0.28		500
5.00	4.89	3.69	2.98		2.52	2.44	1.84	1.49		0.14	0.14	0.14	0.14		538
		3.13	2.54				1.56	1.27							550
		2.11	1.76				1.05	0.88							575

Table 2 Trim Materials Temperature Range

No.	Materials	Temperature Range ℃	Remark
1	A182 F304 A182 F304+STL	-196~300 -196~550	Sealing surface or full stellite alloy overlay welding are available
2	A182 F316 A182 F316+STL	-196~300 -196~550	Sealing surface or full stellite alloy overlay welding are available
3	A182 F304L A182 F304L+STL	-196~300 -196~450	Sealing surface or full stellite alloy overlay welding are available
4	A182 F316L A182 F316L+STL	-196~300 -196~450	Sealing surface or full stellite alloy overlay welding are available

Note:STL: Stellite alloy overlay welding.

Valve Internal Construction

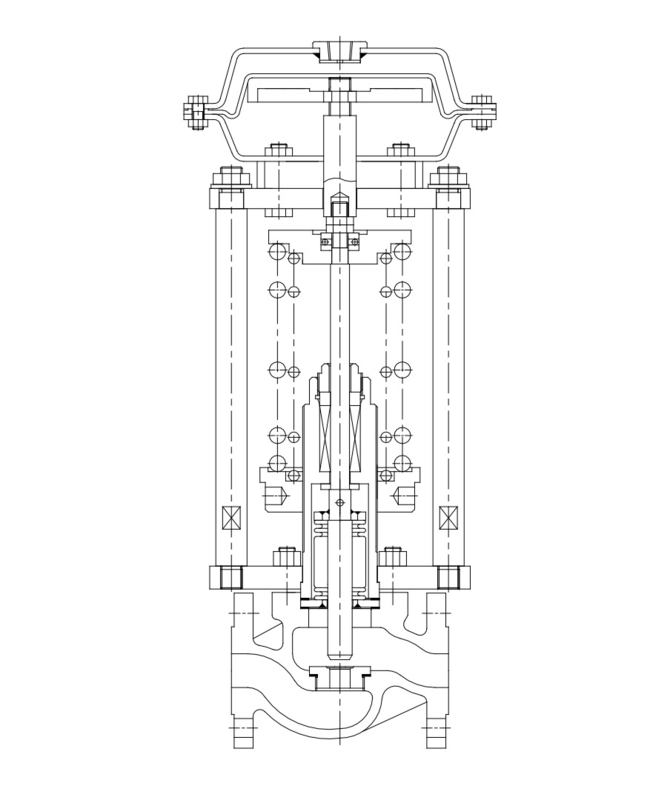

ZZYP-16B Self-operated pressure single seated control valve (outlet regulation)

Self-Operated Pressure Control Valve is designed to control outlet pressure, acting type

is pressure to close. The working principle is as followed: the fluid, according to the arrow

direction, is introduced into the valve body through the plug and the seat. The other, after

cooled down by the condenser (when the fluid is steam) in introduced into the diaphragm to

move the plug to achieve decompression and regulation. When the outlet pressure is higher

than the setting point, the force on the diaphragm is getting bigger to compress the spring and

move the plug to the close position until the outlet pressure is lowered to the setting point;

however if the outlet pressure is lower than the setting point, the force is getting smaller to

move the plug to the open position until the outlet pressure is up to the setting point.

V500-ZZY Series Self-Operated Pressure Control Valves 2

ZZYP-16K Self-operated pressure single seated control valve (inlet regulation)

Self-Operated Pressure Control Valve is designed to control inlet pressure, acting type is

pressure to open. The working principle is basically the same as the outlet pressure control

valve, however the fluid force moves the plug to the opposite position to achieve vent and

regulation.
V500-ZZY Series Self-Operated Pressure Control Valves 3

ZZYM Self-operated pressure ZZYN Self-operated pressure

cage guided control valve double seated control valve

External Dimensions and Weight

Valve size mm(inch)			20 (¾)	25 (1)	32 (1¼)	40 (1½)	50 (2)	65 (2½)	80 (3)	100 (4)	125 (5)	150 (6)	200 (8)	250 (10)	300 (12)
L			383		512		603	862		1023	1380		1800	2000	2200
PN16,25,40		A	150	160	180	200	230	290	310	350	400	480	600	730	850
PN63			230		260		300	340	380	430	500	550	650	775	900
Press. setting range (kPa)	15~140	H	475		520		540	710		780	840		880	940	950
		ØB	280		308
	120~300	H	455		500		520	690		760	800		870	900	950
		ØB	230
	280~500	H	450		490		510	680		750	790		860	890	940
		ØB	176					194		280
	480~1000	H	445		480			670	740	780			850	880	930
		ØB	176					194			280
Weight [1] (kg)			26		37		42	72	90	112	130	169	285	495	675

Refers to the weight of PN16.
