3'' 4'' 5'' 6'' Butterfly Valve Excellent Shut Off And Throttling Performance

Name: 3'' 4'' 5'' 6'' Butterfly Valve Excellent Shut Off And Throttling Performance
Brand: WEYO AUTO TECH
SKU: V400-BR
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: V400-BR

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            5'' Butterfly Valves, 6'' Butterfly Valves, 3'' bf valve


Body Type:	Eccentric Flat Cast Type	Valve Size:	3”,4”,5”,6”,8”,10”,12”,14”,16”,18”,20”,24”,28”,30”,32 ”,36”,40”,42”,48” 80,100,125,150,200,250,300,350,400,450,500,600,700,750,800,900, 1000,1050,1200
Pressure Rating:	ANSI Class 150,300(PN2.5,6,10,16,25,40)	End Connections:	Flangeless:RF ， Flanged:RF, FM
Flange Standard:	ANSI B16.5,GB/T 9113,JB/T 79,HG/T 20592,HG/T 20615,SH 3406	Body (Bonnet) & Disc Materials:	A216 WCB,A217 WC6,WC9 A351 CF8,CF8M,CF3,CF3M Other Special Materials Are Available
Trim Materials:	A276 410,A959 S17400,630(17-4PH),B637 Inconel 718 A182 F304,F316,F304L,F316L Other Special Materials Are Available	Disc Ring:	Stainless Steel + Graphite:-196~620℃ ，PTFE:-45~150℃ ，PTFE:-45~150℃
Seat Ring:	Carbon Steel And Alloy Steel Body: Sealing Surface 507Mo Or Stellite Alloy Overlay Welding Are Available ，Stainless Steel Body: Sealing Surface Stellite Alloy Overlay Welding Are Available	Packing:	PTFE:-45~150℃ ，Graphite: -196~620℃
Shaft Guide Bushing:	A182 F304+PTFE,A182 F316+PTFE,A182 F304L+PTFE,A182 F316L+PTFE ，Self-lubricating Bearings ，A276 410,A595 S17400,630(17-4PH) A182 F304,A182 F316,A182 F304L,A182 F316L ，Guide Surface Satellite Alloy Overlay Welding Are Available	Bonnet Type:	Integrated With The Body ，Steam Jacket Type (body-bonnet)
Disk Type:	Rotary Triple Offset Type	Seat Leakage Standard:	ANSI B16.104,ANSI/FCI 70-2,GB/T 4213,MSS SP-61(Optional)
Leakage:	Class IV, V, VI	Flow Characteristics:	Approximate EQ-%
Rangeability:	50:1( Stroke 90° ), 25:1( Stroke 60° )	Dual-Piston Gear-Rack Spring ReturnCylinder Type:	Acting Type:Air-to-close, Air-to-open， Size:SR63~700，Supply Pressure:0.4~0.5MPa，Handwheel: Side Handwheel
Dual-Piston Gear-Rack Double Acting Cylinder Type:	Acting Type:Air-to-close, Air-to-open，Size:DA45~600，Supply Pressure: 0.4~0.5MPa，Handwheel: Side Handwheel	Electric Motor:	Optional
Hydraulic Cylinder:	Optional

Body Type:	Eccentric Flat Cast Type
Valve Size:	3”,4”,5”,6”,8”,10”,12”,14”,16”,18”,20”,24”,28”,30”,32 ”,36”,40”,42”,48” 80,100,125,150,200,250,300,350,400,450,500,600,700,750,800,900, 1000,1050,1200
Pressure Rating:	ANSI Class 150,300(PN2.5,6,10,16,25,40)
End Connections:	Flangeless:RF ， Flanged:RF, FM
Flange Standard:	ANSI B16.5,GB/T 9113,JB/T 79,HG/T 20592,HG/T 20615,SH 3406
Body (Bonnet) & Disc Materials:	A216 WCB,A217 WC6,WC9 A351 CF8,CF8M,CF3,CF3M Other Special Materials Are Available
Trim Materials:	A276 410,A959 S17400,630(17-4PH),B637 Inconel 718 A182 F304,F316,F304L,F316L Other Special Materials Are Available
Disc Ring:	Stainless Steel + Graphite:-196~620℃ ，PTFE:-45~150℃ ，PTFE:-45~150℃
Seat Ring:	Carbon Steel And Alloy Steel Body: Sealing Surface 507Mo Or Stellite Alloy Overlay Welding Are Available ，Stainless Steel Body: Sealing Surface Stellite Alloy Overlay Welding Are Available
Packing:	PTFE:-45~150℃ ，Graphite: -196~620℃
Shaft Guide Bushing:	A182 F304+PTFE,A182 F316+PTFE,A182 F304L+PTFE,A182 F316L+PTFE ，Self-lubricating Bearings ，A276 410,A595 S17400,630(17-4PH) A182 F304,A182 F316,A182 F304L,A182 F316L ，Guide Surface Satellite Alloy Overlay Welding Are Available
Bonnet Type:	Integrated With The Body ，Steam Jacket Type (body-bonnet)
Disk Type:	Rotary Triple Offset Type
Seat Leakage Standard:	ANSI B16.104,ANSI/FCI 70-2,GB/T 4213,MSS SP-61(Optional)
Leakage:	Class IV, V, VI
Flow Characteristics:	Approximate EQ-%
Rangeability:	50:1( Stroke 90° ), 25:1( Stroke 60° )
Dual-Piston Gear-Rack Spring ReturnCylinder Type:	Acting Type:Air-to-close, Air-to-open， Size:SR63~700，Supply Pressure:0.4~0.5MPa，Handwheel: Side Handwheel
Dual-Piston Gear-Rack Double Acting Cylinder Type:	Acting Type:Air-to-close, Air-to-open，Size:DA45~600，Supply Pressure: 0.4~0.5MPa，Handwheel: Side Handwheel
Electric Motor:	Optional
Hydraulic Cylinder:	Optional

3'' 4'' 5'' 6'' Butterfly Valve Excellent Shut Off And Throttling Performance

V400-BR Series Butterfly Valve adopts unique triple offset sealing structure , which features excellent shut-off and throttling performance

V400-BR Series Butterfly Valve adopts unique triple offset sealing structure, which features excellent shut-off and throttling performance, smooth flow, low flow resistance and large flow capacity. It is suitable for manufacturing process control system in petrochemical, chemical, metallurgy, power-station, food, medicine, light industry and water treatment industries.

Besides the double eccentric of stem axis position eccentric, the cone axis of the disc sealing surface is deflected to the valve body cylinder axis, the disc sealing surface is asymmetry; one side is inclined to the centerline of the valve body while the other side is parallel to the centerline of the valve body, therefore the sealing structure is turned into torque sealing from position sealing. The disc sealing surface is evenly forced and can withstand high pressure.

During the opening process, all points on the disc sealing surface simultaneously break away from the seat sealing surface, No jamming, almost no friction, therefore, small opening torque.

The valve seat, integrated with the valve body, has elastomeric seal and a long lifespan after hardening treatment.

The multi-layer seal ring of the combined disc is exchangeable while the body and the disc can still be operational, therefore low maintenance cost. The disc seal ring adopts metal pieces and graphite, fitted to the seat, which possesses dual advantages of metal seal and soft seal and achieve tight shut-off in high, low temperature, erosion, abrasion resulting gap conditions. Soft seat and metal seat are optional.

All metal-seated butterfly valve has fireproof structure.

Pneumatic butterfly valve is usually equipped with dual-piston gear-rack cylinder actuator, spring return or double acting cylinder is optional. Pneumatic actuator has flexible combination and handwheel is optional. Other actuator types such as electric motor and hydraulic cylinder are also available.

Rated Cv and Stroke

Valve Size	Rated Cv		Valve Size	Rated Cv		Valve Size	Rated Cv
Valve Size	90°	60°	Valve Size	90°	60°	Valve Size	90°	60°
3 (80)	260	125	14 (350)	6700	3200	32 (800)	34700	16650
4 (100)	470	230	16 (400)	8700	4270	36 (900)	43900	21070
5 (125)	760	365	18 (450)	11000	5350	40 (1000)	54200	25940
6 (150)	1300	630	20 (500)	14400	7000	42 (1050)	59930	28680
8 (200)	2250	1100	24 (600)	21000	10100	48 (1200)	78000	37460
10 (250)	3600	1760	28 (700)	26560	12750
12 (300)	5000	2450	30 (750)	30600	14700

Flow Characteristics

Table 1 Body Materials Temperature - Pressure Range MPa

ANSI Class 600					ANSI Class 300					ANSI Class 150					(℃) Temp
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	(℃) Temp
9.93	9.93	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.15	1.90	1.90	1.98	1.98	1.96	-2938
9.62	9.56	10.34	10.34	10.02	4.81	4.78	5.17	5.17	5.01	1.84	1.83	1.95	1.95	1.92	50
8.44	8.17	10.30	10.30	9.32	4.22	4.09	5.15	5.15	4.66	1.62	1.57	1.77	1.77	1.77	100
7.70	7.40	10.03	9.95	9.02	3.85	3.70	5.03	4.97	4.51	1.48	1.42	1.58	1.58	1.58	150
7.13	6.90	9.72	9.59	8.76	3.57	3.45	4.86	4.80	4.38	1.37	1.32	1.38	1.38	1.38	200
6.68	6.50	9.27	9.27	8.39	3.34	3.25	4.63	4.63	4.19	1.21	1.21	1.21	1.21	1.21	250
6.32	6.18	8.57	8.57	7.96	3.16	3.09	4.29	4.29	3.98	1.02	1.02	1.02	1.02	1.02	300
6.18	6.04	8.26	8.26	7.74	3.09	3.02	4.14	4.14	3.87	0.93	0.93	0.93	0.93	0.93	325
6.18	6.04	8.26	8.26	7.74	3.09	3.02	4.14	4.14	3.87	0.93	0.93	0.93	0.93	0.93	325
6.07	5.93	8.04	8.04	7.51	3.03	2.96	4.03	4.03	3.76	0.84	0.84	0.84	0.84	0.84	350
5.98	5.81	7.76	7.76	7.27	2.99	2.90	3.89	3.89	3.64	0.74	0.74	0.74	0.74	0.74	375
5.89	5.69	7.33	7.33	6.94	2.94	2.84	3.65	3.65	3.47	0.65	0.65	0.65	0.65	0.65	400
5.83	5.60	7.00	7.00	5.75	2.91	2.80	3.52	3.52	2.88	0.55	0.55	0.55	0.55	0.55	425
5.77	5.48	6.77	6.77		2.88	2.74	3.37	3.37		0.46	0.46	0.46	0.46		450
5.73	5.39	6.34	6.34		2.87	2.69	3.17	3.17		0.37	0.37	0.37	0.37		475
5.65	5.30	5.65	5.15		2.82	2.65	2.82	2.57		0.28	0.28	0.28	0.28		500
5.00	4.89	3.69	2.98		2.52	2.44	1.84	1.49		0.14	0.14	0.14	0.14		538
		3.13	2.54				1.56	1.27							550
		2.11	1.76				1.05	0.88							575

Table 2 Trim Materials Temperature Range

No.	Materials	Temperature Range (℃)	Remark
1	A276 410	-29~427	Heat treatment
2	A959 S17400,630 (17-4PH)	-40~427	Heat treatment
3	B637 Inconel 718	-29~620	Heat treatment
4	A182 F304	-196~538	Solution treatment or cryogenic treatment
5	A182 F316	-196~538	Solution treatment or cryogenic treatment
6	A182 F304L	-196~450	Solution treatment or cryogenic treatment
7	A182 F316L	-196~450	Solution treatment or cryogenic treatment

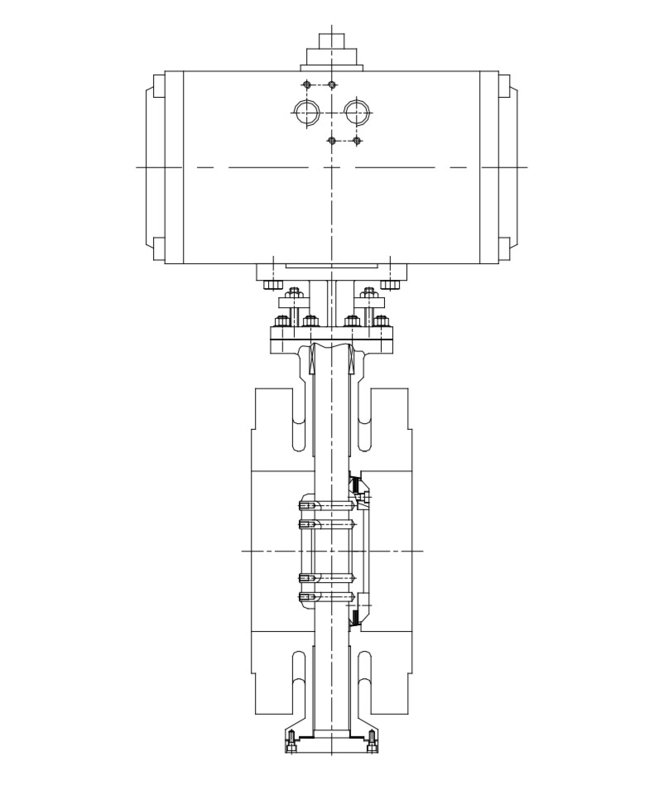

Valve Internal Construction

External Dimensions

Flangeless

ANSI 150

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	48	415	130	30	306	137	117	195	200
	140		427		30	400	152	118	205	300
	160		452		30	460	174	118	205	300
4 (100)	125	54	430	145	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
	190		500		30	530	206	118/148	205/245	300/400
5 (125)	140	57	487	165	30	400	152	118	205	300
	160		512		30	460	174	118	205	300
	190		545		30	530	206	118/148	205/245	300/400
6 (150)	140	57	492	175	30	400	152	118	205	300
	160		517		30	460	174	118	205	300
	190		550		30	530	206	118/148	205/245	300/400
	210		575		30	535	226	118/148	205/245	300/400
8 (200)	160	64	567	245	30	460	174	118	205	300
	190		600		30	530	206	118/148	205/245	300/400
	210		625		30	535	226	118/148	205/245	300/400
	240		660		30	602	256	148/150	245/265	400/600
10 (250)	190	71	635	280	30	530	206	118/148	205/245	300/400
	210		660		30	535	226	118/148	205/245	300/400
	240		695		30	602	256	148/150	245/265	400/600
	270		725		30	722	294	148/150	245/265	400/600
	300		753		30	742	324	150	265	600
12 (300)	240	81	745	315	30	602	256	148/150	245/265	400/600
	270		775		30	722	294	148/150	245/265	400/600
	300		803		30	742	324	150	265	600
	350		857		30	860	380	150/195	265/410	600/800
14 (350)	270	92	805	350	30	924	514	195	410/430	800
	300		833		30	742	324	150	265	600
	350		887		30	860	380	150/195	265/410	600/800
	400		949		30	924	514	195	410/430	800
16 (400)	300	102	873	380	30	742	324	150	265	600
	350		927		30	860	380	150/195	265/410	600/800
	400		989		30	924	514	195	410/430	800
	450		1115		60	-/1500	556	195	430	800
18 (450)	350	114	942	395	30	860	380	150/195	265/410	600/800
	400		1004		30	924	514	195	410/430	800
	450		1130		60	-/1500	556	195	430	800
20 (500)	350	127	992	435	30	860	380	150/195	265/410	600/800
	400		1054		30	924	514	195	410/430	800
	500		1290		60	-/1550	640	250	550	1000
24 (600)	400	154	1129	495	30	924	514	195	410/430	800
24 (600)	500	154	1365	495	60	-/1550	640	250	550	1000
28 (700)	500	165	1380	500	60	1250/-	640	250	550	1000
28 (700)	600	165	1420	500	60	-/2070	850	250	600	1200
30 (750)	500	165	1390	520	60	1250/-	640	250	550	1000
30 (750)	600	165	1430	520	60	-/2070	850	250	600	1200
32 (800)	500	190	1445	550	60	1250/-	640	250	550	1000
32 (800)	600	190	1485	550	60	-/2070	850	250	600	1200
36 (900)	500	203	1545	630	60	1250/-	640	250	550	1000
	600		1585		60	-/2070	850	250	600	1200
	700		1755		60	-/2700	960	-	-	-
40 (1000)	600	216	1650	680	60	1500/-	850	250	600	1200
42 (1050)	600	251	1690	720	60	1500/-	850	250	600	1200
48 (1200)	650	254	1765	795	60	1600/-	890	-	-	-

Note):In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

ANSI 300 mm

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	48	420	135	30	306	137	117	195	200
	140		432		30	400	152	118	205	300
	160		457		30	460	174	118	205	300
	190		490		30	530	206	118/148	205/245	300/400
4 (100)	125	54	445	155	30	306	137	117	195	200
	140		457		30	400	152	118	205	300
	160		482		30	460	174	118	205	300
	190		515		30	530	206	118/148	205/245	300/400
5 (125)	140	59	507	190	30	400	152	118	205	300
	160		532		30	460	174	118	205	300
	190		565		30	530	206	118/148	205/245	300/400
	210		590		30	535	226	118/148	205/245	300/400
6 (150)	160	59	557	215	30	460	174	118	205	300
	190		590		30	530	206	118/148	205/245	300/400
	210		615		30	535	226	118/148	205/245	300/400
	240		650		30	602	256	148/150	245/265	400/600
8 (200)	190	73	630	250	30	530	206	118/148	205/245	300/400
	210		655		30	535	226	118/148	205/245	300/400
	240		690		30	602	256	148/150	245/265	400/600
	270		720		30	722	294	148/150	245/265	400/600
	300		748		30	742	324	150	265	600
10 (250)	240	83	745	290	30	602	256	148/150	245/265	400/600
	270		775		30	722	294	148/150	245/265	400/600
	300		803		30	742	324	150	265	600
	350		857		30	860	380	150/195	265/410	600/800
12 (300)	270	92	805	325	30	722	294	148/150	245/265	400/600
	300		833		30	742	324	150	265	600
	350		887		30	860	380	150/195	265/410	600/800
	400		949		30	924	514	195	410/430	800
14 (350)	300	117	878	360	30	742	324	150	265	600
	350		932		30	860	380	150/195	265/410	600/800
	400		994		30	924	514	195	410/430	800
	450		1120		60	-/1500	556	195	430	800
16 (400)	350	133	982	395	30	860	380	150/195	265/410	600/800
	400		1044		30	924	514	195	410/430	800
	500		1280		60	-/1550	640	250	550	1000
18 (450)	400	149	1079	415	30	924	514	195	410/430	800
18 (450)	500	149	1315	415	60	-/1550	640	250	550	1000
20 (500)	450	159	1275	470	60	1100/-	556	195	430	800
	500		1385		60	-/1550	640	250	550	1000
	550		1405		60	-/1890	690	250	550	1000
24 (600)	500	181	1465	545	60	1250/-	640	250	550	1000
24 (600)	600	181	1505	545	60	-/2070	850	-	-	-
28 (700)	500	229	1510	540	60	1250/-	640	250	550	1000
	600		1550		60	-/2070	850	-	-	-
	700		1720		60	-/2700	960	-	-	-
30 (750)	550	241	1540	580	60	1400/-	690	250	550	1000
32 (800)	600	241	1625	630	60	1500/-	850	250	600	1200
36 (900)	600	241	1680	685	60	1500/-	850	250	600	1200
40 (1000)	700	300	1940	680	60	2100/-	960	-	-	-

Note: In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

PN16

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	105	49	393	130	20	276	114	117	195	200
	125		430		30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
4 (100)	125	56	430	145	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
5 (125)	125	64	460	170	30	306	137	117	195	200
	140		472		30	400	152	118	205	300
	160		497		30	460	174	118	205	300
	190		530		30	530	206	118/148	205/245	300/400
6 (150)	140	76	497	180	30	400	152	118	205	300
	160		522		30	460	174	118	205	300
	190		555		30	530	206	118/148	205/245	300/400
	210		580		30	535	226	118/148	205/245	300/400
8 (200)	160	89	562	230	30	460	174	118	205	300
	190		595		30	530	206	118/148	205/245	300/400
	210		620		30	535	226	118/148	205/245	300/400
	240		655		30	602	256	148/150	245/265	400/600
10 (250)	190	114	615	260	30	530	206	118/148	205/245	300/400
	210		640		30	535	226	118/148	205/245	300/400
	240		675		30	602	256	148/150	245/265	400/600
	270		705		30	722	294	148/150	245/265	400/600
12 (300)	210	114	690	285	30	535	226	118/148	205/245	300/400
	240		725		30	602	256	148/150	245/265	400/600
	270		755		30	722	294	148/150	245/265	400/600
	300		783		30	742	324	150	265	600
	350		837		30	860	380	150/195	265/410	600/800
14 (350)	240	127	770	325	30	602	256	148/150	245/265	400/600
	270		800		30	722	294	148/150	245/265	400/600
	300		828		30	742	324	150	265	600
	350		882		30	860	380	150/195	265/410	600/800
16 (400)	240	140	800	360	30	602	256	148/150	245/265	400/600
	270		830		30	722	294	148/150	245/265	400/600
	300		858		30	742	324	150	265	600
	350		912		30	860	380	150/195	265/410	600/800
	400		974		30	924	514	195	410/430	800
18 (450)	300	152	888	395	30	742	324	150	265	600
	350		942		30	860	380	150/195	265/410	600/800
	400		1004		30	924	514	195	410/430	800
	450		1130		60	-/1500	556	195	430	800
20 (500)	350	152	988	435	30	860	380	150/195	265/410	600/800
	400		1050		30	924	514	195	410/430	800
	500		1286		60	-/1550	640	250	550	1000
24 (600)	400	154	1119	495	30	924	514	195	410/430	800
24 (600)	500	154	1355	495	60	-/1550	640	250	550	1000
28 (700)	450	165	1310	525	60	1100/-	556	195	430	800
28 (700)	500	165	1420	525	60	-/1550	640	250	550	1000
32 (800)	500	190	1510	595	60	1250/-	640	250	550	1000
32 (800)	600	190	1550	595	60	-/2070	850	-	-	-
36 (900)	500	203	1560	650	60	1250/-	640	250	550	1000
	600		1600		60	-/2070	850	-	-	-
	700		1770		60	-/2700	960	-	-	-
40 (1000)	500	216	1640	725	60	1250/-	640	250	550	1000
	600		1680		60	-/2070	850	-	-	-
	700		1850		60	-/2700	960	-	-	-
48 (1200)	600	254	1760	815	60	1500/-	850	250	600	1200

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

PN25 mm

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	49	430	140	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
4 (100)	125	56	430	155	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
	190		500		30	530	206	118/148	205/245	300/400
5 (125)	140	64	492	175	30	400	152	118	205	300
	160		517		30	460	174	118	205	300
	190		550		30	530	206	118/148	205/245	300/400
6 (150)	140	76	502	190	30	400	152	118	205	300
	160		527		30	460	174	118	205	300
	190		560		30	530	206	118/148	205/245	300/400
	210		585		30	535	226	118/148	205/245	300/400
8 (200)	160	89	562	230	30	460	174	118	205	300
	190		595		30	530	206	118/148	205/245	300/400
	210		620		30	535	226	118/148	205/245	300/400
	240		655		30	602	256	148/150	245/265	400/600
10 (250)	190	114	630	270	30	530	206	118/148	205/245	300/400
	210		655		30	535	226	118/148	205/245	300/400
	240		690		30	602	256	148/150	245/265	400/600
	270		720		30	722	294	148/150	245/265	400/600
	300		748		30	742	324	150	265	600
12 (300)	240	114	750	315	30	602	256	148/150	245/265	400/600
	270		780		30	722	294	148/150	245/265	400/600
	300		808		30	742	324	150	265	600
	350		862		30	860	380	150/195	265/410	600/800
14 (350)	270	127	810	345	30	924	514	195	410/430	800
	300		838		30	742	324	150	265	600
	350		892		30	860	380	150/195	265/410	600/800
	400		954		30	924	514	195	410/430	800
16 (400)	300	140	886	385	30	742	324	150	265	600
	350		940		30	860	380	150/195	265/410	600/800
	400		1002		30	924	514	195	410/430	800
	450		1128		60	-/1500	556	195	430	800
18 (450)	350	152	957	410	30	860	380	150/195	265/410	600/800
	400		1019		30	924	514	195	410/430	800
	450		1145		60	-/1500	556	195	430	800
20 (500)	350	152	1007	441	30	860	380	150/195	265/410	600/800
	400		1069		30	924	514	195	410/430	800
	500		1305		60	-/1550	640	250	550	1000
24 (600)	400	154	1124	500	30	924	514	195	410/430	800
24 (600)	500	154	1360	500	60	-/1550	640	250	550	1000
28 (700)	500	165	1435	565	60	1250/-	640	250	550	1000
28 (700)	600	165	1475	565	60	-/2070	850	250	600	1200
32 (800)	500	190	1495	625	60	1250/-	640	250	550	1000
32 (800)	600	190	1535	625	60	-/2070	850	250	600	1200
36 (900)	500	203	1595	670	60	1250/-	640	250	550	1000
	600		1635		60	-/2070	850	250	600	1200
	700		1805		60	-/2700	960	-	-	-
40 (1000)	600	216	1710	750	60	1500/-	850	250	600	1200
48 (1200)	650	254	1875	855	60	1600/-	890	-	-	-

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

PN40

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	49	430	140	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
	190		500		30	530	206	118/148	205/245	300/400
4 (100)	125	56	440	155	30	306	137	117	195	200
	140		452		30	400	152	118	205	300
	160		477		30	460	174	118	205	300
	190		510		30	530	206	118/148	205/245	300/400
5 (125)	140	64	492	175	30	400	152	118	205	300
	160		517		30	460	174	118	205	300
	190		550		30	530	206	118/148	205/245	300/400
	210		575		30	535	226	118/148	205/245	300/400
6 (150)	160	76	547	205	30	460	174	118	205	300
	190		580		30	530	206	118/148	205/245	300/400
	210		605		30	535	226	118/148	205/245	300/400
	240		640		30	602	256	148/150	245/265	400/600
8 (200)	190	89	595	260	30	530	206	118/148	205/245	300/400
	210		620		30	535	226	118/148	205/245	300/400
	240		655		30	602	256	148/150	245/265	400/600
	270		685		30	722	294	148/150	245/265	400/600
	300		713		30	742	324	150	265	600
10 (250)	240	114	735	300	30	602	256	148/150	245/265	400/600
	270		765		30	722	294	148/150	245/265	400/600
	300		793		30	742	324	150	265	600
	350		847		30	860	380	150/195	265/410	600/800
12 (300)	270	114	790	330	30	722	294	148/150	245/265	400/600
	300		818		30	742	324	150	265	600
	350		872		30	860	380	150/195	265/410	600/800
	400		934		30	924	514	195	410/430	800
14 (350)	300	127	853	360	30	742	324	150	265	600
	350		907		30	860	380	150/195	265/410	600/800
	400		969		30	924	514	195	410/430	800
	450		1095		60	-/1500	556	195	430	800
16 (400)	350	140	972	410	30	860	380	150/195	265/410	600/800
	400		1034		30	924	514	195	410/430	800
	500		1270		60	-/1550	640	250	550	1000
18 (450)	400	152	1044	420	30	924	514	195	410/430	800
18 (450)	500	152	1280	420	60	-/1550	640	250	550	1000
20 (500)	450	152	1245	455	60	1100/-	556	195	430	800
	500		1355		60	-/1550	640	250	550	1000
	550		1375		60	-/1890	690	250	550	1000
24 (600)	500	178	1455	530	60	1250/-	640	250	550	1000
24 (600)	600	178	1495	530	60	-/2070	850	-	-	-
28 (700)	500	229	1515	585	60	1250/-	640	250	550	1000
	600		1555		60	-/2070	850	-	-	-
	700		1725		60	-/2700	960	-	-	-
32 (800)	600	241	1635	665	60	1500/-	850	250	600	1200

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

Flanged

ANSI 150

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	114	415	130	30	306	137	117	195	200
	140		427		30	400	152	118	205	300
	160		452		30	460	174	118	205	300
4 (100)	125	127	430	145	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
	190		500		30	530	206	118/148	205/245	300/400
5 (125)	140	140	472	165	30	400	152	118	205	300
	160		497		30	460	174	118	205	300
	190		530		30	530	206	118/148	205/245	300/400
6 (150)	140	140	492	175	30	400	152	118	205	300
	160		517		30	460	174	118	205	300
	190		550		30	530	206	118/148	205/245	300/400
	210		575		30	535	226	118/148	205/245	300/400
8 (200)	160	152	567	245	30	460	174	118	205	300
	190		600		30	530	206	118/148	205/245	300/400
	210		625		30	535	226	118/148	205/245	300/400
	240		660		30	602	256	148/150	245/265	400/600
10 (250)	190	165	635	280	30	530	206	118/148	205/245	300/400
	210		660		30	535	226	118/148	205/245	300/400
	240		695		30	602	256	148/150	245/265	400/600
	270		725		30	722	294	148/150	245/265	400/600
	300		753		30	742	324	150	265	600
12 (300)	240	178	745	315	30	602	256	148/150	245/265	400/600
	270		775		30	722	294	148/150	245/265	400/600
	300		803		30	742	324	150	265	600
	350		857		30	860	380	150/195	265/410	600/800
14 (350)	270	190	805	350	30	924	514	195	410/430	800
	300		833		30	742	324	150	265	600
	350		887		30	860	380	150/195	265/410	600/800
	400		949		30	924	514	195	410/430	800
16 (400)	300	216	873	380	30	742	324	150	265	600
	350		927		30	860	380	150/195	265/410	600/800
	400		989		30	924	514	195	410/430	800
	450		1115		60	-/1500	556	195	430	800
18 (450)	350	222	942	395	30	860	380	150/195	265/410	600/800
	400		1004		30	924	514	195	410/430	800
	450		1130		60	-/1500	556	195	430	800
20 (500)	350	229	992	435	30	860	380	150/195	265/410	600/800
	400		1054		30	924	514	195	410/430	800
	500		1290		60	-/1550	640	250	550	1000
24 (600)	400	267	1129	495	30	924	514	195	410/430	800
24 (600)	500	267	1365	495	60	-/1550	640	250	550	1000
28 (700)	500	292	1380	500	60	1250/-	640	250	550	1000
28 (700)	600	292	1420	500	60	-/2070	850	250	600	1200
30 (750)	500	318	1390	520	60	1250/-	640	250	550	1000
30 (750)	600	318	1430	520	60	-/2070	850	250	600	1200
32 (800)	500	318	1445	550	60	1250/-	640	250	550	1000
32 (800)	600	318	1485	550	60	-/2070	850	250	600	1200
36 (900)	500	330	1545	630	60	1250/-	640	250	550	1000
	600		1585		60	-/2070	850	250	600	1200
	700		1755		60	-/2700	960	-	-	-
40 (1000)	600	410	1650	680	60	1500/-	850	250	600	1200
42 (1050)	600	410	1690	720	60	1500/-	850	250	600	1200
48 (1200)	650	470	1765	795	60	1600/-	890	-	-	-

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

ANSI 300

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	180	420	135	30	306	137	117	195	200
	140		432		30	400	152	118	205	300
	160		457		30	460	174	118	205	300
	190		490		30	530	206	118/148	205/245	300/400
4 (100)	125	190	445	155	30	306	137	117	195	200
	140		457		30	400	152	118	205	300
	160		482		30	460	174	118	205	300
	190		515		30	530	206	118/148	205/245	300/400
5 (125)	140	200	462	185	30	400	152	118	205	300
	160		487		30	460	174	118	205	300
	190		520		30	530	206	118/148	205/245	300/400
	210		545		30	535	226	118/148	205/245	300/400
6 (150)	160	210	557	215	30	460	174	118	205	300
	190		590		30	530	206	118/148	205/245	300/400
	210		615		30	535	226	118/148	205/245	300/400
	240		650		30	602	256	148/150	245/265	400/600
8 (200)	190	230	630	250	30	530	206	118/148	205/245	300/400
	210		655		30	535	226	118/148	205/245	300/400
	240		690		30	602	256	148/150	245/265	400/600
	270		720		30	722	294	148/150	245/265	400/600
	300		748		30	742	324	150	265	600
10 (250)	240	250	745	290	30	602	256	148/150	245/265	400/600
	270		775		30	722	294	148/150	245/265	400/600
	300		803		30	742	324	150	265	600
	350		857		30	860	380	150/195	265/410	600/800
12 (300)	270	270	805	325	30	722	294	148/150	245/265	400/600
	300		833		30	742	324	150	265	600
	350		887		30	860	380	150/195	265/410	600/800
	400		949		30	924	514	195	410/430	800
14 (350)	300	290	878	360	30	742	324	150	265	600
	350		932		30	860	380	150/195	265/410	600/800
	400		994		30	924	514	195	410/430	800
	450		1120		60	-/1500	556	195	430	800
16 (400)	350	310	982	395	30	860	380	150/195	265/410	600/800
	400		1044		30	924	514	195	410/430	800
	500		1280		60	-/1550	640	250	550	1000
18 (450)	400	330	1079	415	30	924	514	195	410/430	800
18 (450)	500	330	1315	415	60	-/1550	640	250	550	1000
20 (500)	450	350	1275	470	60	1100/-	556	195	430	800
	500		1385		60	-/1550	640	250	550	1000
	550		1405		60	-/1890	690	250	550	1000
24 (600)	500	390	1465	545	60	1250/-	640	250	550	1000
24 (600)	600	390	1505	545	60	-/2070	850	-	-	-
28 (700)	500	430	1510	540	60	1250/-	640	250	550	1000
	600		1550		60	-/2070	850	-	-	-
	700		1720		60	-/2700	960	-	-	-
30 (750)	550	450	1540	580	60	1400/-	690	250	550	1000
32 (800)	600	470	1625	630	60	1500/-	850	250	600	1200
36 (900)	600	510	1680	685	60	1500/-	850	250	600	1200
40 (1000)	700	550	1940	680	60	2100/-	960	-	-	-

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

PN16

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	105	114	378	130	20	276	114	117	195	200
	125		415		30	306	137	117	195	200
	140		427		30	400	152	118	205	300
	160		452		30	460	174	118	205	300
4 (100)	125	127	430	155	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
5 (125)	125	140	460	165	30	306	137	117	195	200
	140		472		30	400	152	118	205	300
	160		497		30	460	174	118	205	300
	190		530		30	530	206	118/148	205/245	300/400
6 (150)	140	140	497	175	30	400	152	118	205	300
	160		522		30	460	174	118	205	300
	190		555		30	530	206	118/148	205/245	300/400
	210		580		30	535	226	118/148	205/245	300/400
8 (200)	160	152	567	230	30	460	174	118	205	300
	190		600		30	530	206	118/148	205/245	300/400
	210		625		30	535	226	118/148	205/245	300/400
	240		660		30	602	256	148/150	245/265	400/600
10 (250)	190	165	635	275	30	530	206	118/148	205/245	300/400
	210		660		30	535	226	118/148	205/245	300/400
	240		695		30	602	256	148/150	245/265	400/600
	270		725		30	722	294	148/150	245/265	400/600
12 (300)	210	178	715	310	30	535	226	118/148	205/245	300/400
	240		750		30	602	256	148/150	245/265	400/600
	270		780		30	722	294	148/150	245/265	400/600
	300		808		30	742	324	150	265	600
	350		862		30	860	380	150/195	265/410	600/800
14 (350)	240	190	775	345	30	602	256	148/150	245/265	400/600
	270		805		30	722	294	148/150	245/265	400/600
	300		833		30	742	324	150	265	600
	350		887		30	860	380	150/195	265/410	600/800
16 (400)	240	216	810	370	30	602	256	148/150	245/265	400/600
	270		840		30	722	294	148/150	245/265	400/600
	300		868		30	742	324	150	265	600
	350		922		30	860	380	150/195	265/410	600/800
	400		984		30	924	514	195	410/430	800
18 (450)	300	222	893	410	30	742	324	150	265	600
	350		947		30	860	380	150/195	265/410	600/800
	400		1009		30	924	514	195	410/430	800
	450		1135		60	-/1500	556	195	430	800
20 (500)	350	229	997	440	30	860	380	150/195	265/410	600/800
	400		1059		30	924	514	195	410/430	800
	500		1295		60	-/1550	640	250	550	1000
24 (600)	400	267	1119	495	30	924	514	195	410/430	800
24 (600)	500	267	1355	495	60	-/1550	640	250	550	1000
28 (700)	450	292	1280	530	60	1100/-	556	195	430	800
28 (700)	500	292	1390	530	60	-/1550	640	250	550	1000
32 (800)	500	318	1485	585	60	1250/-	640	250	550	1000
32 (800)	600	318	1525	585	60	-/2070	850	-	-	-
36 (900)	500	330	1560	635	60	1250/-	640	250	550	1000
	600		1600		60	-/2070	850	-	-	-
	700		1770		60	-/2700	960	-	-	-
40 (1000)	500	410	1630	715	60	1250/-	640	250	550	1000
	600		1670		60	-/2070	850	-	-	-
	700		1840		60	-/2700	960	-	-	-
48 (1200)	600	470	1740	815	60	1500/-	850	250	600	1200

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

PN25

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	114	420	130	30	306	137	117	195	200
	140		432		30	400	152	118	205	300
	160		457		30	460	174	118	205	300
4 (100)	125	127	435	155	30	306	137	117	195	200
	140		447		30	400	152	118	205	300
	160		472		30	460	174	118	205	300
	190		505		30	530	206	118/148	205/245	300/400
5 (125)	140	140	482	175	30	400	152	118	205	300
	160		507		30	460	174	118	205	300
	190		540		30	530	206	118/148	205/245	300/400
6 (150)	140	140	507	185	30	400	152	118	205	300
	160		532		30	460	174	118	205	300
	190		565		30	530	206	118/148	205/245	300/400
	210		590		30	535	226	118/148	205/245	300/400
8 (200)	160	152	582	245	30	460	174	118	205	300
	190		615		30	530	206	118/148	205/245	300/400
	210		640		30	535	226	118/148	205/245	300/400
	240		675		30	602	256	148/150	245/265	400/600
10 (250)	190	165	650	275	30	530	206	118/148	205/245	300/400
	210		675		30	535	226	118/148	205/245	300/400
	240		710		30	602	256	148/150	245/265	400/600
	270		740		30	722	294	148/150	245/265	400/600
	300		768		30	742	324	150	265	600
12 (300)	240	178	745	310	30	602	256	148/150	245/265	400/600
	270		775		30	722	294	148/150	245/265	400/600
	300		803		30	742	324	150	265	600
	350		857		30	860	380	150/195	265/410	600/800
14 (350)	270	190	820	350	30	924	514	195	410/430	800
	300		848		30	742	324	150	265	600
	350		902		30	860	380	150/195	265/410	600/800
	400		964		30	924	514	195	410/430	800
16 (400)	300	216	893	395	30	742	324	150	265	600
	350		947		30	860	380	150/195	265/410	600/800
	400		1009		30	924	514	195	410/430	800
	450		1135		60	-/1500	556	195	430	800
18 (450)	350	220	997	415	30	860	380	150/195	265/410	600/800
	400		1059		30	924	514	195	410/430	800
	450		1185		60	-/1500	556	195	430	800
20 (500)	350	229	1022	440	30	860	380	150/195	265/410	600/800
	400		1084		30	924	514	195	410/430	800
	500		1320		60	-/1550	640	250	550	1000
24 (600)	400	267	1144	495	30	924	514	195	410/430	800
24 (600)	500	267	1380	495	60	-/1550	640	250	550	1000
28 (700)	500	292	1440	565	60	1250/-	640	250	550	1000
28 (700)	600	292	1480	565	60	-/2070	850	250	600	1200
32 (800)	500	318	1520	620	60	1250/-	640	250	550	1000
32 (800)	600	318	1560	620	60	-/2070	850	250	600	1200
36 (900)	500	330	1620	670	60	1250/-	640	250	550	1000
	600		1660		60	-/2070	850	250	600	1200
	700		1830		60	-/2700	960	-	-	-
40 (1000)	600	410	1735	745	60	1500/-	850	250	600	1200
48 (1200)	650	470	1905	845	60	1600/-	890	-	-	-

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,
while the right refers to spring return cylinder.

PN40

Valve size inch(mm)	Actuator size	A	H	H1	Cylinder			Handwheel
Valve size inch(mm)	Actuator size	A	H	H1	C	L	B	H2	E	Ød
3 (80)	125	180	430	150	30	306	137	117	195	200
	140		442		30	400	152	118	205	300
	160		467		30	460	174	118	205	300
	190		500		30	530	206	118/148	205/245	300/400
4 (100)	125	190	455	160	30	306	137	117	195	200
	140		467		30	400	152	118	205	300
	160		492		30	460	174	118	205	300
	190		525		30	530	206	118/148	205/245	300/400
5 (125)	140	200	492	185	30	400	152	118	205	300
	160		517		30	460	174	118	205	300
	190		550		30	530	206	118/148	205/245	300/400
	210		575		30	535	226	118/148	205/245	300/400
6 (150)	160	210	532	215	30	460	174	118	205	300
	190		565		30	530	206	118/148	205/245	300/400
	210		590		30	535	226	118/148	205/245	300/400
	240		625		30	602	256	148/150	245/265	400/600
8 (200)	190	230	615	250	30	530	206	118/148	205/245	300/400
	210		640		30	535	226	118/148	205/245	300/400
	240		675		30	602	256	148/150	245/265	400/600
	270		705		30	722	294	148/150	245/265	400/600
	300		733		30	742	324	150	265	600
10 (250)	240	250	735	285	30	602	256	148/150	245/265	400/600
	270		765		30	722	294	148/150	245/265	400/600
	300		793		30	742	324	150	265	600
	350		847		30	860	380	150/195	265/410	600/800
12 (300)	270	270	810	335	30	722	294	148/150	245/265	400/600
	300		838		30	742	324	150	265	600
	350		892		30	860	380	150/195	265/410	600/800
	400		954		30	924	514	195	410/430	800
14 (350)	300	290	863	355	30	742	324	150	265	600
	350		917		30	860	380	150/195	265/410	600/800
	400		979		30	924	514	195	410/430	800
	450		1105		60	-/1500	556	195	430	800
16 (400)	350	310	977	395	30	860	380	150/195	265/410	600/800
	400		1039		30	924	514	195	410/430	800
	500		1275		60	-/1550	640	250	550	1000
18 (450)	400	330	1064	410	30	924	514	195	410/430	800
18 (450)	500	330	1300	410	60	-/1550	640	250	550	1000
20 (500)	450	350	1255	445	60	1100/-	556	195	430	800
	500		1365		60	-/1550	640	250	550	1000
	550		1385		60	-/1890	690	250	550	1000
24 (600)	500	390	1440	520	60	1250/-	640	250	550	1000
24 (600)	600	390	1480	520	60	-/2070	850	-	-	-
28 (700)	500	430	1470	575	60	1250/-	640	250	550	1000
	600		1510		60	-/2070	850	-	-	-
	700		1680		60	-/2700	960	-	-	-
32 (800)	600	470	1605	650	60	1500/-	850	250	600	1200

Note:In the “Cylinder” and “Handwheel” column, the left value refers to double acting cylinder,

while the right refers to spring return cylinder.

Numbering System

Tags:

Control Valves

Servo Valves

Proportional Valve

Ball Valves

Gate Valves

Hydraulic Valve

Butterfly Valves

Check Valves

Industrial Valves

Stainless Steel Valves

Water Valves

3'' 4'' 5'' 6'' Butterfly Valve Excellent Shut Off And Throttling Performance

5'' Butterfly Valves

6'' Butterfly Valves

3'' bf valve

Butterfly Valve,

shut off butterfly valve,

bf valve

Fluorine Lining Butterfly Valve Bisection Two Piece Cast Type

ANSI 150 Hard Seal Regulating Shut Off Butterfly Valves Flat Casting Type

Anti Corrosion Lined Plastic Butterfly Valve 50mm 80mm 100mm 150mm 200mm 250mm 300mm

Electric Control Shut Off Butterfly Valves Double Eccentric 4-20mA DC

Control Valves

Servo Valves

Proportional Valve

Ball Valves

Gate Valves

Hydraulic Valve

Butterfly Valves
