V200-CGN Series Low Noise Cage Control Valve (Multi-Hole)

Name: V200-CGN Series Low Noise Cage Control Valve (Multi-Hole)
Brand: WEYO AUTO TECH
SKU: V200-CGN Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: V200-CGN Series

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders. 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            low noise cage control valve, low noise cage type control valve, pn16 cage control valve


Type:	THREE WAY	Body Size:	1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings:	ANSI150 300 600LB PN16 PN40 PN63 PN100	Connections:	Flanged(RF FF FM RJ) Weld Ends(SW BW)
Body Bonnet Material:	A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other Special Materials Can Be Provided According To Customers’need.	Trim Material:	410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial Or All Stellite Alloy Overlay Welding According To Requirements/Other Special Materials Can Be Provided According To Customers’need.
Balance Seal:	Fluorine Rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ GRAPHITE：230 ～ 620℃	Packing:	PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide:	PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃	Bonnet Type:	Standard Type ：-17 ～ 230℃ , Fin-Extension Type ：230 ～ 620℃ ，-45 ～ -17℃ , Ong-Extension Type ：-196 ～ -45℃ , Bellows Seal Type , Steam Jacket Type
Plug Type:	Unbalanced	Seat Leakage Standard:	ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage:	IV V	Flow Characteristics:	(EQ-%) (Linear)
Rangeability:	30:1 ; 50:1	Diaphragm Type:	Work Way : Direct Action、Reverse Action , Size: 250 290 370 370H 480 480H 550 , Supply Pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring Range: 80-280KPa , Handle: (Top Handle) (Side Handle)
PNEUMATIC CYLINDER:	Work Way : Double Action , Size: 12″ 16″ 20″, Supply Pressure:500KPa , Handle: Side Handle	Electric Motor:	Selectable
Hydraulic Cylinder:	Optional

Type:	THREE WAY
Body Size:	1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings:	ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections:	Flanged(RF FF FM RJ) Weld Ends(SW BW)
Body Bonnet Material:	A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other Special Materials Can Be Provided According To Customers’need.
Trim Material:	410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial Or All Stellite Alloy Overlay Welding According To Requirements/Other Special Materials Can Be Provided According To Customers’need.
Balance Seal:	Fluorine Rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ GRAPHITE：230 ～ 620℃
Packing:	PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide:	PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type:	Standard Type ：-17 ～ 230℃ , Fin-Extension Type ：230 ～ 620℃ ，-45 ～ -17℃ , Ong-Extension Type ：-196 ～ -45℃ , Bellows Seal Type , Steam Jacket Type
Plug Type:	Unbalanced
Seat Leakage Standard:	ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage:	IV V
Flow Characteristics:	(EQ-%) (Linear)
Rangeability:	30:1 ; 50:1
Diaphragm Type:	Work Way : Direct Action、Reverse Action , Size: 250 290 370 370H 480 480H 550 , Supply Pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring Range: 80-280KPa , Handle: (Top Handle) (Side Handle)
PNEUMATIC CYLINDER:	Work Way : Double Action , Size: 12″ 16″ 20″, Supply Pressure:500KPa , Handle: Side Handle
Electric Motor:	Selectable
Hydraulic Cylinder:	Optional

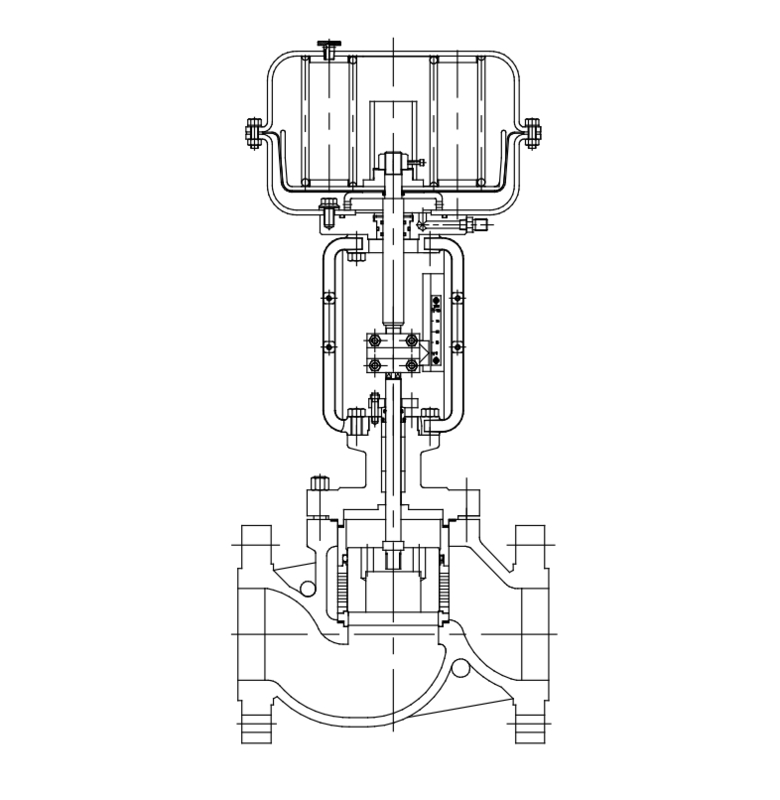

V200-CGN Series Low Noise Cage Control Valve (Multi-Hole)

V200-CGN Series Low Noise Cage Control Valve features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional.

The series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. The multi-hole cage type provides noise reduction and anti-cavitation. The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.

Rated Cv and Stroke

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
EQ-% 1-Stage				LINEAR 1-Stage
1 1/2 (40)	1 1/2 (40)	22	20	1 1/2 (40)	1 1/2 (40)	25	20
2 (50)	2 (50)	36	30	2 (50)	2 (50)	40	30
2 (50)	1 1/2 (40)	22	30	2 (50)	1 1/2 (40)	25	30
2 1/2 (65)	2 1/2 (65)	55	30	2 1/2 (65)	2 1/2 (65)	65	30
	2 (50)	36	30		2 (50)	40	30
	1 1/2 (40)	22	30		1 1/2 (40)	25	30
3 (80)	3 (80)	80	40	3 (80)	3 (80)	100	40
	2 1/2 (65)	70	40		2 1/2 (65)	70	40
	2 (50)	40	40		2 (50)	40	40
4 (100	4 (100	130	40	4 (100	4 (100	150	40
	3 (80)	80	40		3 (80)	100	40
	2 1/2 (65)	70	40		2 1/2 (65)	70	40
5 (125)	5 (125)	220	60	5 (125)	5 (125)	280	60
	4 (100	170	60		4 (100	170	60
	3 (80)	100	60		3 (80)	100	60
6 (150)	6 (150)	250	60	6 (150)	6 (150)	320	60
	5 (125)	220	60		5 (125)	280	60
	4 (100	170	60		4 (100	170	60
8 (200)	8 (200)	450	70	8 (200)	8 (200)	560	70
	7 (175)	400	70		7 (175)	500	70
	6 (150)	320	70		6 (150)	380	70
10 (250)	10 (250)	770	90	10 (250)	10 (250)	970	90
10 (250)	8 (200)	560	90	10 (250)	8 (200)	700	90
12 (300)	12 (300)	1000	120	12 (300)	12 (300)	1300	120
12 (300)	10 (250)	900	120	12 (300)	10 (250)	1100	120

14 (350)	14 (350)	1500	150	14 (350)	14 (350)	1900	150
14 (350)	12 (300)	1200	150	14 (350)	12 (300)	1500	150
16 (400)	16 (400)	1800	160	16 (400)	16 (400)	2200	160
16 (400)	14 (350)	1600	160	16 (400)	14 (350)	2000	160
18 (450)	18 (450)	2600	200	18 (450)	18 (450)	3200	200
18 (450)	16 (400)	2100	200	18 (450)	16 (400)	2600	200
20 (500)	20 (500)	2900	200	20 (500)	20 (500)	3600	200
20 (500)	18 (450)	2600	200	20 (500)	18 (450)	3200	200
EQ-% 2-Stage				LINEAR 2-Stage
2 (50)	1 1/2 (40)	22	30	2 (50)	1 1/2 (40)	25	30
2 1/2 (65)	2 (50)	36	30	2 1/2 (65)	2 (50)	40	30
2 1/2 (65)	1 1/2 (40)	22	30	2 1/2 (65)	1 1/2 (40)	25	30
3 (80)	2 1/2(65)	70	40	3 (80)	2 1/2(65)	70	40
	2 (50)	36	40		2 (50)	40	40
	1 1/2 (40)	22	40		1 1/2 (40)	25	40
4 (100	3 (80)	80	40	4 (100	3 (80)	100	40
	2 1/2(65)	70	40		2 1/2(65)	70	40
	2 (50)	40	40		2 (50)	40	40
5 (125)	4 (100)	170	60	5 (125)	4 (100)	170	60
	3 (80)	100	60		3 (80)	100	60
	2 1/2(65)	70	60		2 1/2(65)	70	60
6 (150)	5 (125)	220	60	6 (150)	5 (125)	280	60
	4 (100)	170	60		4 (100)	170	60
	3 (80)	100	60		3 (80)	100	60
8 (200)	7 (175)	400	60	8 (200)	7 (175)	500	60
	6(150)	320	60		6(150)	380	60
	5(125)	220	60		5(125)	280	60
10(250)	8 (200)	450	90	10(250)	8 (200)	560	90
	7 (175)	400	90		7 (175)	500	90
	6 (150)	320	90		6 (150)	380	90

12 (300)	10 (250)	900	120	12 (300)	10 (250)	1100	120
12 (300)	8 (200)	450	120	12 (300)	8 (200)	560	120
14 (350)	12 (300)	1200	150	14 (350)	12 (300)	1500	150
14 (350)	10 (250)	900	150	14 (350)	10 (250)	1100	150
16 (400)	14 (350)	1600	160	16 (400)	14 (350)	2000	160
16 (400)	12 (300)	1200	160	16 (400)	12 (300)	1500	160
18 (450)	16 (400)	2100	200	18 (450)	16 (400)	2600	200
18 (450)	14 (350)	1600	200	18 (450)	14 (350)	2000	200
20 (500)	18 (450)	2600	200	20 (500)	18 (450)	3200	200
20 (500)	16 (400)	2100	200	20 (500)	16 (400)	2600	200
EQ-% 3-Stage				LINEAR 3-Stage
2 1/2 (65)	1 1/2 (40)	22	30	2 1/2 (65)	1 1/2 (40)	25	30
3 (80)	2 (50)	40	40	3 (80)	2 (50)	40	40
4 (100	2 1/2(65)	70	40	4 (100	2 1/2(65)	70	40
5 (125)	3 (80)	100	60	5 (125)	3 (80)	100	60
6 (150)	4 (100)	170	60	6 (150)	4 (100)	170	60
8 (200)	6 (150)	320	70	8 (200)	6 (150)	380	70
10 (250)	8 (200)	560	90	10 (250)	8 (200)	700	90
12 (300)	10(250)	900	120	12 (300)	10(250)	1100	120
14 (350)	12 (300)	1200	150	14 (350)	12 (300)	1500	150
16 (400)	14 (350)	1600	160	16 (400)	14 (350)	2000	160
18 (450)	16 (400)	2100	200	18 (450)	16 (400)	2600	200
20 (500)	18 (450)	2600	200	20 (500)	18 (450)	3200	200

Body Material Temperature - Pressure Range (Table 3)

standard working pressure MPa

600LB					300LB					150LB					℃
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	℃
9.93	9.92	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.11	1.90	1.90	2.00	2.00	1.96	-29～38
9.63	9.57	10.24	10.23	10.02	4.81	4.78	5.12	5.11	5.01	1.84	1.84	1.92	1.92	1.92	50
8.44	8.18	9.81	9.75	9.28	4.22	4.09	4.90	4.88	4.64	1.62	1.57	1.77	1.77	1.77	100
7.70	7.27	9.33	9.27	9.05	3.85	3.63	4.66	4.64	4.52	1.48	1.39	1.58	1.58	1.58	150
7.13	6.55	8.97	9.10	8.76	3.77	3.28	4.48	4.55	4.38	1.37	1.26	1.40	1.40	1.40	200
6.68	6.11	8.84	8.89	8.34	3.34	3.05	4.42	4.45	4.17	1.21	1.17	1.21	1.20	1.21	250
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.08	5.61	8.05	8.05	7.39	3.04	2.81	4.02	4.02	3.70	0.84	0.84	0.84	0.84	0.84	350
5.94	5.55	7.76	7.76	7.29	2.97	2.78	3.88	3.88	3.65	0.74	0.74	0.74	0.74	0.74	375
5.82	5.49	7.32	7.32	6.90	2.91	2.75	3.66	3.66	3.45	0.65	0.65	0.65	0.65	0.65	400
5.73	5.43	7.02	7.02	5.75	2.87	2.72	3.51	3.51	2.88	0.56	0.56	0.56	0.56	0.56	425
5.62	5.37	6.76	6.76		2.81	2.69	3.38	3.38		0.47	0.47	0.47	0.47	/	450
5.47	5.31	6.33	6.33		2.74	2.66	3.17	3.17		0.37	0.37	0.37	0.37	/	475
5.37	5.21	5.56	5.56		2.68	2.61	2.78	2.78		0.28	0.28	0.28	0.28	/	500
5.16	4.78	4.38	4.05		2.58	2.39	2.19	2.03		0.19	0.19	0.19	0.19	/	525
4.99	4.36	3.27			2.50	2.18	1.64			0.13	0.13	0.13		/	550
4.82	4.01	2.34			2.41	2.01	1.17			0.13	0.13	0.13		/	575

Trim Material Temperature Range

No.	Material	℃ Temperature Range	Remark
1	410	-29～427	Heat treatment
2	440	-29～427	Heat treatment
3	17-4PH	-29～427	Heat treatment
4	INCONEL718	-29～620
5	F11+STF	-29～510	Partial or all stellite alloy overlay welding according to requirements
6	F22+STF	-29～550	Partial or all stellite alloy overlay welding according to requirements
7	F91+STF	-29～620	Partial or all stellite alloy overlay welding according to requirements
8	304	-196～538	Partial or all stellite alloy overlay welding according to requirements
9	316	-196～538	Partial or all stellite alloy overlay welding according to requirements
10	304L	-196～538	Partial or all stellite alloy overlay welding according to requirements
11	316L	-196～538	Partial or all stellite alloy overlay welding according to requirements

Valve Internal Structure

No.	Name	(Q’ty)
1	body	1
2	bonnet	1
3	seat	1
4	plug	1
5	stem	1
6	guide	1
7	balance seal	1
8	balance cylinder	1
13	seat gasket	2
14	bonnet gasket	1
15	packing	1
16	packing	1
17	stem guide	1
18	packing follower	1
19	packing flange	1

Allowable differential pressure (Table5)

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

DA: Direct action MPa

12"			550			480			370			290			Actuator specification
0.5			0.36			0.36			0.36			0.28			Supply pressure MPa
60-200			80-210/60 80-240/70 80-280/90			110-220/40 80-250/60 80-280/70			130~230/20 80~230/30 80~280/40			60~170/20 60~220/30			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
									-	10	-	3	-	10	40	1-1/2	inch/ mm
									-	10	-	3	-	10	50	2
						-	10	-	3	-	10	-	-	-	65	2-1/2
							10		3	-	10	-	-	-	80	3
							10		3	-	10	-	-	-	100	4
				10		3	-	10		-	-	-	-	-	125	5
				10		3	-	10		-	-	-	-	-	150	6
				10		3		10		-	-	-	-		175	7
	10					3	-	10							200	8
	10		3		10										250	10
3		10													300	12
3		10													350	14
															400	16
															450	18
															500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring(continued)

DA:Direct action MPa

20"			16"			Actuator specification
0.5			0.5			Supply pressure MPa
60-200			60-200			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	Sealing surface Leakage
						40	1-1/2	inch/ mm
						50	2
						65	2-1/2
						80	3
						100	4
						125	5
						150	6
						175	7
						200	8
						250	10
				10		300	12
				10		350	14
	10		3		10	400	16
	10		3		10	450	18
3	10	10				500	20

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

DA: Direct action MPa

20"		16"		12"		550		480		370		290		Actuator specification
0.5		0.5		0.5		0.36		0.36		0.36		0.28		Supply pressure MPa
60-200		60-200		60-200		80-210/60 80-240/70 80-280/90		110-220/40 80-250/60 80-280/70		130~230/20 80~230/30 80~280/40		60~170/20 60~220/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
										10			10	40	1-1/2	inch / mm
										10			10	50	2
								10			10			65	2-1/2
								10			10			80	3
								10			10			100	4
						10			10					125	5
						10			10					150	6
						10			10					175	7
				10					10					200	8
				10			10							250	10
		10			10									300	12
		10			10									350	14
10			10											400	16
10			10											450	18
10	10													500	20

Diaphragm Actuator/Graphite Packing Balance Seal Graphite

DA:Direct action MPa

20		16"		12"		480		370		Actuator specification
0.5		0.5		0.5		0.36		0.36		Supply pressure MPa
60-200		60-200		60-200		110-220 40		130~230/20 80~230/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
								10	10	40	1-1/2	inch/mm
								10	10	50	2
						10	10			65	2-1/2
						10	10			80	3
						10	10			100	4
				10	10					125	5
				10	10					150	6
				10	10					175	7
				10	10					200	8
		10	10							250	10
		10	10							300	12
		10	10							350	14
10	10									400	16
10	10									450	18
10	10									500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

RA:Reverse action

MPa

480H			480			370H			370			290			Actuator specification
480H			480			370H			370			290			Actuator specification
0.36			0.36			0.40			0.36			0.28			Supply pressure MPa
130-280/60 100-280/70			140-250/40 80-250/60 80-280/70			194-352/30 142-352/40			130~230/20 130~280/30 80~280/40			110~220/20 60~220/30			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
										10		3		10	40	1-1/2	inch / mm
										10		3		10	50	2
							10		3		10				65	2-1/2
							10		3		10				80	3
							10		3		10				100	4
	10		3		10										125	5
	10		3		10										150	6
	10		3		10										175	7
			3		10										200	8
															250	10
															300	12
															350	14
															400	16
															450	18
															500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring(continued)

RA: Reverse action MPa

20"			16"			12"			550			Actuator specification
0.5			0.5			0.5			0.36			Supply pressure MPa
60-200			60-200			60-200			80-210/60 80-240/70 80-280/90			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
												40	1-1/2	inch/mm
												50	2
												65	2-1/2
												80	3
												100	4
												125	5
												150	6
												175	7
							10					200	8
							10		3		10	250	10
				10		3		10				300	12
				10		3		10				350	14
	10		3		10							400	16
	10		3		10							450	18
3	10	10										500	20

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

RA: Reverse action MPa

480H		480		370H		370		290		Actuator specification
0.36		0.36		0.40		0.36		0.28		Supply pressure MPa
130-280/60 100-280/70		140-250/40 80-250/60 80-280/70		194-352/30 142-352/40		130~230/20 130~280/30 80~280/40		110~220/20 60~220/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
						10			10	40	1-1/2	inch/mm
						10			10	50	2
				10			10			65	2-1/2
				10			10			80	3
				10			10			100	4
10			10							125	5
10			10							150	6
10			10							175	7
			10							200	8
										250	10
										300	12
										350	14
										400	16
										450	18
										500	20

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

RA: Reverse action MPa

20"		16"		12"		550		Actuator specification
0.5		0.5		0.5		0.36		Supply pressure MPa
60-200		60-200		60-200		80-210/60 80-240/70 80-280/90		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
								40	1-1/2	inch /mm
								50	2
								65	2-1/2
								80	3
								100	4
								125	5
								150	6
								175	7
				10				200	8
				10			10	250	10
		10			10			300	12
		10			10			350	14
10			10					400	16
10			10					450	18
10	10							500	20

Diaphragm Actuator/Graphite Packing Balance Seal Graphite

RA:Reverse action

MPa

20"		16"		12"		480H		480		370H		370		Actuator specification
20"		16"		12"		480H		480		370H		370		Actuator specification
0.5		0.5		0.5		0.36		0.36		0.40		0.36		Supply pressure MPa
60-200		60-200		60-200		130-280/60 100-280/70		140-250/40		194-352/30 142-352/40		130~230/20 130~280/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
										10			10	40	1-1/2	inch / mm
										10			10	50	2
								10			10			65	2-1/2
								10			10			80	3
						10			10					100	4
				10	10									125	5
				10	10									150	6
				10	10									175	7
				10	10									200	8
		10	10											250	10
		10	10											300	12
		10	10											350	14
10	10													400	16
10	10													450	18
10	10													500	20

External Dimensions

Body Size		L									H
Body Size		ANSI150LB			ANSI300LB			ANSI600LB			standard type	heat sink type
INCH	DN	RF	RJ	welded	RF	RJ	welded	RF	RJ	welded	standard type	heat sink type
1 1/2	40	222	222	251	235	235	251	251	251	251	145	245
2	50	254	257	286	267	270	286	286	289	286	156	256
2 1/2	65	276	279	292	292	295	292	311	314	311	195	295
3	80	298	301	318	318	321	318	337	340	337	210	310
4	100	352	355	368	368	371	368	394	397	394	235	335
5	125	403	406	425	425	428	425	457	460	457	302	372
6	150	451	454	473	473	476	473	508	511	508	326	396
8	200	543	546	568	568	571	568	610	613	610	385	455
10	250	673	676	708	708	711	708	752	755	752	392	462
12	300	737	740	775	775	778	775	819	822	819	493	563
14	350	889	892	927	927	930	927	972	975	972	550	620
16	400	1016	1019	1057	1057	1060	1057	1108	1111	1108	570	640
18	450	1143	1146	1181	1181	1184	1181	1239	1242	1239	650	720
20	500	1450	1453	1450	1500	1503	1500	1650	1653	1650	1500	1600

V200-CGN Series Low Noise Cage Control Valve (Multi-Hole) 3

Actuator Size	E	C	D	F	S	P	Q
290	292	369	214	-	-	-	-
370	370	409	214	-	-	-	-
370H	370	440	214	-	-	-	-
480	482	628	-	350	-	-	-
480H	482	680	-	387	-	-	-
550	560	703	-	387	-	-	-
12＂	-	-	-	-	370	606	393
16＂	-	-	-	-	472	626	450
20＂	-	-	-	-	600	720	560

Tags:

Control Valves

Servo Valves

Proportional Valve

Ball Valves

Gate Valves

Hydraulic Valve

Butterfly Valves

Check Valves

Industrial Valves

Stainless Steel Valves

Water Valves

V200-CGN Series Low Noise Cage Control Valve (Multi-Hole)

low noise cage control valve

low noise cage type control valve

pn16 cage control valve

angle valve,

angle control valve,

single seated valve

0.14MPa 0.012-0.35MPa 0.012-0.7MPa Air Compressor Filter Regulator Prv Valve

T50 Filter Type Pressure Regulating Valves Anti Corrosion

Self Operated Temperature Regulating Valve Single Seat 1.64MPa Nominal Pressure

Urban Gas Petroleum Chemical Industry Control Valves Self Operated Pressure Regulating Valve

Pneumatic Diaphragm Low Temperature Angle Control Valve Single Seat 20-80mm

Pneumatic Diaphragm Low Temperature Double Seat Control Valve

3/4'' Pneumatic Diaphragm Low Temperature Single Seated Valve 20-300mm

High Pressure Angle Type Control Valve ANSI 2500 Venturi Type Forged Angle Valve

Lined Plastic Bellows Control Valves Straight Through Single Seated 20-150mm

Insulated Jacketed Single Seated Control Valve 40-200mm ANSI 125 150 300 600

JIS 10 20 30 40K Insulated Jacketed Cage Type Double Seated Control Valve

Control Valves

Servo Valves

Proportional Valve

Ball Valves

Gate Valves

Hydraulic Valve

Butterfly Valves
