V200-CGW Series Cage Control Valve(WINDOWS)

Name: V200-CGW Series Cage Control Valve(WINDOWS)
Brand: WEYO AUTO TECH
SKU: V200-CGW Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: V200-CGW Series

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders. 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            pn16 cage control valve, unbalanced cage control valve, pn16 cage type control valve


Type:	THREE WAY	Body Size:	1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings:	ANSI150 300 600LB PN16 PN40 PN63 PN100	Connections:	Flanged(RF FF FM RJ) Weld Ends(SW BW)
Body Bonnet Material:	A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other Special Materials Can Be Provided According To Customers’need.	Trim Material:	410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial Or All Stellite Alloy Overlay Welding According To Requirements/Other Special Materials Can Be Provided According To Customers’need.
Balance Seal:	Fluorine Rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ , GRAPHITE：230 ～ 620℃	Packing:	PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide:	PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃	Bonnet Type:	Standard Type ：-17 ～ 230℃ , Fin-Extension Type ：230 ～ 620℃ ，-45 ～ -17℃ , Ong-Extension Type ：-196 ～ -45℃ , Bellows Seal Type , Steam Jacket Type
Plug Type:	Unbalanced	Seat Leakage Standard:	ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage:	IV V	Flow Characteristics:	(EQ-%) (Linear)
Rangeability:	30:1 ; 50:1	Diaphragm Type:	Work Way : Direct Action、Reverse Action , Size: 250 290 370 370H 480 480H 550 , Supply Pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring Range: 80-280KPa , Handle: (Top Handle) (Side Handle)
PNEUMATIC CYLINDER:	Work Way : Double Action , Size: 12″ 16″ 20″, Supply Pressure:500KPa , Handle: Side Handle	Electric Motor:	Selectable
Hydraulic Cylinder:	Optional

Type:	THREE WAY
Body Size:	1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings:	ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections:	Flanged(RF FF FM RJ) Weld Ends(SW BW)
Body Bonnet Material:	A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other Special Materials Can Be Provided According To Customers’need.
Trim Material:	410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial Or All Stellite Alloy Overlay Welding According To Requirements/Other Special Materials Can Be Provided According To Customers’need.
Balance Seal:	Fluorine Rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ , GRAPHITE：230 ～ 620℃
Packing:	PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide:	PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type:	Standard Type ：-17 ～ 230℃ , Fin-Extension Type ：230 ～ 620℃ ，-45 ～ -17℃ , Ong-Extension Type ：-196 ～ -45℃ , Bellows Seal Type , Steam Jacket Type
Plug Type:	Unbalanced
Seat Leakage Standard:	ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage:	IV V
Flow Characteristics:	(EQ-%) (Linear)
Rangeability:	30:1 ; 50:1
Diaphragm Type:	Work Way : Direct Action、Reverse Action , Size: 250 290 370 370H 480 480H 550 , Supply Pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring Range: 80-280KPa , Handle: (Top Handle) (Side Handle)
PNEUMATIC CYLINDER:	Work Way : Double Action , Size: 12″ 16″ 20″, Supply Pressure:500KPa , Handle: Side Handle
Electric Motor:	Selectable
Hydraulic Cylinder:	Optional

V200-CGW Series Cage Control Valve(WINDOWS)

V200-CGW Series Cage Control Valve features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional.

The series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. The windows type cage provides small pressure loss, large flow coefficient and excellent dynamic stability. Thus the series is suitable for conditions of high shut-off pressure and high precision adjustment.

The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.

Rated Cv and Stroke (Table2)

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
1-1/2 (40)	1-1/2 (40)	28	20	6 (150)	4 (100)	170	40
1-1/2 (40)	1-1/2 (40)	33	20		5 (125)	280	60
2 (50)	1-1/2 (40)	28	20		6 (150)	360	60
	2 (50)	40	30		6 (150)	400	60
	2 (50)	50	30	8 (200)	6 (150)	360	60
2-1/2 (65)	1-1/2 (40)	28	20		7 (150)	500	70
	2 (50)	40	30		8 (200)	640	70
	2-1/2 (65)	70	30		8 (200)	720	70
	2-1/2 (65)	80	30	10 (250)	8 (200)	640	70
3 (80)	2 (50)	40	30	10 (250)	10 (250)	1000	90
	2-1/2 (65)	70	30	12(300)	10 (250)	1000	90
	3 (80)	100	40	12(300)	12 (300)	1400	120
	3 (80)	120	40	14 (350)	12 (300)	1400	120
4 (100)	2-1/2 (65) 3 (80)	70	30	14 (350)	14 (350)	2000	150
	2-1/2 (65) 3 (80)	100	40	16 (400)	14 (350)	2000	150
	4 (100)	170	40	16 (400)	16 (400)	2500	160
	4 (100)	200	40	18 (450)	16 (400)	2500	160
5 (125)	3 (80)	100	40	18 (450)	18 (450)	3200	200
	4 (100)	170	40	20 (500)	18 (450)	3200	200
	5 (125)	280	60	20 (500)	20 (500)	4000	200
	5 (125)	300	60

Body Material Temperature - Pressure Range (Table 3)

standard working pressure MPa

600LB					300LB					150LB					温度℃
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	温度℃
9.93	9.92	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.11	1.9	1.9	2	2	1.96	-29～38
9.63	9.57	10.24	10.23	10.02	4.81	4.78	5.12	5.11	5.01	1.84	1.84	1.92	1.92	1.92	50
8.44	8.18	9.81	9.75	9.28	4.22	4.09	4.9	4.88	4.64	1.62	1.57	1.77	1.77	1.77	100
7.7	7.27	9.33	9.27	9.05	3.85	3.63	4.66	4.64	4.52	1.48	1.39	1.58	1.58	1.58	150
7.13	6.55	8.97	9.1	8.76	3.77	3.28	4.48	4.55	4.38	1.37	1.26	1.4	1.4	1.4	200
6.68	6.11	8.84	8.89	8.34	3.34	3.05	4.42	4.45	4.17	1.21	1.17	1.21	1.2	1.21	250
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.08	5.61	8.05	8.05	7.39	3.04	2.81	4.02	4.02	3.7	0.84	0.84	0.84	0.84	0.84	350
5.94	5.55	7.76	7.76	7.29	2.97	2.78	3.88	3.88	3.65	0.74	0.74	0.74	0.74	0.74	375
5.82	5.49	7.32	7.32	6.9	2.91	2.75	3.66	3.66	3.45	0.65	0.65	0.65	0.65	0.65	400
5.73	5.43	7.02	7.02	5.75	2.87	2.72	3.51	3.51	2.88	0.56	0.56	0.56	0.56	0.56	425
5.62	5.37	6.76	6.76		2.81	2.69	3.38	3.38		0.47	0.47	0.47	0.47	/	450
5.47	5.31	6.33	6.33		2.74	2.66	3.17	3.17		0.37	0.37	0.37	0.37	/	475
5.37	5.21	5.56	5.56		2.68	2.61	2.78	2.78		0.28	0.28	0.28	0.28	/	500
5.16	4.78	4.38	4.05		2.58	2.39	2.19	2.03		0.19	0.19	0.19	0.19	/	525
4.99	4.36	3.27			2.5	2.18	1.64			0.13	0.13	0.13		/	550
4.82	4.01	2.34			2.41	2.01	1.17			0.13	0.13	0.13		/	575

Trim Material Temperature Range (Table 4)

No.	Material	Temperature Range	Remark
1	410	-29～427	Heat treatment
2	440	-29～427	Heat treatment
3	17-4PH	-29～427	Heat treatment
4	INCONEL718	-29～620
5	F11+STF	-29～510	Partial or all stellite alloy overlay welding according to requirements
6	F22+STF	-29～550	Partial or all stellite alloy overlay welding according to requirements
7	F91+STF	-29～620	Partial or all stellite alloy overlay welding according to requirements
8	304	-196～538	Partial or all stellite alloy overlay welding according to requirements
9	316	-196～538	Partial or all stellite alloy overlay welding according to requirements
10	304L	-196～538	Partial or all stellite alloy overlay welding according to requirements
11	316L	-196～538	Partial or all stellite alloy overlay welding according to requirements

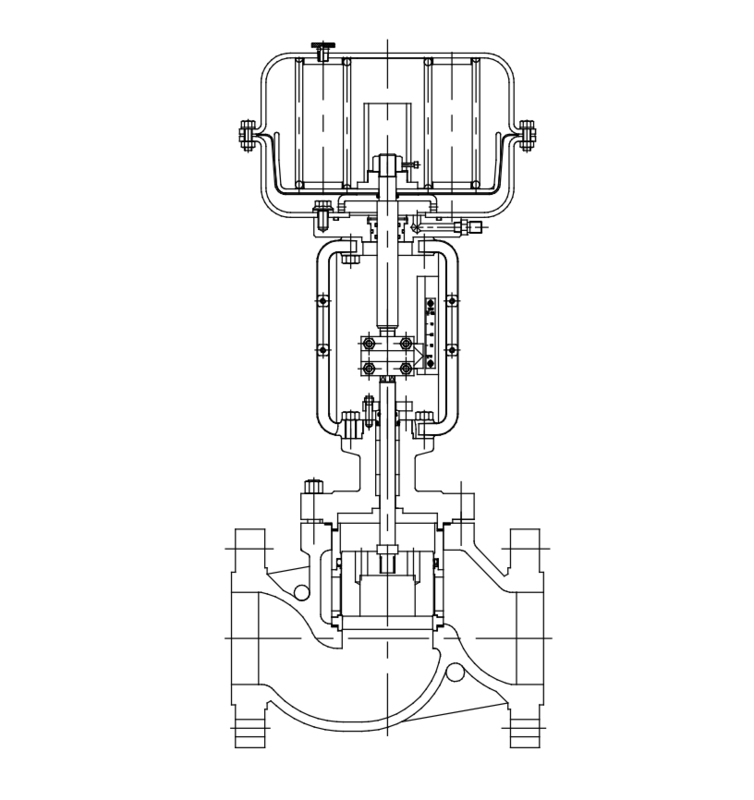

Valve Internal Structure

No.	Name	(Q′ty)
1	body	1
2	bonnet	1
3	seat	1
4	plug	1
5	stem	1
6	cage	1
7	balance seal	1
8	balance cylinder	1
13	seat gasket	2
14	bonnet gasket	1
15	packing	1
16	packing	1
17	stem guide	1
18	packing follower	1
19	packing flange	1

External Dimensions(Table6)

Actuator Size	E	C	D	F	S	P	Q
290	292	369	214	-	-	-	-
370	370	409	214	-	-	-	-
370H	370	440	214	-	-	-	-
480	482	628	-	350	-	-	-
480H	482	680	-	387	-	-	-
550	560	703	-	387	-	-	-
12＂	-	-	-	-	370	606	393
16＂	-	-	-	-	472	626	450

V200-CGW Series Cage Control Valve(WINDOWS) 2
