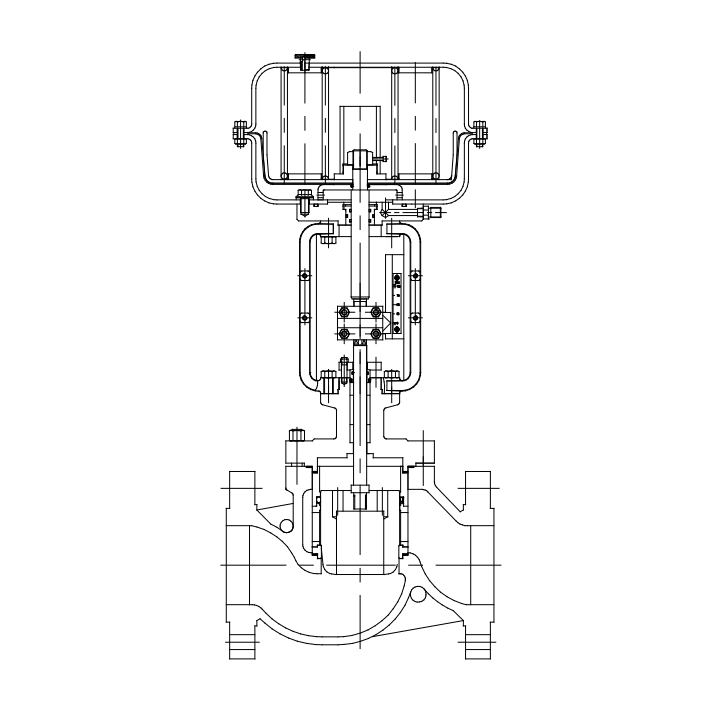

V200-CGP Series Cage Control Valve (Contoured -P)

Name: V200-CGP Series Cage Control Valve (Contoured -P)
Brand: WEYO AUTO TECH
SKU: V200-CGP Series
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: V200-CGP Series

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders. 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            pn16 cage control valve, unbalanced cage control valve, pn16 cage type control valve


Type:	THREE WAY	Body Size:	1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings:	ANSI150 300 600LB PN16 PN40 PN63 PN100	Connections:	Flanged(RF FF FM RJ) Weld Ends(SW BW)
Body Bonnet Material:	A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other Special Materials Can Be Provided According To Customers’need.	Trim Material:	410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial Or All Stellite Alloy Overlay Welding According To Requirements/Other Special Materials Can Be Provided According To Customers’need.
Balance Seal:	Fluorine Rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ GRAPHITE：230 ～ 620℃	Packing:	PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide:	PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃	Bonnet Type:	Standard Type ：-17 ～ 230℃ , Fin-Extension Type ：230 ～ 620℃ ，-45 ～ -17℃ , Ong-Extension Type ：-196 ～ -45℃ , Bellows Seal Type , Steam Jacket Type
Plug Type:	Unbalanced	Seat Leakage Standard:	ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage:	IV V	Flow Characteristics:	(EQ-%) (Linear)
Rangeability:	30:1 ; 50:1	Diaphragm Type:	Work Way : Direct Action、Reverse Action , Size: 250 290 370 370H 480 480H 550 , Supply Pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring Range: 80-280KPa , Handle: (Top Handle) (Side Handle)
PNEUMATIC CYLINDER:	Work Way : Double Action , Size: 12″ 16″ 20″, Supply Pressure:500KPa , Handle: Side Handle	Electric Motor:	Selectable
Hydraulic Cylinder:	Optional

Type:	THREE WAY
Body Size:	1″ 1.5″ 2″ 2.5″ 3″ 4″ 5″ 6″ 8″ 10″ 12″
Ratings:	ANSI150 300 600LB PN16 PN40 PN63 PN100
Connections:	Flanged(RF FF FM RJ) Weld Ends(SW BW)
Body Bonnet Material:	A216 WCB/A105 A217 WC6/A182 F11 A217 WC9/A182 F22 A351 CF8/A182 F304 A351 CF8M/A182 F316 A351 CF3/A182 F304L A351 CF3M/A182 F316L Other Special Materials Can Be Provided According To Customers’need.
Trim Material:	410 440 17-4PH INCONEL718 A182 F11 F22 F91 , A182 F304 F316 F304L F316L Partial Or All Stellite Alloy Overlay Welding According To Requirements/Other Special Materials Can Be Provided According To Customers’need.
Balance Seal:	Fluorine Rubber：-20 ～ 100℃ 316+TFE: -50 ～ 230℃ GRAPHITE：230 ～ 620℃
Packing:	PTFE: -196 ～ 150℃ , GRAPHITE: 150 ～ 620℃
Stem Guide:	PTFE: -196 ～ 150℃ , CARBON: 150 ～ 620℃
Bonnet Type:	Standard Type ：-17 ～ 230℃ , Fin-Extension Type ：230 ～ 620℃ ，-45 ～ -17℃ , Ong-Extension Type ：-196 ～ -45℃ , Bellows Seal Type , Steam Jacket Type
Plug Type:	Unbalanced
Seat Leakage Standard:	ANSI B16.104 FCI 70-2 GB/T4213 MSS-SP-61(selectable)
Leakage:	IV V
Flow Characteristics:	(EQ-%) (Linear)
Rangeability:	30:1 ; 50:1
Diaphragm Type:	Work Way : Direct Action、Reverse Action , Size: 250 290 370 370H 480 480H 550 , Supply Pressure: 250 290(280KPa) 370 370H 480 480H 550（360KPa) , Spring Range: 80-280KPa , Handle: (Top Handle) (Side Handle)
PNEUMATIC CYLINDER:	Work Way : Double Action , Size: 12″ 16″ 20″, Supply Pressure:500KPa , Handle: Side Handle
Electric Motor:	Selectable
Hydraulic Cylinder:	Optional

V200-CGP Series Cage Control Valve (Contoured -P)

V200-CGP Series Cage Control Valve features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional.

The series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. The contoured-p plug provides high precision adjustment and large adjustable ratio. Thus the series is suitable for conditions of high shut-off pressure and high precision adjustment.

The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.

Rated Cv and Stroke

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
1-1/2 (40)	1-1/2 (40)	28	20	5 (125)	3 (80)	100	40
1-1/2 (40)	1-1/2 (40)	33	20		4 (100)	170	40
2 (50)	1-1/2 (40)	28	20		5 (125)	280	60
	2 (50)	40	30		5 (125)	300	60
	2 (50)	50	30	6 (150)	4 (100)	170	40
2-1/2 (65)	1-1/2 (40)	28	20		5 (125)	280	60
	2 (50)	40	30		6 (150)	360	60
	2-1/2 (65)	70	30		6 (150)	400	60
	2-1/2 (65)	80	30	8 (200)	6 (150)	360	60
3 (80)	2 (50)	40	30	8 (200)	7 (150)	500	70
	2-1/2 (65)	70	30
	3 (80)	100	40
		120	40
4 (100)	2-1/2 (65) 3 (80)	70	30
	2-1/2 (65) 3 (80)	100	40
	4 (100)	170	40
	4 (100)	200	40

Body Material Temperature - Pressure Range (Table 3)

standard working pressure MPa

600LB					300LB					150LB					℃
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	℃
9.93	9.92	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.11	1.90	1.90	2.00	2.00	1.96	-29～38
9.63	9.57	10.24	10.23	10.02	4.81	4.78	5.12	5.11	5.01	1.84	1.84	1.92	1.92	1.92	50
8.44	8.18	9.81	9.75	9.28	4.22	4.09	4.90	4.88	4.64	1.62	1.57	1.77	1.77	1.77	100
7.70	7.27	9.33	9.27	9.05	3.85	3.63	4.66	4.64	4.52	1.48	1.39	1.58	1.58	1.58	150
7.13	6.55	8.97	9.10	8.76	3.77	3.28	4.48	4.55	4.38	1.37	1.26	1.40	1.40	1.40	200
6.68	6.11	8.84	8.89	8.34	3.34	3.05	4.42	4.45	4.17	1.21	1.17	1.21	1.20	1.21	250
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.08	5.61	8.05	8.05	7.39	3.04	2.81	4.02	4.02	3.70	0.84	0.84	0.84	0.84	0.84	350
5.94	5.55	7.76	7.76	7.29	2.97	2.78	3.88	3.88	3.65	0.74	0.74	0.74	0.74	0.74	375
5.82	5.49	7.32	7.32	6.90	2.91	2.75	3.66	3.66	3.45	0.65	0.65	0.65	0.65	0.65	400
5.73	5.43	7.02	7.02	5.75	2.87	2.72	3.51	3.51	2.88	0.56	0.56	0.56	0.56	0.56	425
5.62	5.37	6.76	6.76		2.81	2.69	3.38	3.38		0.47	0.47	0.47	0.47	/	450
5.47	5.31	6.33	6.33		2.74	2.66	3.17	3.17		0.37	0.37	0.37	0.37	/	475
5.37	5.21	5.56	5.56		2.68	2.61	2.78	2.78		0.28	0.28	0.28	0.28	/	500
5.16	4.78	4.38	4.05		2.58	2.39	2.19	2.03		0.19	0.19	0.19	0.19	/	525
4.99	4.36	3.27			2.50	2.18	1.64			0.13	0.13	0.13		/	550
4.82	4.01	2.34			2.41	2.01	1.17			0.13	0.13	0.13		/	575

Trim Material Temperature Range

No.	Material	℃ Temperature Range	Remark
1	410	-29～427	Heat treatment
2	440	-29～427	Heat treatment
3	17-4PH	-29～427	Heat treatment
4	INCONEL718	-29～620
5	F11+STF	-29～510	Partial or all stellite alloy overlay welding according to requirements
6	F22+STF	-29～550	Partial or all stellite alloy overlay welding according to requirements
7	F91+STF	-29～620	Partial or all stellite alloy overlay welding according to requirements
8	304	-196～538	Partial or all stellite alloy overlay welding according to requirements
9	316	-196～538	Partial or all stellite alloy overlay welding according to requirements
10	304L	-196～538	Partial or all stellite alloy overlay welding according to requirements
11	316L	-196～538	Partial or all stellite alloy overlay welding according to requirements

Valve Internal Structure

No.	N am e	(Q′ty)
1	body	1
2	bonnet	1
3	seat	1
4	plug	1
5	stem	1
6	cage	1
7	balance seal	1
8	balance cylinder	1
13	seat gasket	2
14	bonnet gasket	1
15	packing	1
16	packing	1
17	stem guide	1
18	packing follower	1
19	packing flange	1

Allowable differential pressure (Table5)

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

DA:Direct action MPa

550			480			370			290			Actuator specification
0.36			0.36			0.36			0.28			Supply pressure MPa
140-280/60 120-280/70			110-220/40 80-250/60 80-280/70			130~230/20 80~230/30 80~280/40			60~170/20 60~220/30			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
						-	10	-	3	-	10	40	1-1/2	Seat Size inch/mm
						-	10		3		10	50	2
				10	-	3	-	10	-	-	-	65	2-1/2
				10		3	-	10	-	-	-	80	3
				10		3	-	10	-		-	100	4
	10		3	-	10		,	-	-	-	一	125	5
	10		3	-	10		-	-	-	-	-	150	6
	10		3	-	10		-	-	-	-		175	7

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

DA:Direct action MPa

550		480		370		290		Actuator specification
0.36		0.36		0.36		0.28		Supply pressure MPa
140-280/60 120-280/70		110-220/40 80-250/60 80-280/70		130~230/20 80~230/30 80~280/40		60~170/20 60~220/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
				10		-	10	40	1-1/2	Seat Size inch/ mm
				10		-	10	50	2
		10	-	-	10			65	2-1/2
		10	-	-	10			80	3
		10	-	-	10			100	4
10			10					125	5
10			10					150	6
10			10					175	7

Diaphragm Actuator/Graphite Packing Balance Seal Graphite

DA:Direct action MPa

12"		480		370		Actuator specification
0.5		0.36		0.36		Supply pressure MPa
6070		140-220/30 110-220/40		130~230/20 80~230/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	Sealing surface Leakage
				10	10	40	1-1/2	inch/ mm
				10	10	50	2
		10	10			65	2-1/2
		10	10			80	3
		10	10			100	4
10	10					125	5
10	10					150	6
10	10					175	7

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

RA:Reverse action MPa

480H			480			370H			370			290			Actuator specification
0.36			0.36			0.40			0.36			0.28			Supply pressure MPa
130-280/60 100-280/70			110-280/60 80-280/70			194-352/30 142-352/40			130~230/20 130~280/30 80~280/40			110~220/20 60~220/30			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
										10		3.0	-	10	40	1-1/2	inch/ mm
										10		3.0		10	50	2
						-	10	-	3.0	-	10				65	2-1/2
			-		-		10	-	3.0	-	10				80	3
							10		3.0	-	10				100	4
	10		3.0		10										125	5
	10		3.0		10										150	6
	10		3.0		10										175	7

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

RA: Reverse action MPa

480H		480		370H		370		290		Actuator specification
0.36		0.36		0.40		0.36		0.28		Supply pressure MPa
130-280/60 100-280/70		140-250/40 110-280/60 80-280/70		194-352/30 142-352/40		130~230/20 130~280/30 80~280/40		110~220/20 60~220/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
						10		-	10	40	1-1/2	inch/mm
						10		-	10	50	2
				10		-	10			65	2-1/2
			-	10		-	10			80	3
				10			10			100	4
10			10							125	5
10			10							150	6
10			10							175	7

Diaphragm Actuator/Graphite Packing Balance Seal Graphite

RA:Reverse action MPa

12"		480H		480		370H		370		Actuator specification
0.5		0.36		0.36		0.40		0.36		Supply pressure MPa
6070		130-280/60 100-280/70		170-250/30 140-250/40		194-352/30 142-352/40		130~230/20 130~280/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
						10			10	40	1-1/2	inch /mm
						10			10	50	2
				10		10				65	2-1/2
				10		10				80	3
		10			10					100	4
10	10									125	5
10	10									150	6
10	10									175	7

External Dimensions

Body Size		L									H
Body Size		ANSI150LB			ANSI300LB			ANSI600LB			standard type	heat sink type
INCH	DN	RF	RJ	welded	RF	RJ	welded	RF	RJ	welded	standard type	heat sink type
11/2	40	222	222	251	235	235	251	251	251	251	145	245
2	50	254	257	286	267	270	286	286	289	286	156	256
21/2	65	276	279	292	292	295	292	311	314	311	195	295
3	80	298	301	318	318	321	318	337	340	337	210	310
4	100	352	355	368	368	371	368	394	397	394	235	335
5	125	403	406	425	425	428	425	457	460	457	302	372
6	150	451	454	473	473	476	473	508	511	508	326	396
8	200	543	546	568	568	571	568	610	613	610	385	455

Actuator Size	E	C	D	F	S	P	Q
290	292	369	214	-	-	-	-
370	370	409	214	-	-	-	-
370H	370	440	214	-	-	-	-
480	482	628	-	350	-	-	-
480H	482	680	-	387	-	-	-
550	560	703	-	387	-	-	-
12＂	-	-	-	-	370	606	393
16＂	-	-	-	-	472	626	450
