Product Details
Place of Origin: China
Brand Name: WEYO
Model Number: BA/EP
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Packaging Details: Customized packaging to protect products
Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders
Payment Terms: T/T, L/C
Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts
|
Performance:
|
Superior
|
Application Scenarios:
|
Wide
|
Maintenance:
|
Simple
|
|
Performance:
|
Superior
|
|
Application Scenarios:
|
Wide
|
|
Maintenance:
|
Simple
|

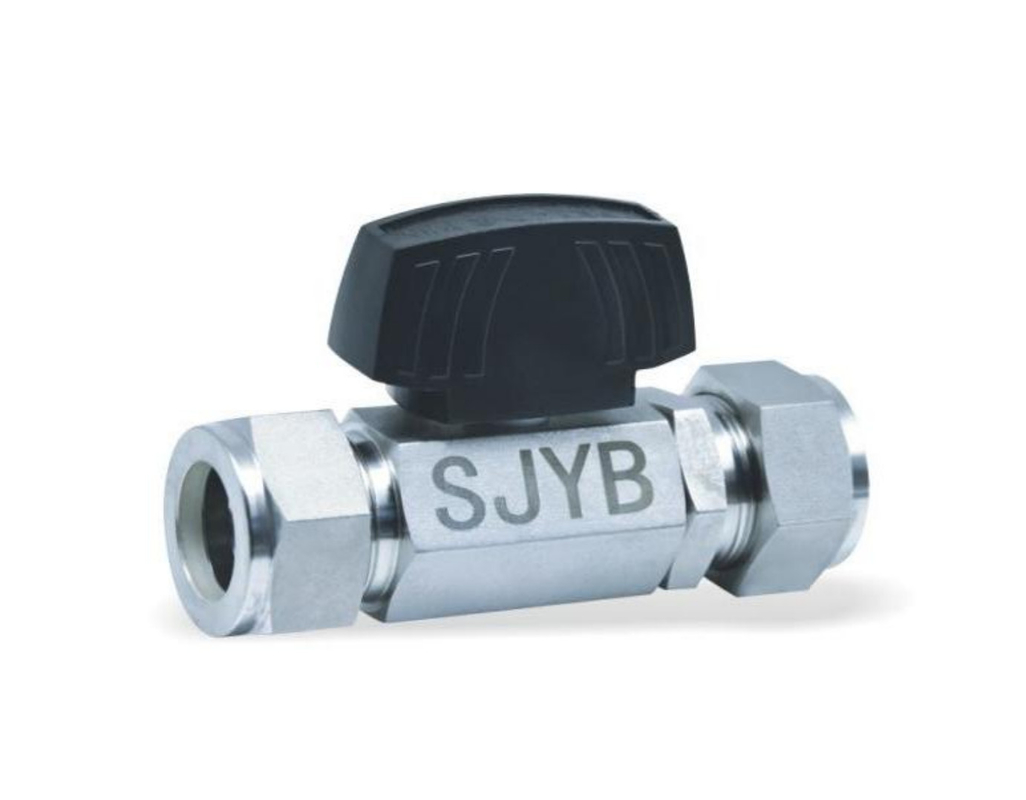

BA/EP grade sleeve ball valves play an important role in the industrial field due to their unique sleeve connection technology
BA/EP grade sleeve ball valves play an important role in the industrial field due to their unique sleeve connection technology, superior performance, and wide application scenarios. Its appearance not only improves the sealingand reliability of the system, but also reduces the cost and maintenance difficulty of the system.
| serial number | Name | material |
1 |
Valve body | SS316 |
| 2 | Ball seal ring | PTFE/PEEK |
| 3 | Steel ball | SS316 |
4 |
O-ring | fluororubber |
5 |
Joint | SS316 |
6 |
Front ferrule | SS316 |
| 7 | Rear ferrule | SS316 |
8 |
Ferrule nut | SS316 |
9 |
Lower gasket | PTFE/PEEK |
| 10 | Upper gasket | PTFE/PEEK |
| 11 | Flat gasket | SS316 |
| 12 | Butterfly knob | ZnA14-1 |
| 13 | Compression ring | SS316 |
| 14 | Nameplate | 1060 alloy |
| 15 | Knob rod | SS316 |
| 16 | Nut | SS304 |
| model | mm | size | ||||||
| A | B | C | ||||||
| mm | mm | mm | mm | |||||
| BV200-TF04-TF04 | 5 | 64.9 | 34.9 | 9.58 | ||||
| BV200-TF06-TF06 | 7.5 | 75 | 42.5 | 11.2 | ||||
| BV200-TF08-TF08 | 9 | 81 | 48.3 | 13.5 | ||||
