PN16 25 40 63 100 160 Cast Through Way Parallel Gate Valves

Name: PN16 25 40 63 100 160 Cast Through Way Parallel Gate Valves
Brand: WEYO AUTO TECH
SKU: V500-Z6s44H
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: V500-Z6s44H

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    PN16 parallel gate valves, PN25 parallel gate valves, PN63 gate valves


Body Type:	Cast Through Way Parallel Type	Valve Size:	DN40,50,65,80,100,125,150,200,250,300,350,400,450,500,600,700, 800 (1½”,2”,2½”,3”,4”,5”,6”,8”,10”,12”,14”,16”,18”,20”, 24”,28”,32”)
Pressure Rating:	PN16,25,40,63,100,160(ANSI Class 150,300,600,900)	End Connections:	Flanged(RF,FM,RJ)
Flanged Standard:	GB/T 9113,JB/T 79,HG/T 20592,HG/T 20615,SH 3406,ANSI B16.5	Body & Bonnet Materials:	A216 WCB,A217 WC6,A217 WC9,A217 C5 ；A351 CF8,A351 CF8M,A351 CF3,A351 CF3M Other Special Materials Are Available
Trim Materials:	A276 410,A959 S17400,630(17-4PH)；216 WCB,A217 WC6,WC9,C5 ；A182 F304,F316,F304L,F316L Sealing Surface Welding Cobalt Or Nickel Alloy Other Special Materials Are Available	Packing:	PTFE+Kevlar:-196~230℃ ，PTFE Asbestos:-196~230℃ ，Graphite:230~620℃
Bonnet Type:	Standard Type:-40~200℃ ，High Temperature Type:200~450℃	Disc Type:	Parallel Double Gate Disc
Seat Leakage Standard:	GB/T 13927,GB/T 4213,ANSI B16.104,ANSI/FCI 70-2,MSS SP- 61,API 598	Leakage:	Class VI Or According To Customer Requirement
Flow Characteristic:	Approximate Linear	Rangeability:	15:1( ≤ DN50), 20:1( ≥ DN65)
Double Acting Cylinder Type (CD):	Acting Type:Air-to-close,Air-to-open ，Size:120,160,220,280,300,360,420,500,600mm ，Supply Pressure:0.3,0.4,0.5MPa，andwheel: Side Handwheel	Spring Return Cylinder Type (CS):	Acting Type:Air-to-close,Air-to-open ，Size:120,160,220,280,300,360,420,500,600mm ，Supply Pressure:0.3,0.4,0.5MPa ，Handwheel: Side Handwheel
Electric Actuator:	Optional	Electro-hydraulic Actuator:	Optional

Body Type:	Cast Through Way Parallel Type
Valve Size:	DN40,50,65,80,100,125,150,200,250,300,350,400,450,500,600,700, 800 (1½”,2”,2½”,3”,4”,5”,6”,8”,10”,12”,14”,16”,18”,20”, 24”,28”,32”)
Pressure Rating:	PN16,25,40,63,100,160(ANSI Class 150,300,600,900)
End Connections:	Flanged(RF,FM,RJ)
Flanged Standard:	GB/T 9113,JB/T 79,HG/T 20592,HG/T 20615,SH 3406,ANSI B16.5
Body & Bonnet Materials:	A216 WCB,A217 WC6,A217 WC9,A217 C5 ；A351 CF8,A351 CF8M,A351 CF3,A351 CF3M Other Special Materials Are Available
Trim Materials:	A276 410,A959 S17400,630(17-4PH)；216 WCB,A217 WC6,WC9,C5 ；A182 F304,F316,F304L,F316L Sealing Surface Welding Cobalt Or Nickel Alloy Other Special Materials Are Available
Packing:	PTFE+Kevlar:-196~230℃ ，PTFE Asbestos:-196~230℃ ，Graphite:230~620℃
Bonnet Type:	Standard Type:-40~200℃ ，High Temperature Type:200~450℃
Disc Type:	Parallel Double Gate Disc
Seat Leakage Standard:	GB/T 13927,GB/T 4213,ANSI B16.104,ANSI/FCI 70-2,MSS SP- 61,API 598
Leakage:	Class VI Or According To Customer Requirement
Flow Characteristic:	Approximate Linear
Rangeability:	15:1( ≤ DN50), 20:1( ≥ DN65)
Double Acting Cylinder Type (CD):	Acting Type:Air-to-close,Air-to-open ，Size:120,160,220,280,300,360,420,500,600mm ，Supply Pressure:0.3,0.4,0.5MPa，andwheel: Side Handwheel
Spring Return Cylinder Type (CS):	Acting Type:Air-to-close,Air-to-open ，Size:120,160,220,280,300,360,420,500,600mm ，Supply Pressure:0.3,0.4,0.5MPa ，Handwheel: Side Handwheel
Electric Actuator:	Optional
Electro-hydraulic Actuator:	Optional

PN16 25 40 63 100 160 Cast Through Way Parallel Gate Valves

V500-Z6s44H Parallel Gate Valve

Parallel Gate Valve is a new type of fast shut-off valve. The valve features metal-seated seal construction, steady and reliable movement, rapid open and close action, small operating force and excellent shut-off performance, it is especially suitable for emergency shut-off and vent of gas and liquid under high temperature and high pressure as well as be used as a large diameter control valve.

Parallel Gate Valve is equipped with double action cylinder, when it comes to an air supply fault and requests reset, storage tank is needed. Spring return cylinder can be applied to small diameter valves. Electric actuator and electro- hydraulic actuator is optional.

Rated Cv and Stroke

Valve size mm(inch)	Rated Cv	Stroke (mm)	Valve size mm(inch)	Rated Cv	Stroke (mm)
40 (1½)	60	45	300 (12)	7920	310
50 (2)	120	55	350 (14)	10300	360
65 (2½)	200	70	400 (16)	13700	410
80 (3)	350	85	450 (18)	18100	460
100 (4)	770	105	500 (20)	22800	510
125 (5)	1010	130	600 (24)	33000	610
150 (6)	1340	160	700 (28)	45000	710
200 (8)	3440	210	800 (32)	59000	810
250 (10)	4840	260

Flow Characteristic

Approximate linear

Table 1 Body Materials Temperature - Pressure Range

Pressure A- Standard Class working pressure MPa

ANSI Class 900						ANSI Class 600						ANSI Class 300						ANSI Class 150						(℃) Temp.
CF8M	CF8	C5	WC9	WC6	WCB	CF8M	CF8	C5	WC9	WC6	WCB	CF8M	CF8	C5	WC9	WC6	WCB	CF8M	CF8	C5	WC9	WC6	WCB	(℃) Temp.
14.89	14.89	15.51	15.51	15.51	5.32	9.93	9.93	10.34	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.17	5.15	1.90	1.90	2.00	1.98	1.98	1.96	-2938
14.43	14.35	15.51	5.51	15.51	5.04	9.62	9.56	10.34	10.34	10.34	10.02	4.81	4.78	5.17	5.17	5.17	5.01	1.84	1.83	1.95	1.95	1.95	1.92	50
12.66	12.26	15.46	15.46	15.44	13.98	8.44	8.17	10.30	10.30	10.30	9.32	4.22	4.09	5.15	5.15	5.15	4.66	1.62	1.57	1.77	1.77	1.77	1.77	100
11.55	11.10	15.06	15.06	14.92	13.52	7.70	7.40	10.03	10.03	9.95	9.02	3.85	3.70	5.03	5.03	4.97	4.51	1.48	1.42	1.58	1.58	1.58	1.58	150
10.70	10.34	14.58	14.58	14.39	13.14	7.13	6.90	9.72	9.72	9.59	8.76	3.57	3.45	4.86	4.86	4.80	4.38	1.37	1.32	1.38	1.38	1.38	1.38	200
10.01	9.75	13.90	13.90	13.90	12.58	6.68	6.50	9.27	9.27	9.27	8.39	3.34	3.25	4.63	4.63	4.63	4.19	1.21	1.21	1.21	1.21	1.21	1.21	250
9.49	9.27	12.86	12.86	12.86	11.95	6.32	6.18	8.57	8.57	8.57	7.96	3.16	3.09	4.29	4.29	4.29	3.98	1.02	1.02	1.02	1.02	1.02	1.02	300
9.27	9.07	12.40	12.40	12.40	11.61	6.18	6.04	8.26	8.26	8.26	7.74	3.09	3.02	4.14	4.14	4.14	3.87	0.93	0.93	0.93	0.93	0.93	0.93	325
9.27	9.07	12.40	12.40	12.40	11.61	6.18	6.04	8.26	8.26	8.26	7.74	3.09	3.02	4.14	4.14	4.14	3.87	0.93	0.93	0.93	0.93	0.93	0.93	325
9.10	8.89	12.07	12.07	12.07	11.27	6.07	5.93	8.04	8.04	8.04	7.51	3.03	2.96	4.03	4.03	4.03	3.76	0.84	0.84	0.84	0.84	0.84	0.84	350
8.96	8.71	11.65	11.65	11.65	10.91	5.98	5.81	7.76	7.76	7.76	7.27	2.99	2.90	3.89	3.89	3.89	3.64	0.74	0.74	0.74	0.74	0.74	0.74	375
8.83	8.53	10.98	10.98	10.98	10.42	5.89	5.69	7.33	7.33	7.33	6.94	2.94	2.84	3.65	3.65	3.65	3.47	0.65	0.65	0.65	0.65	0.65	0.65	400
8.74	8.40	10.51	10.51	10.51	8.63	5.83	5.60	7.00	7.00	7.00	5.75	2.91	2.80	3.52	3.52	3.52	2.88	0.55	0.55	0.55	0.55	0.55	0.55	425
8.65	8.22	10.14	10.14	10.14		5.77	5.48	6.77	6.77	6.77		2.88	2.74	3.37	3.37	3.37		0.46	0.46	0.46	0.46	0.46		450
8.60	8.08	8.36	9.51	9.51		5.73	5.39	5.57	6.34	6.34		2.87	2.69	2.79	3.17	3.17		0.37	0.37	0.37	0.37	0.37		475
8.47	7.95	6.41	8.47	7.72		5.65	5.30	4.28	5.65	5.15		2.82	2.65	2.14	2.82	2.57		0.28	0.28	0.28	0.28	0.28		500
7.52	7.33	4.11	5.53	4.47		5.00	4.89	2.74	3.69	2.98		2.52	2.44	1.37	1.84	1.49		0.14	0.14	0.14	0.14	0.14		538
		3.61	4.96	3.81				2.41	3.13	2.54				1.20	1.56	1.27								550
		2.67	3.16	2.64				1.78	2.11	1.76				0.89	105	0.88								575

Table 2 Trim Materials Temperature Range

No.	Materials	Temperature ange(℃)	Remark
1	A276 410	-29~427	Heat treatment
2	A959 S17400, 630(17-4PH)	-29~427	Heat treatment
3	A216 WCB	-29~425	Sealing surface welding iron, cobalt or nickel alloy
4	A217 WC6	-29~593	Sealing surface welding iron, cobalt or nickel alloy
5	A217 WC9	-29~593	Sealing surface welding iron, cobalt or nickel alloy
6	A217 C5	-29~540	Sealing surface welding iron, cobalt or nickel alloy
7	A182 F304 A182 F304+STL	-196~300 -196~550	Sealing surface stellite alloy overlay welding are available
8	A182 F316 A182 F316+STL	-196~300 -196~550	Sealing surface stellite alloy overlay welding are available
9	A182 F304L A182 F304L+STL	-196~300 -196~450	Sealing surface stellite alloy overlay welding are available
10	A182 F316L A182 F316L+STL	-196~300 -196~450	Sealing surface stellite alloy overlay welding are available

Note: STL: Stellite alloy overlay welding.

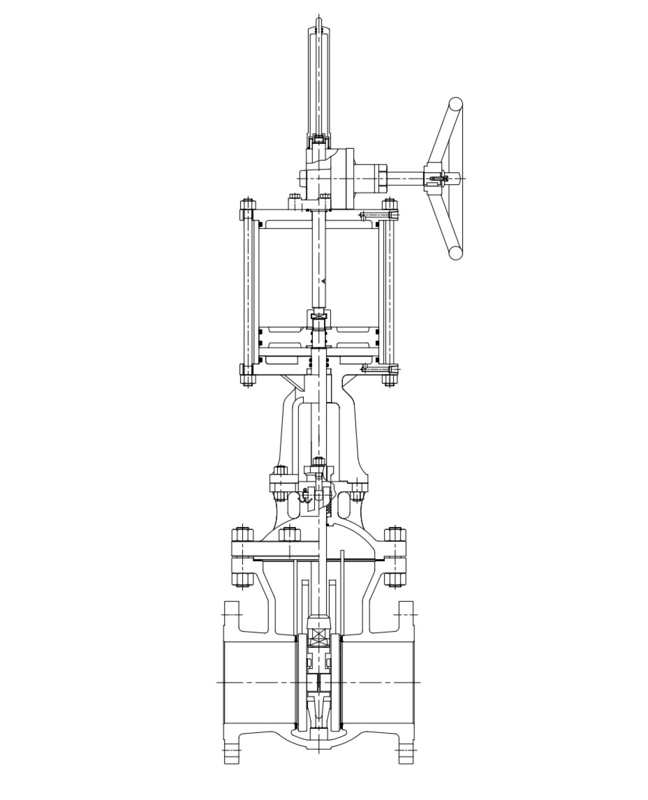

Valve Internal Construction

PN16 25 40 63 100 160 Cast Through Way Parallel Gate Valves 1

Working Principle

The open and close assembly of parallel gate valve is composed of wedge, disc follower and

floating gate among others. The unique part is the parallel double floating gate seal assembly

to replace wedge type gate, the working principle is as followed:

When the parallel gate valve is closed, the output force of the actuator is transported to the disc

follower from the wedge to provide two equal forces to obtain excellent seal performance.

The bevel angle of the wedge is larger than the self-locking

angle of the slope, at the opening it first overcomes the friction force between the wedge and

the disc follower, the stem lifts the wedge, because of its own weight, the disc follower produces

axial setback, therefore no friction in the sealing pair, moreover the gap between all kinds of

components is big, the open action is rapid and no jamming.

In the process of opening and closing, there is sliding friction movement between the wedge

and disc follower, however there is no sliding friction movement between the floating gate and

the seat ring, only loose and tension action, therefore it greatly reduces the friction between the

gate and the seat sealing surface to prolong life span.

The components of the shut-off device are movably connected, because of the fluid pressure,

the gate can self-rotate during the opening and closing process to self-clean the sealing

surface to furthermore prolong sealing and life span. And it can automatically compensate the

deformation and manufacturing error caused by temperature change to prolong sealing life.

In order to eliminate the increasing chamber pressure caused by temperature change, a small

hole is opened on the inlet gate, during the closing process; automatic turn-on between the

chamber and the inlet hole can vent and balance the pressure in the chamber. Moreover

because of the differential pressure on the outlet gate, it can further fits the seat ring and has

reliable sealing performance.

Allowable Pressure Drops MPa

CD500			CD420			CD360			CD300			CD280			CD220			CD160			CD120			Cylinder size
0.5	0.4	0.3	0.5	0.4	0.3	0.5	0.4	0.3	0.5	0.4	0.3	0.5	0.4	0.3	0.5	0.4	0.3	0.5	0.4	0.3	0.5	0.4	0.3	Supply pressure (MPa)
																					4.06	3.08	1.95	40 (11/2)	Valve size mm(inch)
																					2.88	2.03	1.18	②
																					1.82	1.28	0.74	65 (21/2)
																		3.62	2.74	1.86				80 (3)
												7.50	6.00	4.66	4.35	2.92	2.68	2.49	1.87	1.26				100 (4)
												5.26	4.14	3.17	3.39	2.60	1.93	1.55	116	0.77				15
						5.34	4.22	3.26	4.58	3.61	2.17	3.81	2.99	2.17	2.40	1.87	1.25	1.02	0.76	0.49				150 (6)
			4.98	3.95	3.07	3.79	2.99	2.19	3.15	2.48	1.81	2.51	1.97	1.42	1.58	1.22	0.86	0.65	0.47	0.30				200 (8)
			2.93	2.31	1.69	2.10	1.64	1.19	1.72	1.34	0.96	1.34	1.04	0.73										250 (10)
			2.39	1.87	1.35	1.69	1.31	0.94	1.38	1.06	0.75	1.06	0.81	0.56										300 (12)
			1.82	1.42	1.01	1.28	0.99	0.69	1.02	0.79	0.54	0.76	0.59	0.39										350 (14)
			1.31	1.01	0.72	0.91	0.70	0.48																400 (16)
			1.05	0.81	0.58																			450 (18)
			0.85	0.66	0.47																			500 (20)
94	0.73	0.52																						600 (24)
70	0.54	0.38																						700 (28)
54	0.42	0.29																						800 (32)

Air Consumption of One-way Cylinder

Valve size mm(inch)	40 (1½)	50 (2)	65 (2½)	80 (3)	100 (4)	125 (5)	150 (6)	200 (8)	250 (10)	300 (12)	350 (14)	400 (16)	450 (18)	500 (20)	600 (24)	700 (28)	800 (32)
Cylinder diameter (mm)	120	120	160	160	160	220	220	280	300	360	420	420	420	420	500	500	500
Air consumption (L)	0.46	0.56	1.3	1.6	2	4.7	5.7	12	18	31	48	55	62	69	118	137	157

External Dimensions and Weight

PN16 25 40 63 100 160 Cast Through Way Parallel Gate Valves 3

PN16 / ANSI Class150

Weight(kg)¹	d	OB	H1	H	A		Valve size mm(inch)
Weight(kg)¹	d	OB	H1	H	Class 150	PN16	Valve size mm(inch)
35	220	180	570	625	165	200	40 (11/2)
37	220	180	590	655	178	250	50 (2)
57	220	180	700	780	190	270	65 (21/2)
72	260	220	820	920	203	280	80 (3)
90	260	220	860	980	229	300	100 (4)
120	300	290	1020	1170	254	325	125 (5)
132	300	290	1250	1430	267	350	150 (6)
258	350	350	1570	1790	292	400	200 (8)
297	350	350	1800	2080	330	450	250 (10)
420	350	385	2035	2370	356	500	300 (12)
558	350	385	2280	2650	381	550	350 (14)
840	400	450	2500	2950	406	600	400 (16)
	500	610	2540	2990	432	650	450 (18)
	550	610	2750	3250	457	700	500 (20)
	550	610	3080	3680	508	800	600 (24)
	600	715	3570	4270	610	900	700 (28)
	600	715	4270	5070	660	1000	800 (32)

PN25

Weight(kg)¹①	Qd	OB	H1	H	A	Valve size mm(inch)
35	220	180	570	625	200	40 (11/2)
37	220	180	590	655	250	50 (2)
57	220	180	700	780	270	65 (21/2)
72	260	220	820	920	280	80 (3)
90	260	220	860	980	300	100 (4)
120	300	290	1020	1170	325	125 (5)
132	300	290	1250	1430	350	150 (6)
258	350	350	1570	1790	400	200 (8)
297	350	350	1800	2080	450	250 (10)
420	350	385	2035	2370	500	300 (12)
558	350	385	2280	2650	550	350 (14)
840	400	450	2500	2950	600	400 (16)
	500	610	2540	2990	650	450 (18)
	550	610	2750	3250	700	500 (20)
	550	610	3080	3680	800	600 (24)
	600	715	3570	4270	900	700 (28)
	600	715	4270	5070	1000	800 (32)

PN40 / ANSI Class300 mm

Weight(kg)¹	d	OB	H1	H	A		Valve size mm(inch)
Weight(kg)¹	d	OB	H1	H	Class 300	PN40	Valve size mm(inch)
39	220	180	570	625	190	200	40 (11/2)
42	220	180	590	655	216	250	50 (2)
72	220	180	700	780	241	280	65 (21/2)
84	260	220	820	920	283	310	80 (3)
102	260	220	860	980	305	350	100 (4)
135	300	290	1020	1170	381	400	125 (5)
156	300	290	1250	1430	403	450	150 (6)
276	350	350	1570	1790	419	550	200 (8)
306	350	350	1800	2080	457	600	250 (10)
510	350	385	2035	2370	502	650	300 (12)
720	350	385	2280	2650	762	750	350 (14)
1050	400	450	2500	2950	838	850	400 (16)
	500	610	2540	2990	914	1050	450 (18)
	550	610	2750	3250	991	1150	500 (20)
	550	610	3080	3680	1143	1350	600 (24)

PN63 mm

Weight(kg)I	Od	OB	H1	H	A	Valve size mm(inch)
48	260	220	570	625	240	40 (11/2)
78	260	220	590	655	250	50 (2)
93	260	220	700	780	280	65 (21/2)
120	300	290	820	920	310	80 (3)
168	300	290	860	980	350	100 (4)
208	350	350	1020	1170	400	125 (5)
240	350	350	1250	1430	450	150 (6)
336	350	385	1570	1790	550	200 (8)
396	350	385	1800	2080	650	250 (10)
630	400	450	2035	2370	750	300 (12)
810	450	520	2280	2650	850	350 (14)
1140	500	610	2500	2950	950	400 (16)

PN100 / ANSI Class 600 mm

Weight(kg)	Ød	OB	H1	H	A		Valve size mm(inch)
Weight(kg)	Ød	OB	H1	H	Class 600	PN100	Valve size mm(inch)
52	260	220	570	625	241	240	40 (11/2)
82	260	220	590	655	292	250	50 (2)
108	260	220	700	780	330	280	65 (21/2)
126	300	290	820	920	356	310	80 (3)
204	300	290	860	980	432	350	100 (4)
252	350	350	1020	1170	508	400	125 (5)
318	350	350	1250	1430	559	450	150 (6)
426	350	385	1570	1790	660	550	200 (8)
516	350	385	1800	2080	787	650	250 (10)
690	400	450	2035	2370	838	750	300 (12)

PN160 / ANSI 900 mm

Weight(kg)	Od	OB	H1	H	A		Valve size mm(inch)
Weight(kg)	Od	OB	H1	H	Class 900	PN160	Valve size mm(inch)
62	260	220	570	625	305	260	40 (11/2)
94	260	220	590	655	368	300	50 (2)
126	260	220	700	780	419	340	65 (21/2)
188	300	290	820	920	381	370	80 (3)
210	300	290	860	980	457	450	100 (4)
253	350	350	1020	1170	559	525	125 (5)
348	350	350	1250	1430	610	600	150 (6)
456	350	385	1570	1790	737	750	200 (8)

Refers to the weight of PN designated.

Numbering System

Tags:

Control Valves

Servo Valves

Proportional Valve

Ball Valves

Gate Valves

Hydraulic Valve

Butterfly Valves

Check Valves

Industrial Valves

Stainless Steel Valves

Water Valves

PN16 25 40 63 100 160 Cast Through Way Parallel Gate Valves

PN16 parallel gate valves

PN25 parallel gate valves

PN63 gate valves

gate valves,

parallel gate valve,

eccentric rotary valve

Rotary Eccentric Plug Control Valve ANSI Class 150 300 600 Nominal Pressure

Cast Through Parallel Gate Valve DN40 50 65 80 100 125 200 250 300

Double Cylinder Pneumatic Wedge Gate Valves For Petroleum Chemical Industry
