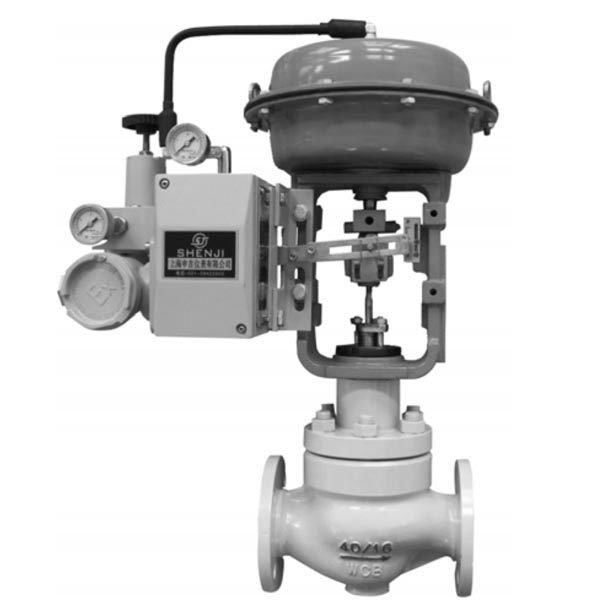

HTS Single Seat Control Valve 40-200mm Nominal Diameter High Precision

Product Details

Place of Origin: China

Brand Name: WEYO

Model Number: HLS

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Packaging Details: Customized packaging to protect products

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Payment Terms: T/T, L/C

Supply Ability: 5000 units per month for small parts. 1000 units per month for large parts

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    HTS single seat control valve, 200mm single seat control valve, 40mm single seated valve


Type:	Straight - Through Single - Seat Cast Globe Valve	Nominal Diameter:	40 - 200mm
Nominal Pressure:	ANSI 125, 150, 300, 600; JIS 10, 16, 20, 30, 40K; PN 1.6, 4.0, 6.4MPa	Connection Type:	Flange Type: FF, RF, RJ And LG (standard According To ANSI B16.5, JIS B2201; JB/T79.1 PN1.6MPa, JB/T79.2); Welding Type: Socket Weld SW (40 - 50mm), Butt Weld BW (65 - 200mm)
Material:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti	Upper Bonnet:	Normal Temperature Type (P): - 17 - + 230℃; Extended I Type (E1): - 45 - - 17℃, + 230 - + 566℃; Extended II Type (E2): Integral Type (E21): - 100 - - 45℃; Welding Type (E2W): - 196 - 100℃
Gland Type:	Bolted Pressure Type	Packing:	V - Type Polytetrafluoroethylene Packing, Impregnated Polytetrafluoroethylene Asbestos Packing, Asbestos Braided Packing

Type:	Straight - Through Single - Seat Cast Globe Valve
Nominal Diameter:	40 - 200mm
Nominal Pressure:	ANSI 125, 150, 300, 600; JIS 10, 16, 20, 30, 40K; PN 1.6, 4.0, 6.4MPa
Connection Type:	Flange Type: FF, RF, RJ And LG (standard According To ANSI B16.5, JIS B2201; JB/T79.1 PN1.6MPa, JB/T79.2); Welding Type: Socket Weld SW (40 - 50mm), Butt Weld BW (65 - 200mm)
Material:	HT200, ZG25, ZG1Cr18Ni9, ZG0Cr17Ni12Mo2, 1.25Cr0.5Mo, 5.0Cr0.5Mo, SCPH21, SCPH61, Ti
Upper Bonnet:	Normal Temperature Type (P): - 17 - + 230℃; Extended I Type (E1): - 45 - - 17℃, + 230 - + 566℃; Extended II Type (E2): Integral Type (E21): - 100 - - 45℃; Welding Type (E2W): - 196 - 100℃
Gland Type:	Bolted Pressure Type
Packing:	V - Type Polytetrafluoroethylene Packing, Impregnated Polytetrafluoroethylene Asbestos Packing, Asbestos Braided Packing

HTS Single Seat Control Valve 40-200mm Nominal Diameter High Precision

HTS Single-seat Control Valve

The HTS single-seat control valve is a control valve with a top-guided structure. The fluid passage of the valve body is in an S - streamline shape, with small pressure drop loss, large flow rate, wide adjustable range, high precision of the flow characteristic curve, large guide area of the valve core, and good anti - vibration performance.

The control valve is equipped with a multi - spring thin - film actuator structure, which is compact in structure and has a large output force. It can be used to control fluids with various different pressures and temperatures.

Inner Valve Components

Valve core type	Upper - guided single - seat cylindrical plug valve core
Flow Characteristics	High - precision flow characteristic, refer to Figure 2; High - capacity flow characteristic, refer to Figure 1; Quick - opening characteristic: Quick - opening valve core
Working range	Working temperature and pressure difference of soft valve seat, refer to Figure 3; Working temperature and pressure difference of Stellite surfacing, refer to Figure 4
Materials	1Cr18Ni9Ti, 0Cr17Ni12Mo2, Stellite surfacing

Actuator

Type	HA multi - spring thin - film actuator
Diaphragm material	Ethylene - propylene rubber nylon
Spring range	0.02 - 0.10, 0.08 - 0.24MPa
Supply pressure	0.14, 0.16, 0.28MPa
Air source connector	Rc 1/4
Ambient temperature	- 30 - + 70℃ (Note: This valve can also be equipped with VA5, VA6 and VP actuators)
Valve action type	Air - to - open type, Air - to - close type
Accessories	Positioner, Handwheel mechanism, Pneumatic valve position transmitter, etc.

Performance

Leakage rate	Metal valve seat: In line with standard ANSI B16.104 IV level, less than 0.01% of the rated Cv; Polytetrafluoroethylene valve seat: In line with standard ANSI B16.104 VI level, less than 10 - 7 of the rated Cv; Stellite surfacing welded valve seat, less than 10 - 7 of the rated Cv (quick - opening valve core)
Hysteresis	1% (with positioner), 3% (without positioner)
Linearity	± 1% (with positioner), ± 5% (without positioner) (Note: Using standard V - type polytetrafluoroethylene packing)
Adjustable range	50:1

Cv Value and Stroke (See Table 1)

Nominal diameter (mm)		40			50			65			80			100			150			200
Valve seat diameter (mm)		25	32	40	32	40	50	40	50	65	50	65	80	65	80	100	100	125	150	125	150	200
Rated Cv value	High - precision valve core	10	17	24	17	24	44	24	44	68	44	68	99	68	99	175	175	275	360	275	360	640
	High - capacity valve core			30			50			85			125			200			420			700
	Quick - opening valve core			35			55			95			135			220			460			720
Rated stroke (mm)	Other valve cores	25						38									50			75
Rated stroke (mm)	Quick - opening valve core	10			13			19						25			30			50

(Note: The flow characteristic of the high - precision metal valve seat conforms to IEC534 - 2)

Flow Characteristic

Equal Percentage Characteristic (%)Figure 1 Flow Characteristic Curve

Figure 2 Flow Characteristic Curve
Actuator	Supply pressure (MPa)	Spring range (MPa)	Positioner	Allowable pressure difference(MPa)
				Cv value
				≤0.25	0.40	0.63	1.0	1.6	2.5	4.0
HA2D (HA2R)	0.14	0.02~0.10	On or off	4.0 10	4.0 6.2	4.0 6.2	3.26	3.26	2.0	2.0
	0.16 (0.28)	0.02~0.10 (0.08~0.24)	On	-	4.0 10	4.0 10	4.0 10	4.0 10	4.0 10	4.0 10
Note: 1. The maximum allowable pressure difference shall not exceed the maximum value specified in the ANSI B16.34 or JIS B2201 standards.

Flange distance refers to Table 3. Unit of Table 3:mm
Nominal diameter	A
	ANSI 125 FF ANSI 150 RF JIS 10K FF RF PN 1.6 MPa	JIS 16K RF	ANSI 300 JIS 20,30K RF PN 4.0MPa	ANSI 600 JIS 40K RF PN6.4 MPa	ANSI 150 RJ	ANSI 300 RJ	ANSI 600 RJ	JIS 20K LG	JIS 30K LG	ANSI 300 LG	ANSI 600 SW,BW
20	184	190	194	206		206	206	198	208	203	206
25	184	193	197	210	197	210	210	198	212	206	210

Actuator	H				φB	C	E
	P	E1	E2
			E21	E2W
HA2D,R	450	600	760	975	267	281	40

Connection form	Nominal pressure	P	E1	E2
				E21	E2W
Flanged type	ANSI 125150 JIS 10K	23	25	28	33
	ANAI 300600 JIS 16203040	24	26	29	34
welding SW		21	23	26	31

Ordering Information

Model
Nominal diameter × Seat diameter
Nominal pressure and flange connection type
Materials of valve body and valve trim, requirements for surface hardening treatment
Type of upper valve bonnet
Flow characteristic
Actuator model, supply pressure
Valve action type
Accessories (positioner, handwheel, pressure reducing valve, etc.)
Special requirements, such as oil-free, copper-free, etc.
Medium name
Normal flow rate and required maximum flow rate
Medium pressure, inlet pressure and outlet pressure at maximum flow rate and minimum flow rate
Medium temperature and specific gravity
Medium viscosity and whether it contains suspension
